Future Mobility Orion II 500 HD Tilting Wheelchair
Speak To An Expert
FREE Shipping
30-Day Return Policy
24/7 Support
FSA/HSA Eligible
Similar Products

The Future Mobility Orion II 500 Tilt-in-Space Wheelchair is a heavy-duty, fully adjustable bariatric wheelchair designed to provide exceptional comfort, pressure relief, and postural support for users weighing up to 500 pounds. Engineered with caregivers and long-term users in mind, the Orion II 500 combines advanced positioning features, durable construction, and outstanding adjustability to help improve independence while promoting proper seating and pressure redistribution.
Designed for individuals who require frequent repositioning throughout the day, the Orion II 500 features a true 25-degree tilt-in-space system that helps redistribute body weight, reduce pressure points, and enhance overall comfort. An optional recline function further expands positioning capabilities, allowing caregivers and users to find the ideal seating angle for relaxation, pressure management, and improved posture.
The chair includes a comprehensive adjustable seating system featuring a two-way contoured padded headrest, Orion adjustable backrest with 1-inch depth adjustment, and a comfortable Prism Ideal Cushion. Adjustable armrests with gel padding, multiple seat widths and depths, and an impressive range of seat-to-floor heights allow the wheelchair to be customized for a wide variety of users.
Built on a durable steel frame, the Orion II 500 offers outstanding strength while maintaining excellent maneuverability. A multi-adjustable axle plate, removable rear wheels with chrome or plastic-coated handrims, adjustable rear anti-tippers, and locking collars provide enhanced stability, performance, and ease of transport. Available rear wheel sizes include 12ā, 20ā, 22ā, or 24ā composite urethane wheels, paired with durable 5ā, 6ā, or 8ā urethane casters for smooth indoor and outdoor mobility.
Ideal for bariatric users in home care, rehabilitation centers, long-term care facilities, and clinical environments, the Future Mobility Orion II 500 delivers premium positioning features at an exceptional value.
Ideal Applications
ā Bariatric mobility
ā Long-term seating
ā Pressure redistribution
ā Postural support
ā Home care
ā Rehabilitation facilities
ā Skilled nursing facilities
ā Assisted living communities
ā Hospitals
ā Individuals requiring advanced positioning
-
Supports Users Up to 500 lbs
Heavy-duty construction provides dependable support for bariatric users. -

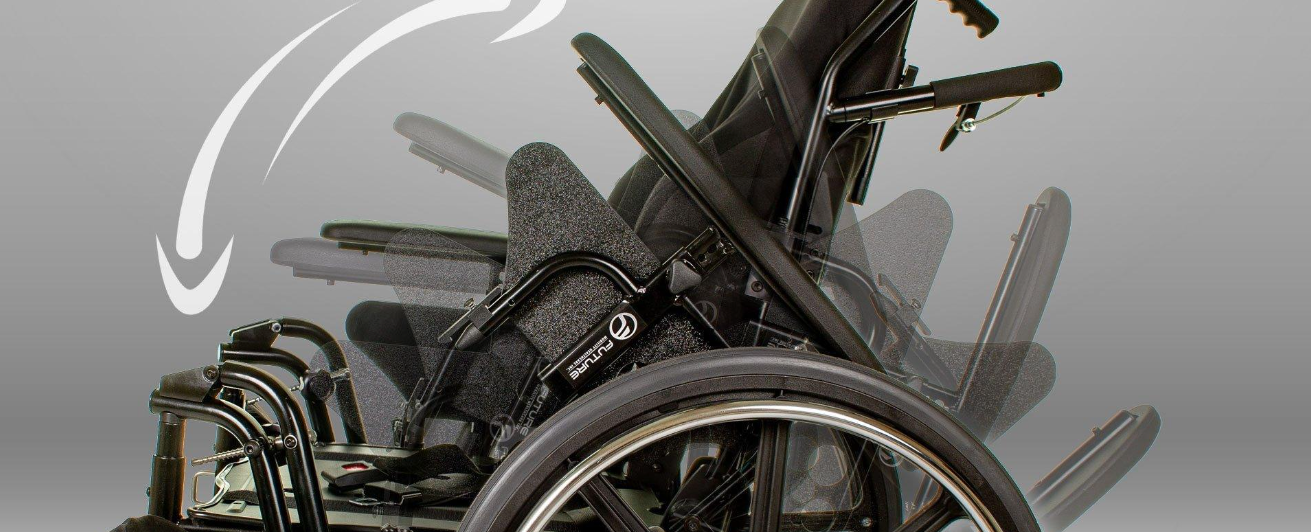

True 25° Tilt-in-Space Positioning
Helps redistribute pressure, improve positioning, and enhance user comfort. -
Optional Recline Function
Provides additional positioning flexibility for comfort and pressure management. -
Adjustable On-Chair Seating System
Allows personalized seating configuration to meet individual user needs. -
Aluminum Seat Pan
Lightweight, durable foundation for reliable seating support. -
Orion Adjustable Back with 1ā Depth Adjustment
Enhances postural support and individualized comfort. -
Two-Way Contoured Padded Headrest
Provides adjustable head and neck support for improved positioning. -
Prism Ideal Pressure-Relieving Cushion Included
Designed to promote comfort and assist with pressure redistribution. -
Adjustable Gel-Padded Armrests
Improve upper body comfort while accommodating various seating positions. -
Multiple Seat Widths from 24āā32ā
Accommodates a wide range of user sizes. -
Seat Depths from 15āā22ā
Allows customized seating depth for improved fit and support. -
Low Seat-to-Floor Height Options
Provides greater flexibility for transfers and positioning. -
Multi-Adjustable Axle Plate
Optimizes wheelchair balance, maneuverability, and performance. -
Removable Rear Wheels
Simplifies transportation, storage, and maintenance. -
Adjustable Rear Anti-Tippers
Enhance wheelchair stability and user safety. -
70° Front Rigging with Heel Loops
Provides secure lower-extremity positioning and support. -
Aluminum or Composite Footplates
Choose the footplate option that best suits user preferences. -
Durable Steel Frame Construction
Engineered for long-term reliability in demanding daily use. -
Available with 12ā, 20ā, 22ā, or 24ā Rear Wheels
Multiple wheel configurations accommodate different mobility needs. -
HCPCS Code: E1161 + K0108
Supports reimbursement documentation for qualifying equipment.
Ā
Ā
Ā
Specifications
| Seat Width | 24" ā 32" |
|---|---|
| Seat Depth | 15" ā 22" |
| Overall Dimensions | 26" Ć 18" (Tilt & Recline), 16.5" Seat-to-Floor Height |
| Chair Height | 15.5" ā 18" |
| Rear Wheels | 12", 20", 22", or 24" Composite Urethane |
| Caster Size | 5", 6", or 8" Urethane |
| Back Style | Orion Back |
| Adjustable Back Angle | -7°, 0°, 7°, 14°, 21° |
| Front Rigging | 70° Standard |
| Weight Capacity | 500 lbs (228 kg) |
| Product Weight | 70 lbs (Excludes Cushion, Back, Armrests, and Front Riggings) |
| Frame Material | Steel |
| HCPCS Code | E1161 + K0108 |
Videos
Ā
Downloads
Ā
FAQs
Frequently Asked Questions (FAQ) ā Future Mobility Orion II 500 Tilt-in-Space Wheelchair
Tap a question below to view the answer.
What is the Future Mobility Orion II 500?
The Future Mobility Orion II 500 is a heavy-duty tilt-in-space wheelchair designed for bariatric users requiring advanced positioning, pressure relief, and long-term seating comfort. It supports individuals weighing up to 500 pounds.
What is the maximum weight capacity?
The Orion II 500 has a 500 lb (228 kg) weight capacity.
What is a tilt-in-space wheelchair?
A tilt-in-space wheelchair changes the userās seating angle while maintaining the same hip, knee, and ankle positioning. This helps redistribute pressure, improve posture, and enhance comfort throughout the day.
How much tilt does the Orion II 500 provide?
The wheelchair features a true 25-degree tilt-in-space system for effective pressure redistribution and positioning.
Is a reclining back available?
Yes. The Orion II 500 is available with an optional reclining backrest, providing additional positioning and comfort options.
Who is this wheelchair designed for?
- Bariatric users
- Individuals requiring pressure relief
- Long-term wheelchair users
- Users needing advanced positioning
- Rehabilitation patients
- Long-term care residents
What seat widths are available?
- 24 inches to 32 inches
What seat depths are available?
- 15 inches to 22 inches
What type of seating system is included?
- Two-way contoured padded headrest
- Orion adjustable backrest
- 1ā back depth adjustment
- Prism Ideal pressure-relieving cushion
Does the wheelchair include a pressure-relieving cushion?
Yes. The Orion II 500 comes standard with a Prism Ideal Cushion.
Is the headrest adjustable?
Yes. The wheelchair includes a two-way adjustable contoured padded headrest for personalized positioning.
Can the back angle be adjusted?
- -7°
- 0°
- 7°
- 14°
- 21°
Are the armrests adjustable?
Yes. The wheelchair features height-adjustable armrests with comfortable gel padding.
What type of frame does the Orion II 500 use?
The wheelchair is built on a durable steel frame designed for long-term strength and stability.
Does the chair have an aluminum seat pan?
Yes. The Orion II 500 includes an aluminum seat pan for strength and durability.
What rear wheel sizes are available?
- 12ā
- 20ā
- 22ā
- 24ā
What caster sizes are available?
- 5ā
- 6ā
- 8ā
Are the rear wheels removable?
Yes. The Orion II 500 features quick-removable rear wheels with chrome or plastic-coated handrims.
Does the wheelchair include anti-tippers?
Yes. It comes standard with adjustable rear anti-tippers to help improve stability and safety.
What type of front rigging is included?
- 70° pin-style front rigging
- Heel loops
- Aluminum or composite footplates
- Locking collars
Is the seat height adjustable?
Yes. The Orion II 500 offers a wide range of seat-to-floor height adjustments, including low seat-to-floor options for easier transfers and improved accessibility.
How much does the wheelchair weigh?
The frame weighs approximately 70 lbs, excluding the cushion, backrest, armrests, and front riggings.
Is the wheelchair customizable?
- Seat width
- Seat depth
- Rear wheel size
- Back angle
- Tilt system
- Recline option
- Armrest height
- Footplate options
- Headrest positioning
What is the HCPCS code?
- E1161
- K0108
Where can the Orion II 500 be used?
- Home care
- Rehabilitation centers
- Hospitals
- Skilled nursing facilities
- Assisted living communities
- Long-term care facilities
Why choose the Future Mobility Orion II 500?
The Future Mobility Orion II 500 Tilt-in-Space Wheelchair combines a 500-pound weight capacity, true 25-degree tilt, optional recline, and a fully adjustable seating system to provide exceptional comfort, pressure relief, and postural support. With durable construction, customizable sizing, and premium positioning features, it is an excellent solution for bariatric users requiring long-term seating, enhanced independence, and superior clinical support.
Warranty
Warranty
The Future Mobility Orion II 500 is warranted to be free from defects in materials and workmanship under normal use by the original purchaser.
Warranty Coverage:
- Frame: Lifetime Limited Warranty
- Wheelchair Components: 1 Year Limited Warranty
- Power Tilt System: 1 Year Limited Warranty
- Power Tilt Batteries: 6 Months
- Control Box: 1 Year
- Battery Charger: 1 Year
- Actuator: 1 Year
- Hand Control: 1 Year
- Upholstery: 90 Days
If a defect in materials or workmanship is found during the applicable warranty period, Future Mobility Healthcare Inc. will, at its discretion, repair or replace the defective component. Warranty coverage applies only to the original purchaser under normal use and does not cover damage resulting from misuse, abuse, unauthorized modifications, or normal wear and tear.

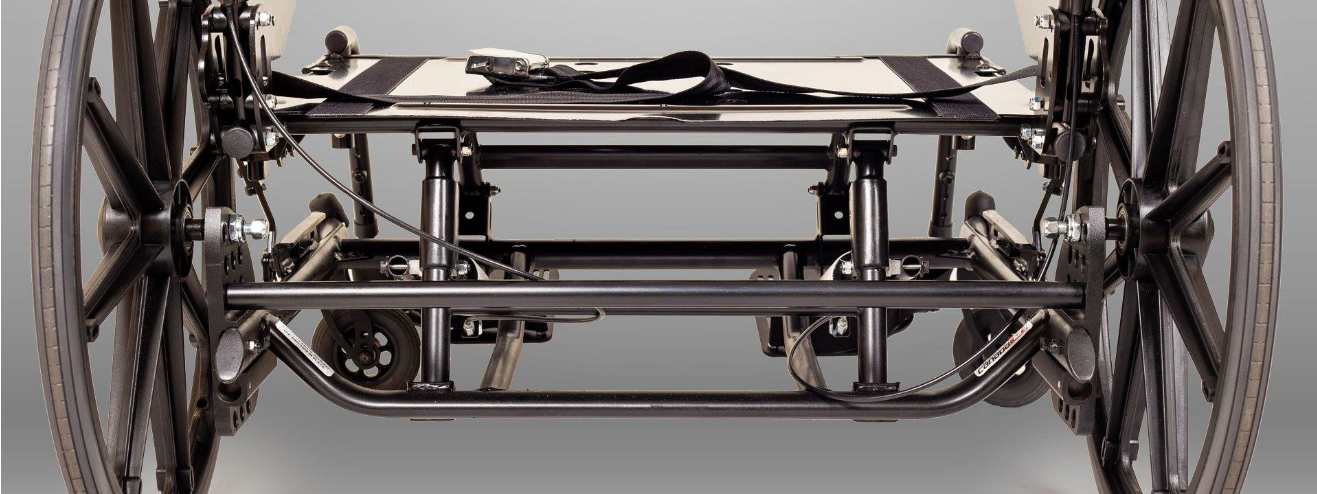

REAR CROSSBAR STABILITY
The integrated rear crossbar reinforces the wheelchairās frame, improving structural rigidity and helping deliver a smoother, more stable ride for increased user confidence and comfort.

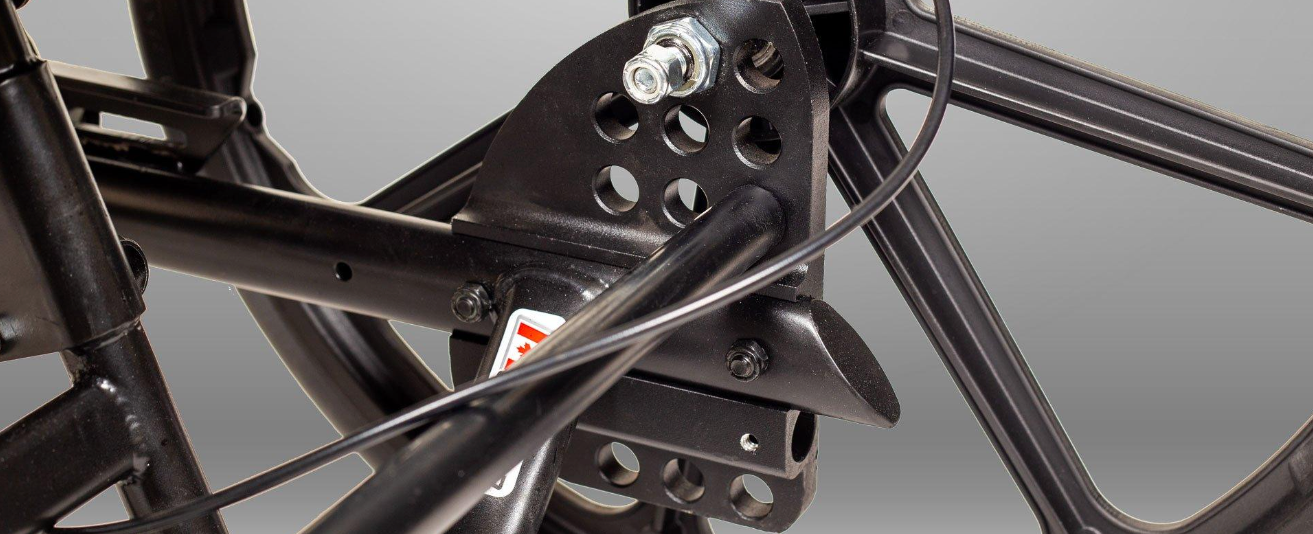

ADJUSTABLE AXLE PLATE
The Adjustable axle plate allows for many seat to floor heights and center of gravity adjustments.

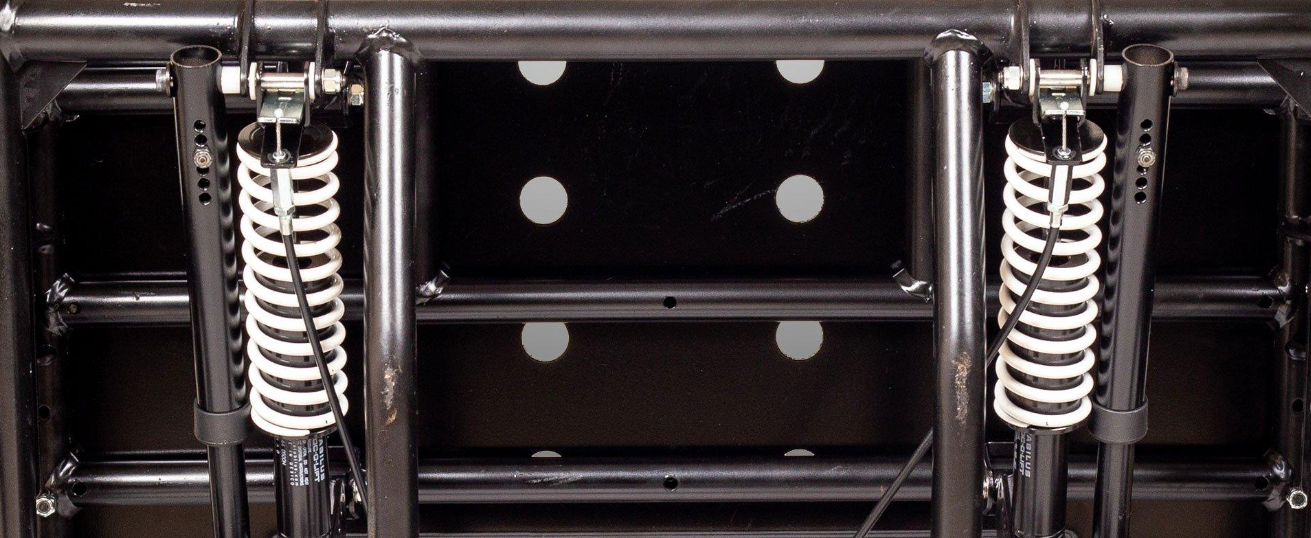

DUAL GAS CYLINDER
Allows for smoother tilt of the wheelchair for both client and caregiver while supporting a weight limit of up to 500 lbs.

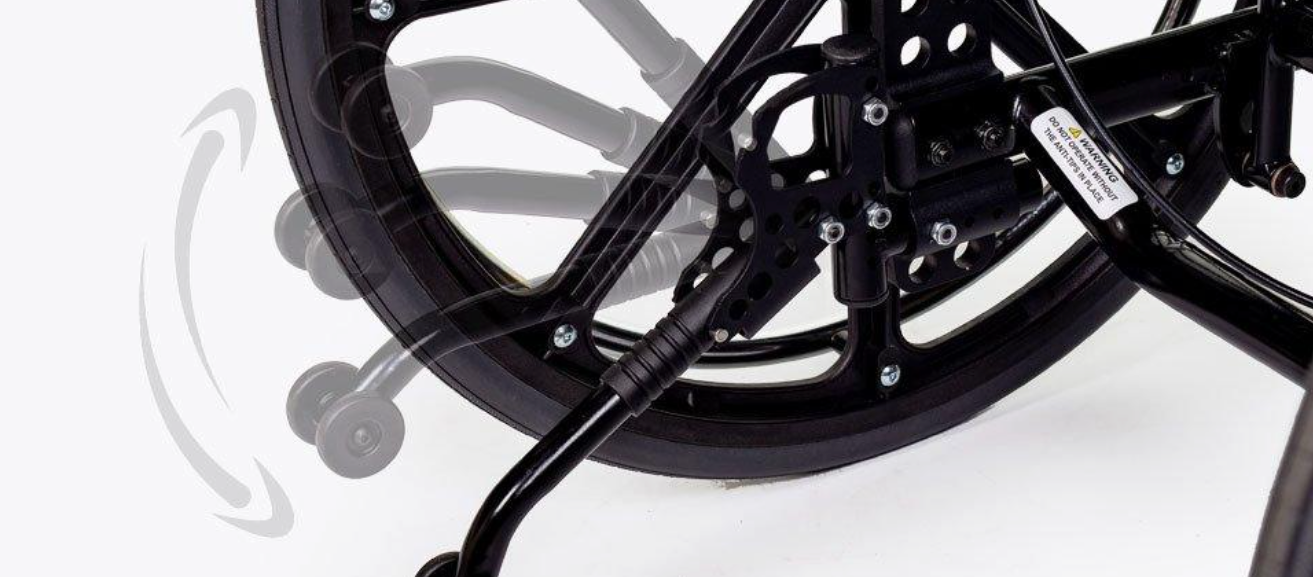

ANTI-TIPPER
Safety is essential. Thatās why we have a fall prevention system designed to protect you or your loved one from harm. With a purchase of every Orion II wheelchair we offer anti-tippers as a standard feature.

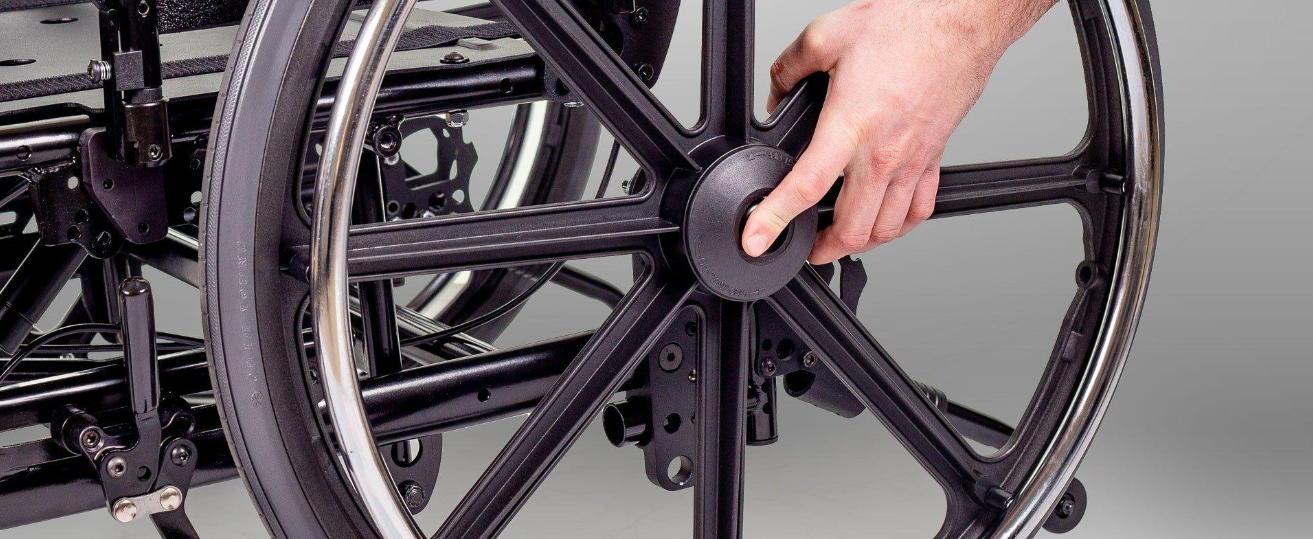

QUICK RELEASE
Quick release axle (Optional). Comes with airless or pneumatic tires available with steel or plastic coated handrims.

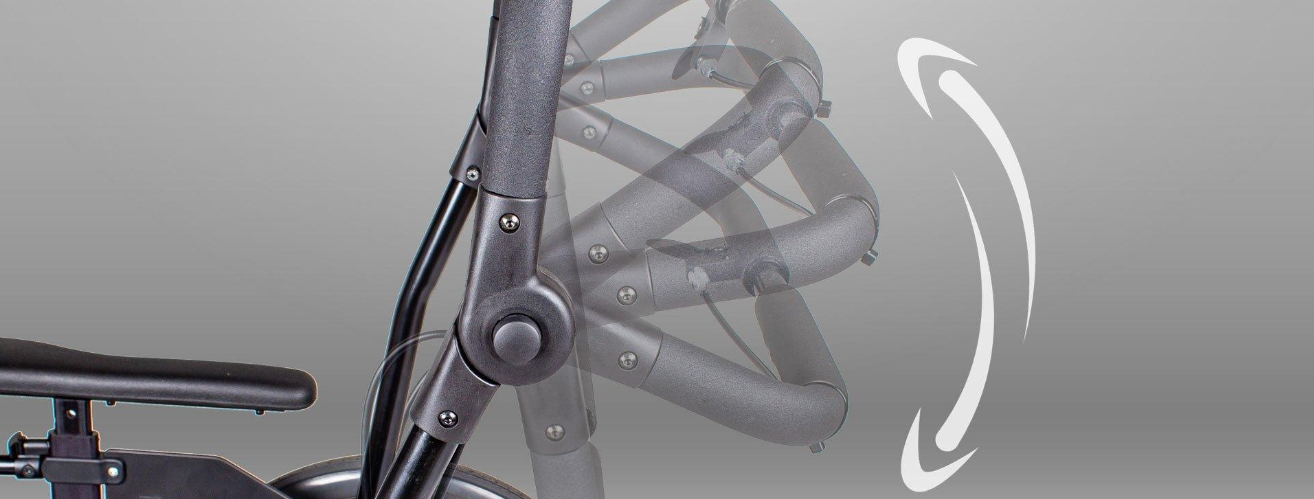

ARMREST
We offer a variety of armrest options, ensuring youāll feel comfortable and well-supported when using our wheelchairs. Available in Flip-up, height adjustable, and/or fixed style.

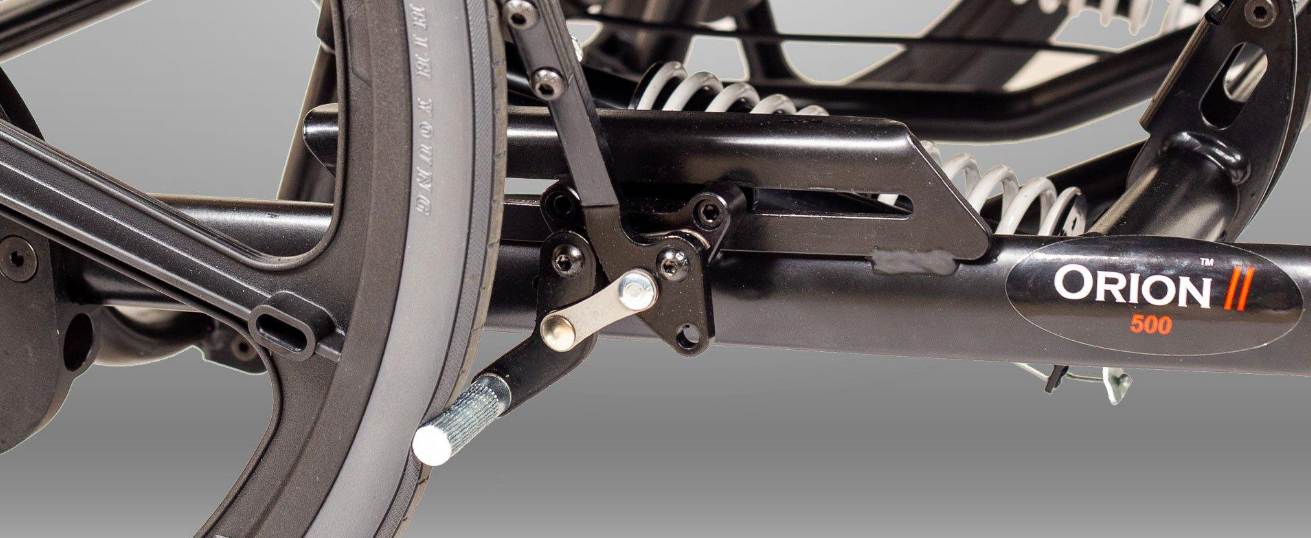

PUSH PULL WHEEL LOCK
Wheel locks are available in both push or pull to lock options. A Brake extension is built into the handle.
ATTENDANT TRIGGER TILT
This allows attendants of the user to tilt the wheelchair easily.

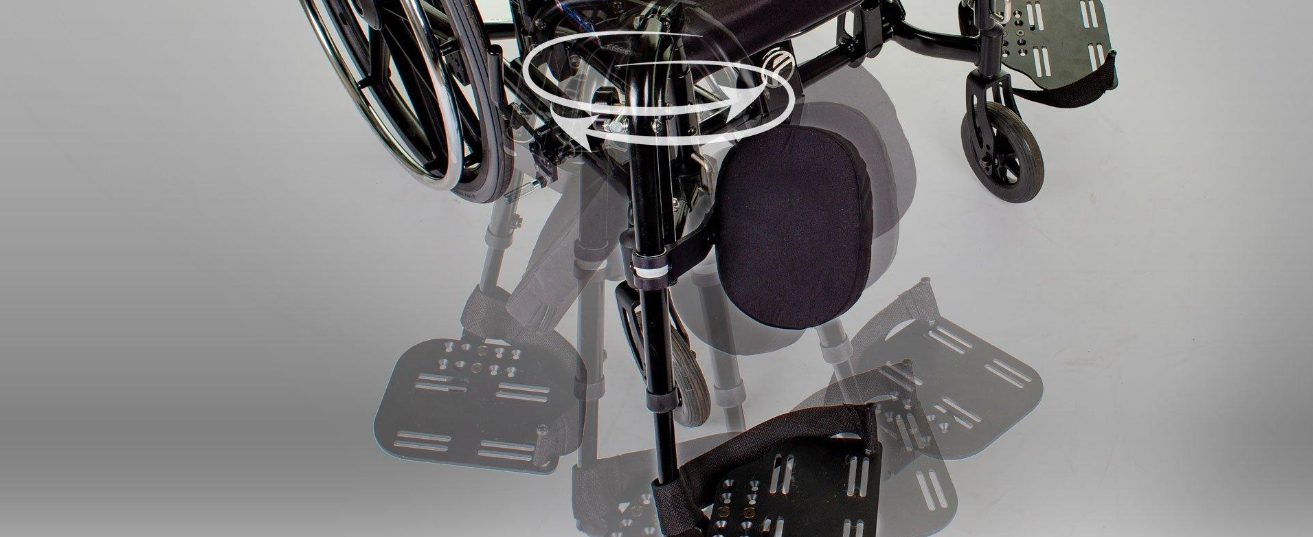

SWINGAWAY FRONT RIGGINGS
Swingaway Front Riggings have the option of swing-out or dual swing-in and swing-out. Ideal when transporting and situating the client.

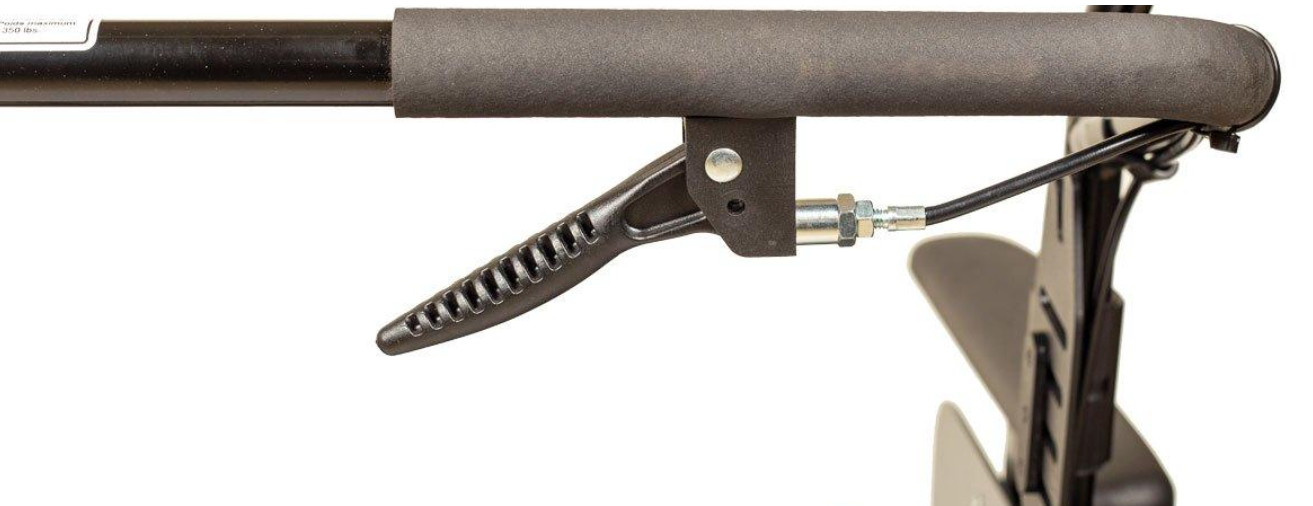

HANDLES TRIGGER
Trigger handles for tilting the wheelchair.
