High Weight Capacity
Built to accommodate a wide range of users, this lift supports up to 500 lbs or 600 lbs, ensuring safe and reliable performance in bariatric and standard care environments.
In stock
Couldn't load pickup availability

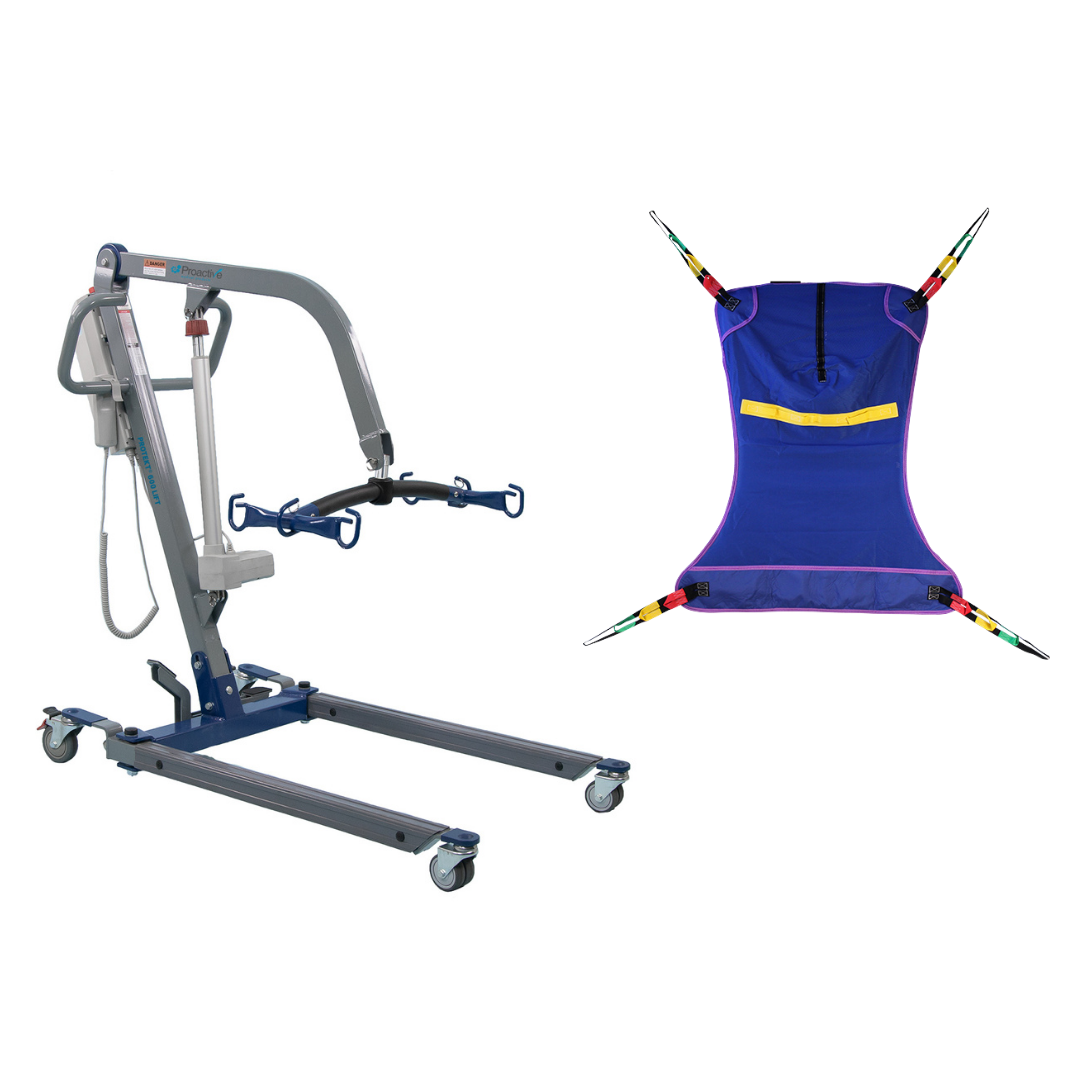

The Protekt® 600 Lift delivers exceptional performance, combining strength, reliability, and ease of use to support safe patient transfers in any care environment. This electric, high-capacity lift provides an efficient and secure way to move patients—helping prevent injuries for both caregivers and residents.
Engineered with facility needs in mind, the compact base design slides easily under most low-height beds and enables full floor-level lifting, making it an excellent choice for smaller rooms and challenging transfer spaces. Medicare Code: E0635
Built to accommodate a wide range of users, this lift supports up to 500 lbs or 600 lbs, ensuring safe and reliable performance in bariatric and standard care environments.
The 6-point spreader bar enhances sling compatibility and improves patient comfort by promoting safer, more controlled lifting and positioning.
Designed for emergencies and fallen-patient retrieval, this lift offers full floor lift functionality for maximum versatility in patient handling.
An ergonomic foot pedal allows caregivers to adjust the base width hands-free, improving positioning efficiency and reducing strain.
Features a manual emergency lowering option for safe operation during power loss, ensuring reliable patient protection at all times.
Equipped with dual rear locking casters and smooth-rolling wheels—4” rear casters with brakes and 3” dual front casters—for improved control and maneuverability.
The clip-free sling connection design reduces risk and minimizes downtime, helping ensure consistent and secure patient transfers.
Built with a modular design that simplifies servicing, part replacement, and long-term maintenance—reducing overall cost of ownership.
Includes auxiliary up/down controls to ensure dependable operation and enhance caregiver confidence during lifts.
An integrated weighing scale (optional) allows for efficient, in-lift patient weighing without additional equipment.
3 Years of coverage for the structural frame.
2 Years of protection for the lift’s electrical components.
1 Year warranty on the rechargeable battery system.




| Size | Low Weight (lbs) | High Weight (lbs) | Range (lbs) | Height Range |
|---|---|---|---|---|
| Small (S) | 75 | 150 | 75 lbs. | 59” – 64” |
| Medium (M) | 125 | 200 | 125 lbs. | 63” – 68” |
| Large (L) | 175 | 300 | 175 lbs. | 67” – 72” |
| Extra Large (XL) | 275 | 500 | 225 lbs. | 71” – 76” |
| Extra Extra Large (XXL) | 350 | 600 | 250 lbs. | Determine PRN |
Choosing the correct sling—and ensuring it is fitted properly before lifting—is essential for the safety of both the patient and the caregiver. This guide is designed to assist caregivers, clinicians, and equipment managers in selecting the appropriate sling on a patient-by-patient basis. It highlights key factors to consider when determining sling type, fit, and compatibility. Proactive Medical is committed to ensuring that every patient transfer is performed effectively, safely, and with confidence.
This sling size guide provides general recommendations only.
A full clinical risk assessment must be completed before selecting any sling to ensure the safest and most appropriate choice for each patient.
| Specification | Details |
|---|---|
| SPECIFICATION FOR: Item #33600 | |
| Weight Capacity | 600 lbs |
| Unit Weight | 126.5 lbs |
| Base Length | 47.3" |
| Base External Width (Closed) | 26.4" |
| Base External Width (Opened) | 39.3" |
| Mast Height | 51.3" |
| Front Caster Height | 4.9" |
| Lifting Height (Lowest) | 22.8" |
| Lifting Height (Highest) | 68.6" |
| Turning Diameter (Base Opened) | 63.4" |
| Turning Diameter (Base Closed) | 58.4" |
| Accessories | |
| Optional Digital Scale | Item #30300 |
| Battery | LP-TC12-BPAK |
| Charger (Plug) | LP-TP7C-ADP |
| Charging Cradle (No Plug) | LP-TBC2-CRDL |
| Hand Pendant | LP-TH10-PEN |
| Specification | Details |
|---|---|
| SPECIFICATION FOR: Item #33500 | |
| Weight Capacity | 500 lbs. |
| Unit Weight | 109 lbs. |
| Base Length | 47.3” |
| Base External Width (Closed) | 26.4” |
| Base External Width (Opened) | 39.3” |
| Mast Height | 51.3” |
| Front Caster Height | 4.9" |
| Lifting Height (Lowest) | 28.7” |
| Lifting Height (Highest) | 71.3” |
| Turning Diameter (Base Opened) | 62.8" |
| Turning Diameter (Base Closed) | 58.3" |
| Accessories | |
| Optional Digital Scale | Item #30300 |
| Battery | LP-TC12-BPAK |
| Charger (Plug) | LP-TP7C-ADP |
| Charging Cradle (No Plug) | LP-TBC2-CRDL |
| Hand Pendant | LP-TH10-PEN |
Download The Sling Reference Guide
The Protekt® 600 supports up to 600 lbs, making it suitable for both bariatric and non-bariatric users who require safe, stable lifting.
Yes. This lift is fully capable of lifting patients safely from the floor, a key feature for fall-recovery and emergency situations.
The lift uses a 6-point spreader bar, supporting multiple sling styles and configurations for comfortable, safe transfers. Always confirm sling compatibility per manufacturer guidelines.
Yes. Its low-profile base is designed to slide smoothly under most low beds, making it ideal for tight or low-clearance environments.
Yes. The foot pedal allows hands-free base opening and closing for safe and stable positioning during patient transfers.
The Protekt® 600 includes a manual emergency lowering feature, ensuring patient safety even in the event of a power outage.
Yes. It features dual rear locking casters for secure transfers and smooth-rolling 4” rear / 3” dual front casters for easy maneuverability.
Yes. The Protekt® 600 uses clip-free sling hook-ups, reducing misuse risk and improving overall safety and efficiency.
Yes. A digital scale can be added as an upgrade, allowing caregivers to weigh patients directly while using the lift.
The modular design makes maintenance easy—individual components can be replaced without servicing the entire lift.
The lift includes advanced electronics plus auxiliary up/down controls, giving caregivers multiple options for safe and convenient operation.
Frame: 3 years
Electronics: 2 years
Battery: 1 year
Yes. It is suitable for both homecare and facility settings, especially for individuals requiring higher weight capacities or safe floor-level lifting.
Warranty
• Frame: 3 Years
• Electronics: 2 Years
• Battery: 1 Year
