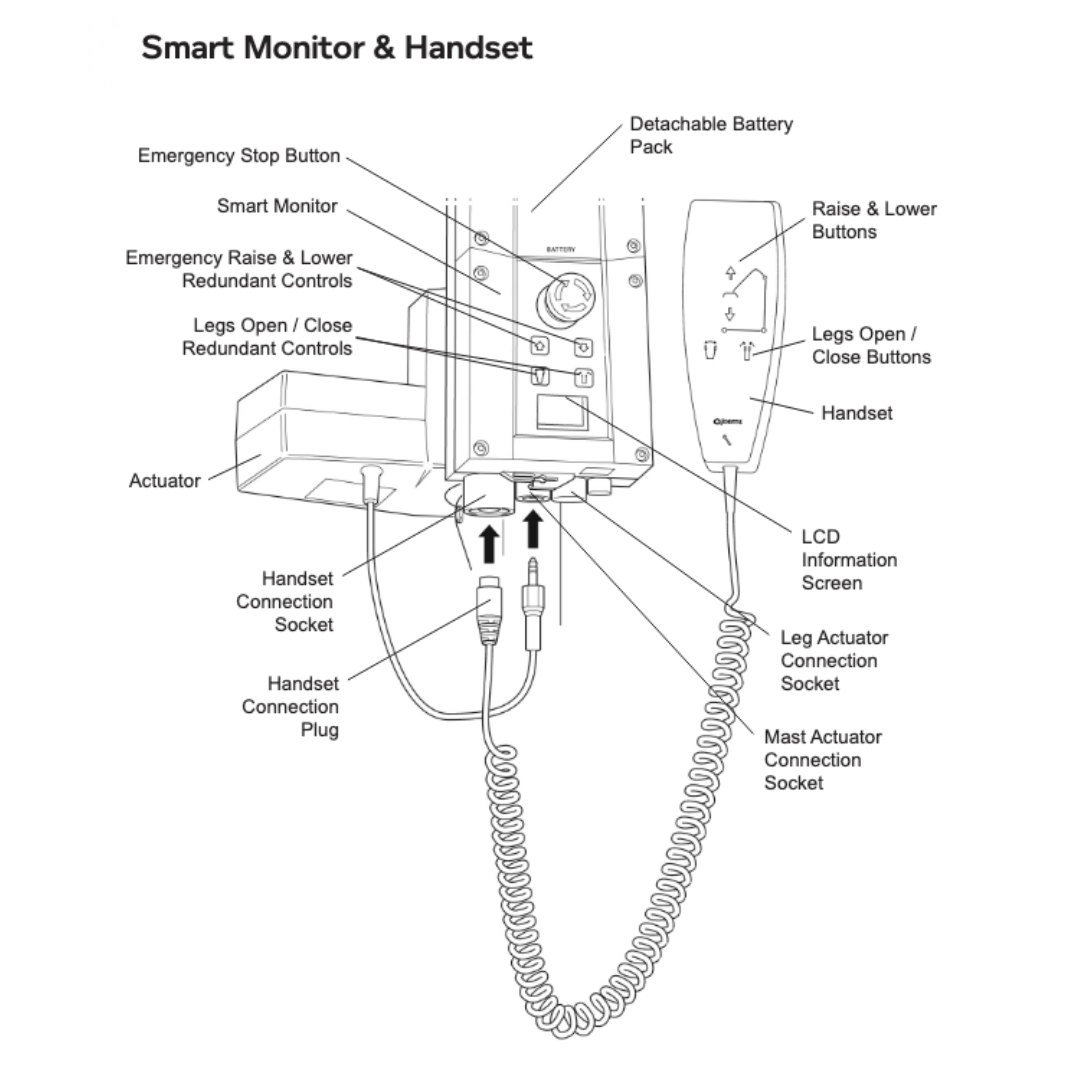

Smart Monitor™ Technology
Integrated Smart Monitor™ system tracks lift usage and provides service reminders to promote compliance, enhance safety, and extend the lift’s lifespan.
In stock
Couldn't load pickup availability

The Elevate® is a thoughtfully engineered active lift that enhances the transfer experience for both caregivers and patients. With a safe working load of 440 lbs, it combines compact design and durable construction to deliver reliable performance in any care setting.
Equipped with Smart Monitor™ technology, the Elevate tracks actual lift usage and provides service reminders—promoting routine maintenance and ensuring optimal operation over time.
Integrated Smart Monitor™ system tracks lift usage and provides service reminders to promote compliance, enhance safety, and extend the lift’s lifespan.

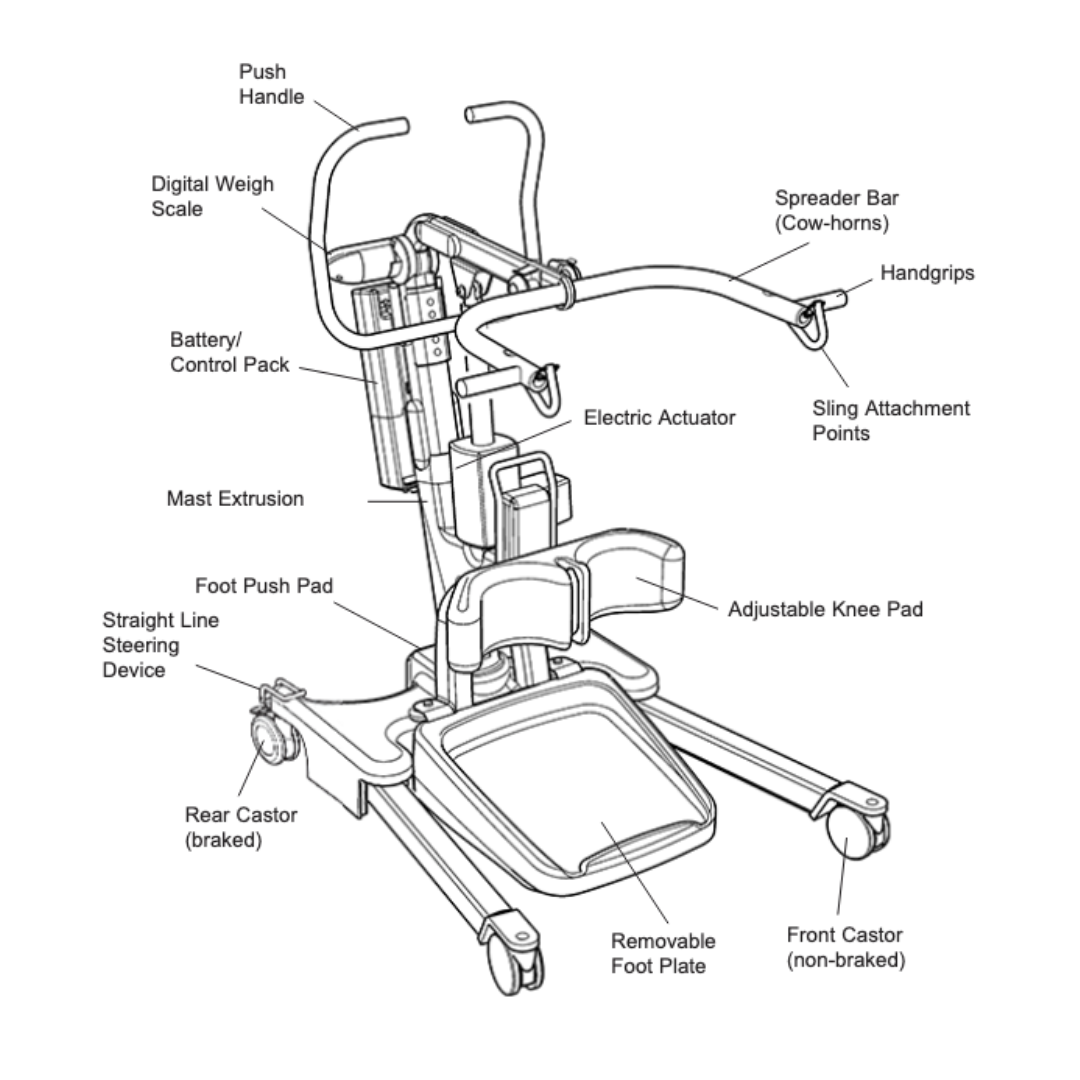

The ergonomic push pad design helps initiate movement with minimal effort, improving maneuverability and reducing caregiver strain.
Features an infinitely adjustable kneepad for customized support and comfort, allowing one-hand height adjustment during setup or use.
The angled foot tray improves stability and patient positioning, while its removable design allows for easy cleaning and maintenance.
Available on select models, the integrated scale measures patient weight during transfers, combining lifting and weighing in one seamless operation.
440 lbs / 200 kg
43.3 in / 1100 mm
41.0 in / 1040 mm
65.5 in / 1665 mm
48.4 in / 1230 mm
39.2 in (min) – 64.7 in (max) / 995 mm – 1644 mm
48.2 in / 1225 mm
Tested to EN ISO 10535 — the international standard ensuring the highest level of safety and performance for patient lifts.
Designed with caregiver safety and ease of use in mind, it features an intuitive spring-loaded kneepad adjustment lever and a rubber push pad to help initiate lift movement with minimal effort, reducing strain.
The Elevate is also available with or without an integrated weigh scale. The optional scale includes a digital display and simple controls, making weight monitoring easy and accurate during transfers.






| Specification | Details |
|---|---|
| Safe Working Load | 440 lbs |
| Maximum Overall Length | 43.3″ |
| Minimum Overall Length | 41.0″ |
| Maximum Overall Height | 65.5″ |
| Minimum Overall Height | 48.4″ |
| Maximum Height to Attachment Point | 64.7″ |
| Minimum Height to Attachment Point | 39.2″ |
| Turning Radius | 48.2″ |
| Legs Open – External Width | 39.1″ |
| Legs Open – Internal Width | 34.3″ |
| Legs Closed – External Width | 24.8″ |
| Legs Closed – Internal Width | 20.0″ |
| Widest Point (Between Support Handles) | 29.0″ |
| Overall Height of Legs | 4.7″ |
| Ground Clearance | 1.4″ |
| Front Twin Casters | 4″ |
| Rear Braked Casters | 4″ |
| Weights | |
| Mast, Base & Boom Assembly (with scale) | 130.1 lbs |
| Mast, Base & Boom Assembly (without scale) | 129 lbs |
| Power Pack | 6.6 lbs |
| Total (with scale) | 136.7 lbs |
| Total (without scale) | 135.6 lbs |
| Base Assembly (without battery) | 40.8 lbs |
| Mast & Boom (with scale) | 66.1 lbs |
| Mast & Boom (without scale) | 65 lbs |
| Foot Tray | 23.1 lbs |
| Electrical Specifications | |
| Battery Type | 24V Rechargeable Sealed Lead Acid |
| Battery Capacity | 3.2 Ah |
| Charger Input | 100–240V AC / 24V DC, 50–60Hz |
| Charger Output | 29.5V DC / Max 19W |
| Electric Shock Protection (Charger) | Class II |
| Lift Power Source | Internal Power Source |
| Shock Protection Type | Type B |
| Environmental Conditions | |
| Operating Temperature | 41°F – 95°F |
| Relative Humidity (Operating) | 20% – 90% (non-condensing) |
| Storage Temperature | 41°F – 122°F |
| Relative Humidity (Storage) | 20% – 90% (non-condensing) |
| IP Ratings & Duty Cycle | |
| Control Box | IPX4 |
| Actuator | IPX4 |
| Off-Board Charger | IPX5 |
| Battery | IPX5 |
| Handset | IPX5 |
| Actuator Duty Cycle | 10% (2 min ON / 18 min OFF) |
| Charger Time | Approx. 4 hrs |
| Acoustics | |
| Sound Power Level | 55.6 dB (A) |
This warranty applies to HoyerPro® Lifts only. It does not cover other models such as HML400, HPL700, HPL700WSC, HPL402, C-HLA, and their variations.
Mechanical & Electrical Components: Covered for two years from the date of delivery under normal use and service.
Aluminum Structural Components & Welds: Covered for the lifetime of the product from the delivery date.*
*Subject to standard warranty exclusions below.
This warranty does not cover:
Damage due to improper environmental conditions
Failure to maintain the product per user/service instructions
Unauthorized modifications, repairs, or alterations
Wear Items (e.g., batteries, casters, hydraulic pumps): Covered for 90 days from date of delivery
Warranty replacement parts: Covered until the expiration of the product’s original warranty period
Return of parts for inspection is required upon request (customer expense). Credit issued upon inspection approval.
Most service issues can be resolved by the facility’s Maintenance Department with guidance from Joerns Healthcare’s Product Service Team.
Parts are available and can be shipped next-day air (shipping charges apply).
If an on-site technician is needed, Joerns Healthcare may dispatch one at its discretion. Only our Product Service Department may authorize service calls.
This warranty is extended to the original purchaser of the equipment.
