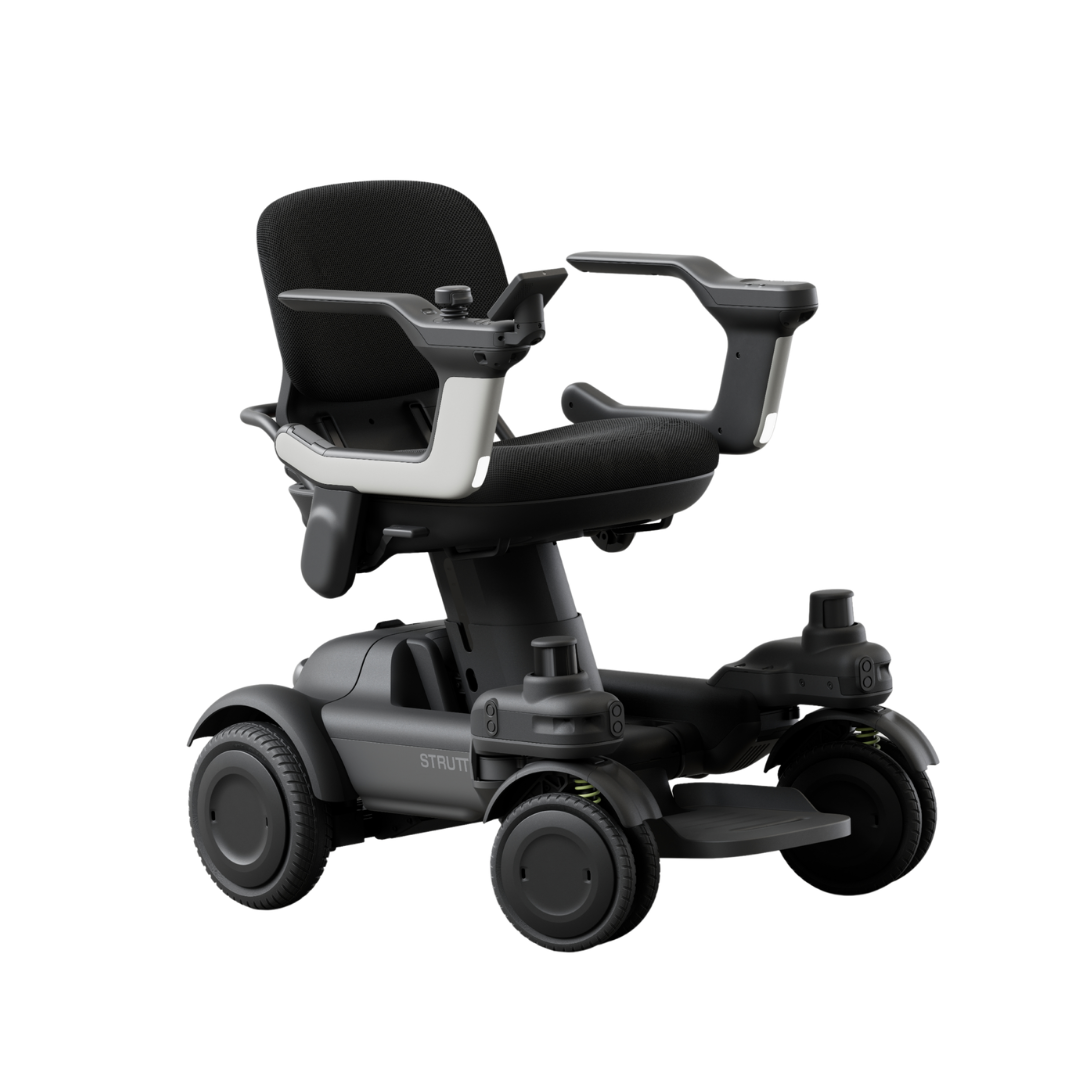

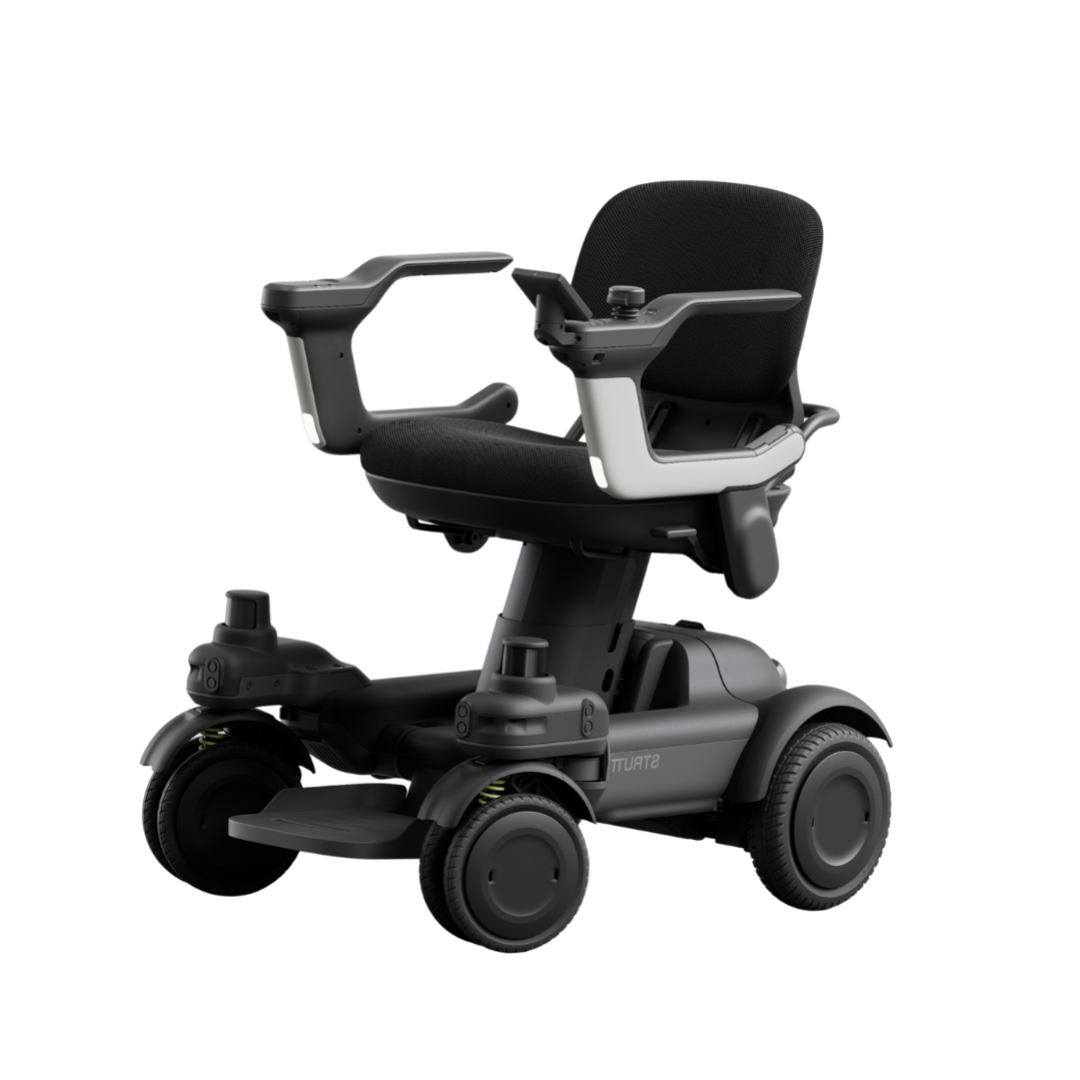

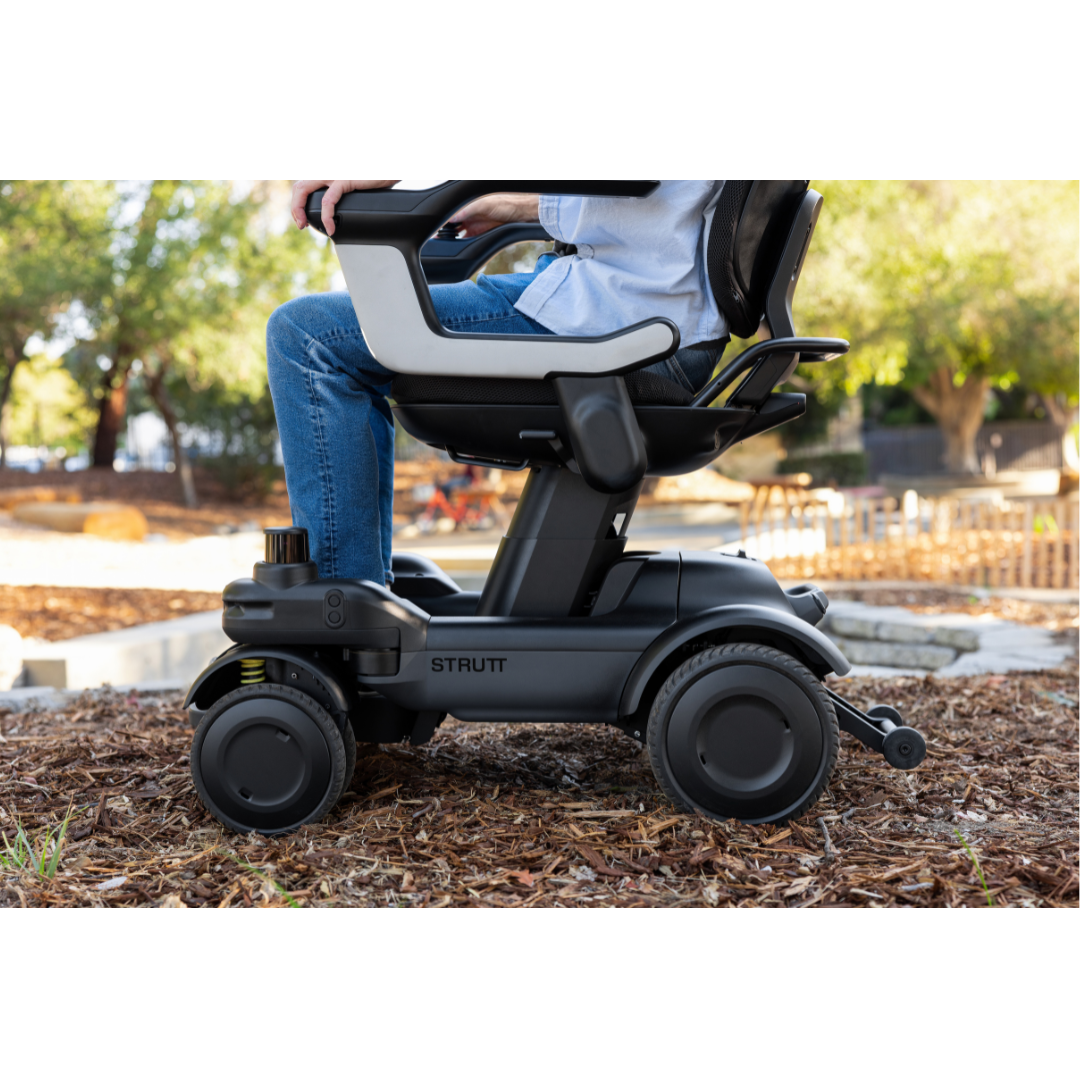

STRUTT Electric Vehicle ev1 | Drive Smarter with Guided Sensors
In stock
Couldn't load pickup availability
Speak To An Expert
FREE Shipping
30-Day Return Policy
24/7 Support
FSA/HSA Eligible
Similar Products
Specifications
| Device Parameters | |
|---|---|
| Device Dimensions (L x W x H) | Imperial: 41.2″ x 23″–26″ x 34.3″–38.7″ Metric: 1,046 x 584–660 x 872–982 mm |
| Weight Without Battery | Approximately 63.8 kg (140.7 lbs.) |
| Heaviest Piece Weight | Approximately 19.8 kg (43.7 lbs.) |
| Working Temperature | -10–45 °C (14–113 °F) |
| Waterproof Rating | IPX5 |
| Altitude Range | 0–5,000 m (approximately 0–16,404 ft.) |
| Seating and Adjustability | |
| Seat Width | Level 1: Approximately 442 mm (17.4″) Level 2: Approximately 480 mm (18.9″) Level 3: Approximately 518 mm (20.4″) |
| Seat Angle | 5° |
| Seat Height | Level 1: Approximately 400 mm (15.7″) Level 2: Approximately 420 mm (16.5″) Level 3: Approximately 440 mm (17.3″) Level 4: Approximately 460 mm (18.1″) Level 5: Approximately 480 mm (18.9″) Level 6: Approximately 500 mm (19.7″) |
| Seat Cushion Width | Approximately 462 mm (18.2″) |
| Seat Cushion Depth | Approximately 460 mm (18.1″) |
| Armrest Height | Level 1: Approximately 220 mm (8.7″) Level 2: Approximately 240 mm (9.4″) Level 3: Approximately 260 mm (10.2″) |
| Flip-Up Armrests | Yes |
| Back Support Angle | Level 1: 13° Level 2: 16° Level 3: 19° |
| Back Support Height | Level 1: Approximately 350 mm (13.8″) Level 2: Approximately 375 mm (14.8″) Level 3: Approximately 400 mm (15.7″) Level 4: Approximately 425 mm (16.7″) |
| Screen Angle | Level 1: -30° Level 2: 0° Level 3: 30° |
| Weight Capacity | Approximately 160 kg (350 lbs.) |
| Driving Performance | |
| Driving Range | 32 km (20 miles) with evSense deactivated 26 km (16.2 miles) with evSense activated |
| Maximum Speed | Level 1: 1.6 km/h (1 mph) Level 2: 3.2 km/h (2 mph) Level 3: 4.8 km/h (3 mph) Level 4: 6.4 km/h (4 mph) Level S: 12.9 km/h (8 mph) |
| Ground Clearance | 80 mm (approximately 3.1″) |
| Obstacle Clearance | 50 mm (approximately 2″) |
| Turning Radius | 780 mm (approximately 30.7″) |
| Maximum Incline | Approximately 13°; maximum speed is limited according to the slope |
| Front Wheel | Actuated Steering |
| Front Wheel Tire | Solid Tire, approximately 203 mm (8″) |
| Rear Wheel | Rear-Wheel Drive |
| Rear Wheel Tire | Solid Tire, approximately 254 mm (10″) |
| Suspension | Four-Wheel Independent Suspension |
| Intelligent Driving | |
| Intelligent Sensors | LiDAR Sensors: 2 ToF Sensors: 10 Ultrasonic Sensors: 6 Cameras: 2 |
| Intelligent Driving | Yes |
| Additional Specifications | |

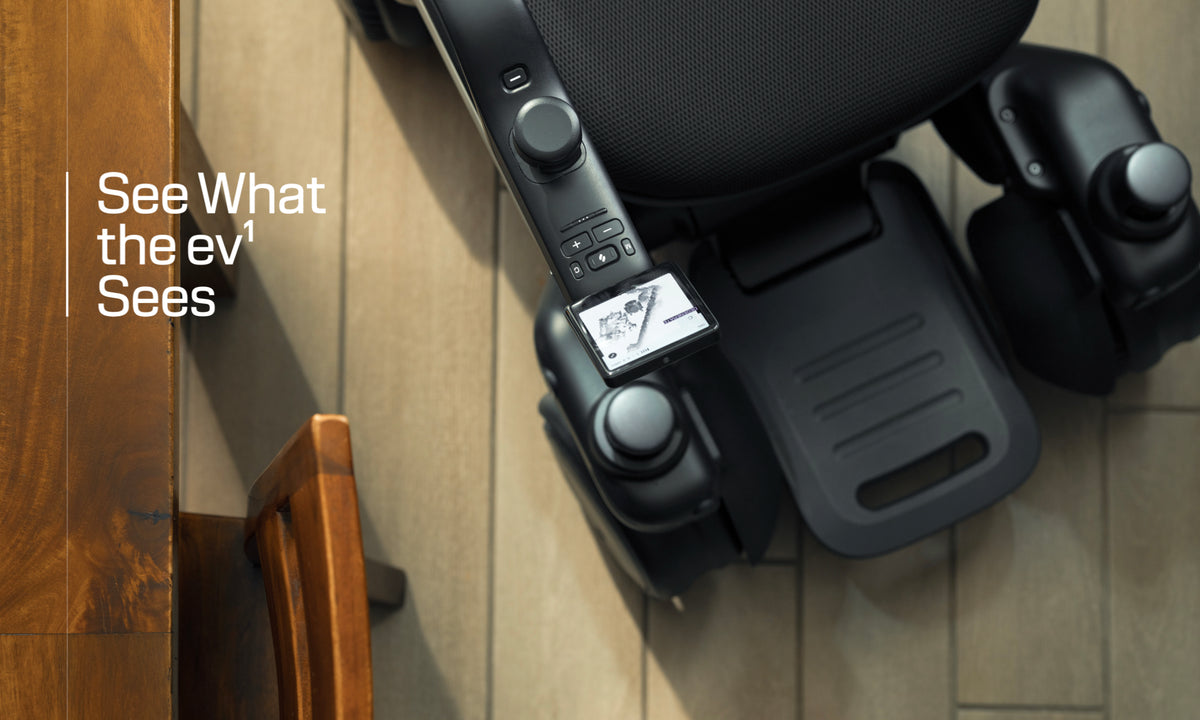

| Display | 4-Inch LCD Display Brightness: 1,000 Nits |
| Backup Camera | Yes |

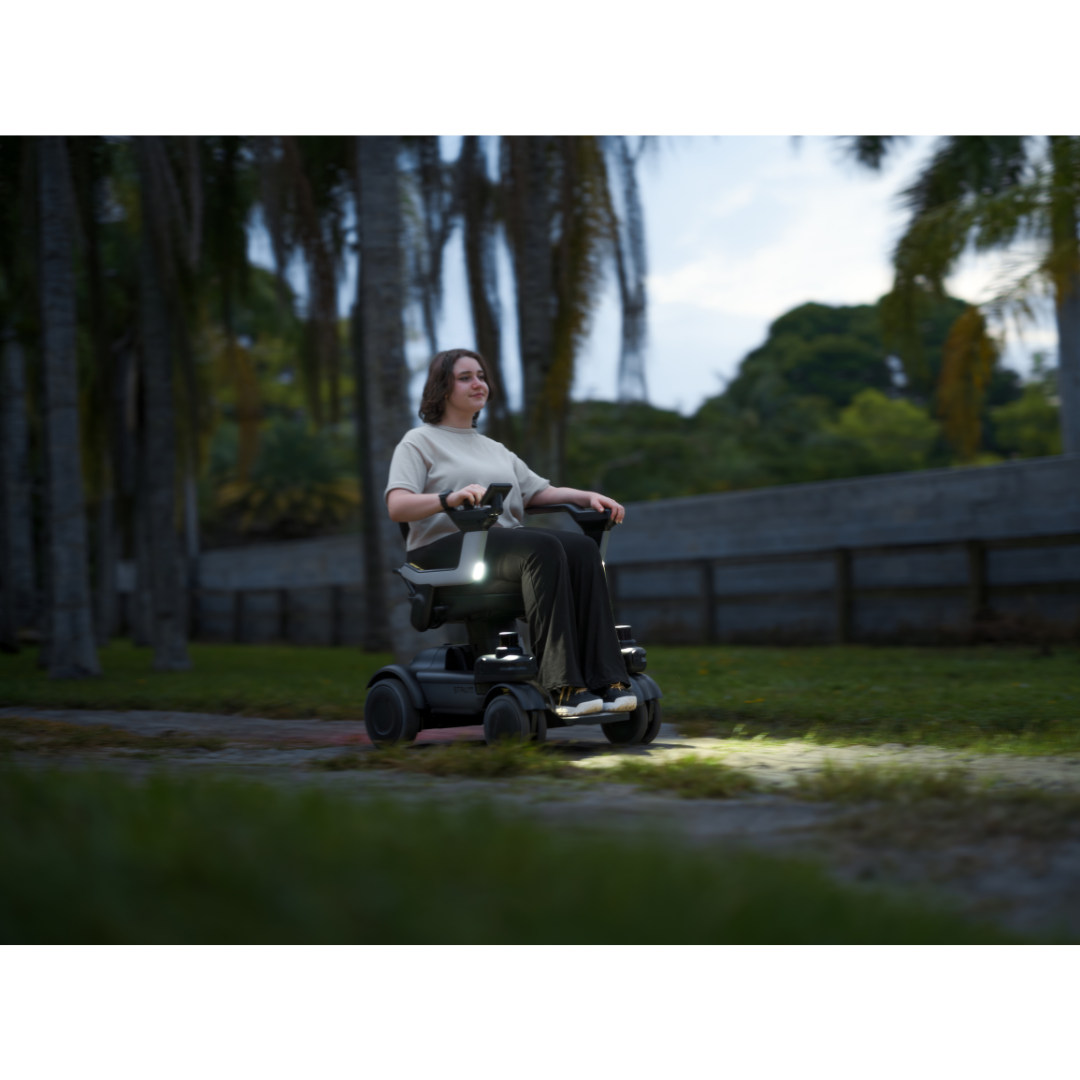

| Headlight | Yes |
| Freewheel Mode | Yes |
| USB Type-C Output | PD Protocol: 5 V / 3 A, 9 V / 3 A, 12 V / 2.5 A |
| Device Package | |
| Package Dimensions (L x W x H) | Package A: 700 x 558 x 482 mm (27.48″ x 21.97″ x 18.98″) Package B: 716 x 650 x 480 mm (28.19″ x 25.59″ x 18.86″) Package C: 754 x 620 x 490 mm (29.69″ x 24.41″ x 19.29″) |
| Package Total Weight | Package A: 29.5 kg (65 lbs.) Package B: 30.5 kg (67.2 lbs.) Package C: 24.3 kg (53.6 lbs.) |

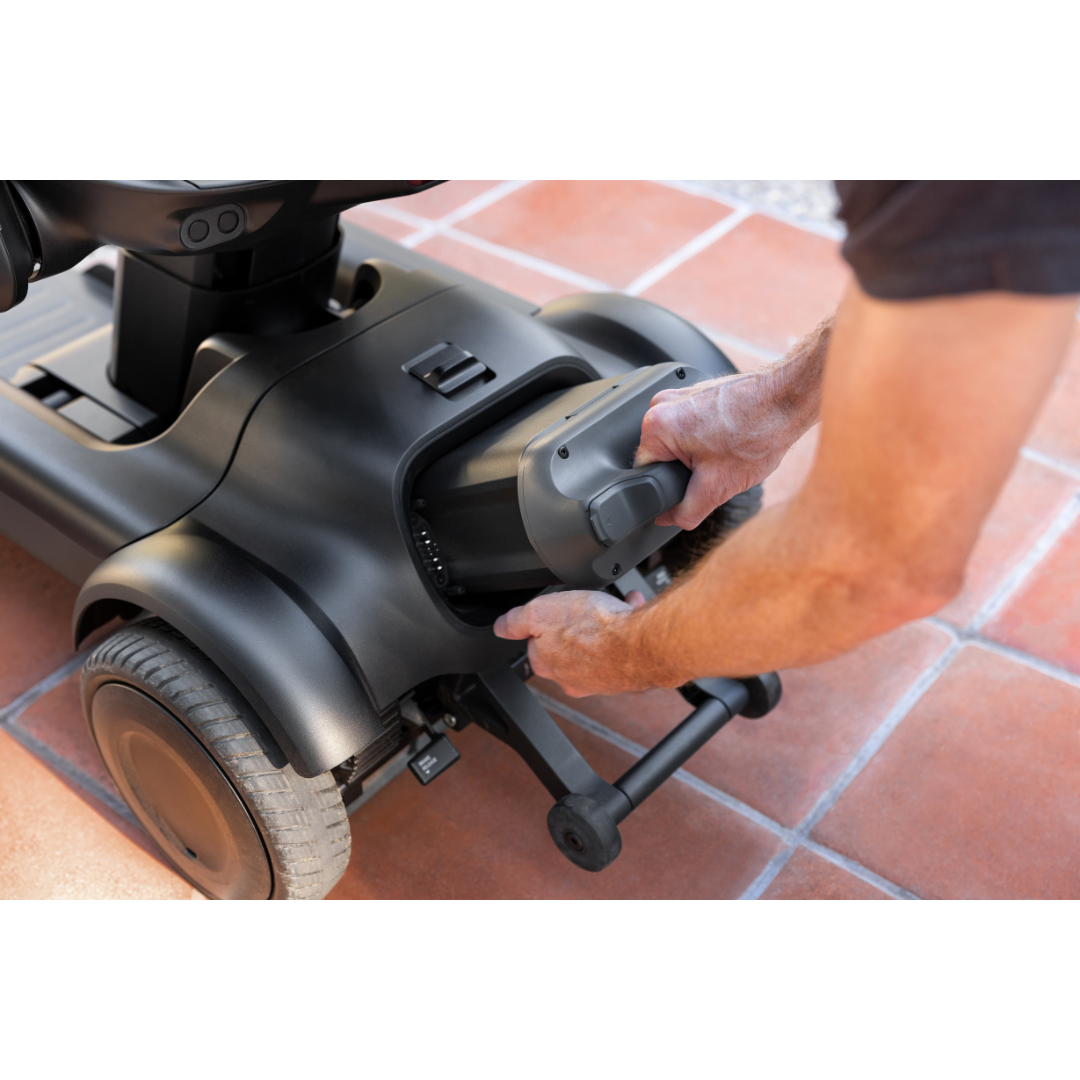

| Dimensions (L x W x H) | Approximately 204 x 108 x 310 mm (8″ x 4.3″ x 12.2″) |
|---|---|
| Weight | 6 ± 0.5 kg (13.23 ± 1.10 lbs.) |
| Battery Type | Lithium Iron Phosphate |
| Nominal Voltage | 32 V |
| Typical Capacity / Typical Energy | 20 Ah / 640 Wh |
| Rated Capacity / Rated Energy | 18.5 Ah / 592 Wh |
| Limit Charging Voltage | 36 V |
| Charging Time | 0–80% Capacity: Approximately 2 Hours 0–100% Capacity: Approximately 4 Hours |
| Waterproof Rating | IPX6 |
| Working Temperature | -10–45 °C (14–113 °F) |
| Charging Temperature | 2–45 °C (35.6–113 °F) |
| Dimensions (L x W x H) | Approximately 199 x 88.5 x 47 mm (7.83″ x 3.48″ x 1.85″) |
|---|---|
| Weight | Approximately 1.2 kg (2.65 lbs.) |
| Input | 100–240 V AC, 50–60 Hz, 5 A Maximum |
| Output | 36 V DC / 9 A |
| Maximum Output Power | 324 W |
| Waterproof Rating | IPX1 |
| Working Temperature | 0–45 °C (32–113 °F) |
| Altitude Range | 0–5,000 m (approximately 0–16,404 ft.) |
1: Height is measured with standard backrest and may vary depending on seat height and backrest angle
2: Data from Strutt Labs. Actual range varies by product, environment, and usage. Please refer to the actual performance. Max range test conditions: New 640Wh (Typ) battery from full charge, 20°C ambient temp, 91kg (200.6 lbs) load, constant 4 mph (6.4 kph) on a smooth, level, hard surface; total range is simulated based on measured energy consumption.
3: Gradeability was validated under controlled conditions: normal seated posture, total load 160 kg/ 350lbs, seat at maximum height, and a smooth, uniform ramp. Adding accessories or otherwise shifting the vehicle’s center of gravity can reduce stability and hill-climbing performance; avoid steep slopes in such configurations.
Videos
Downloads
FAQs
Warranty
Expand Your Everyday Mobility

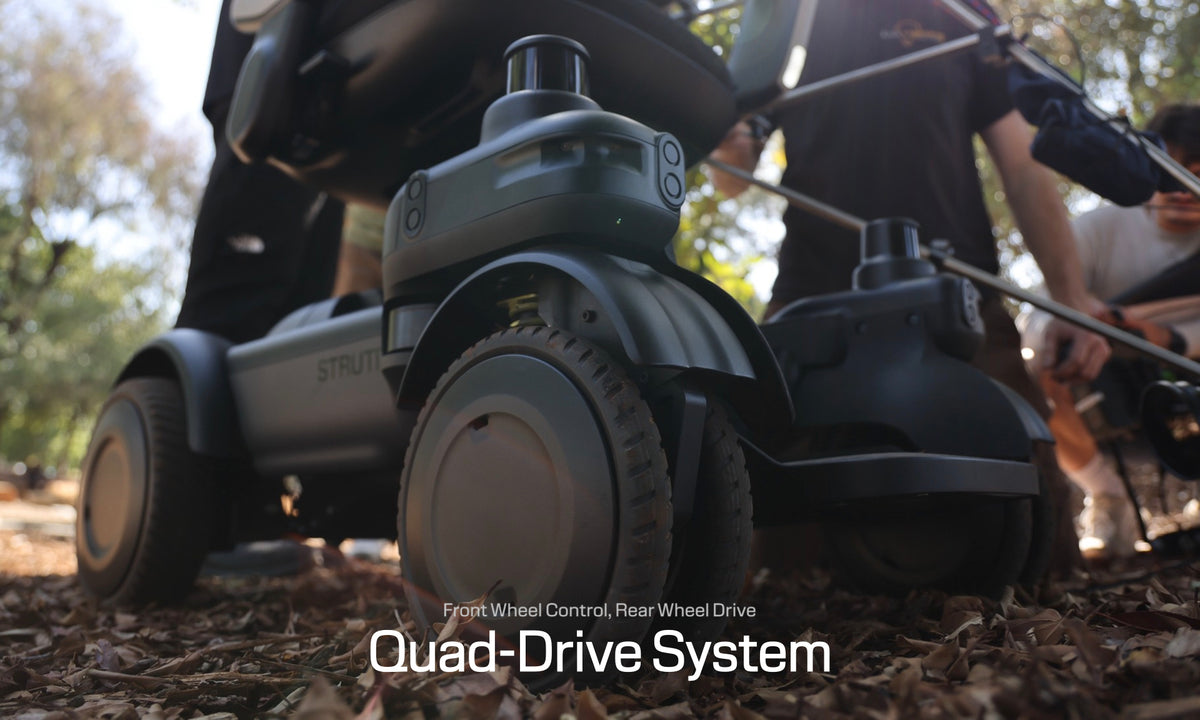

The ev¹ pairs advanced evSense technology with a powerful Quad-Drive System to deliver a safer, smoother, and more comfortable mobility experience. From busy stores to uneven outdoor paths, it provides responsive performance that makes every journey easier and more enjoyable.
Slopes
Stay steady on challenging slopes
Navigate uphill, downhill, and across side slopes up to 13 degrees (23.1%) with a balanced combination of power and control. Active Steering and intelligent torque distribution help reduce wheel slip, supporting smooth, stable tracking and controlled descents on steep ramps.

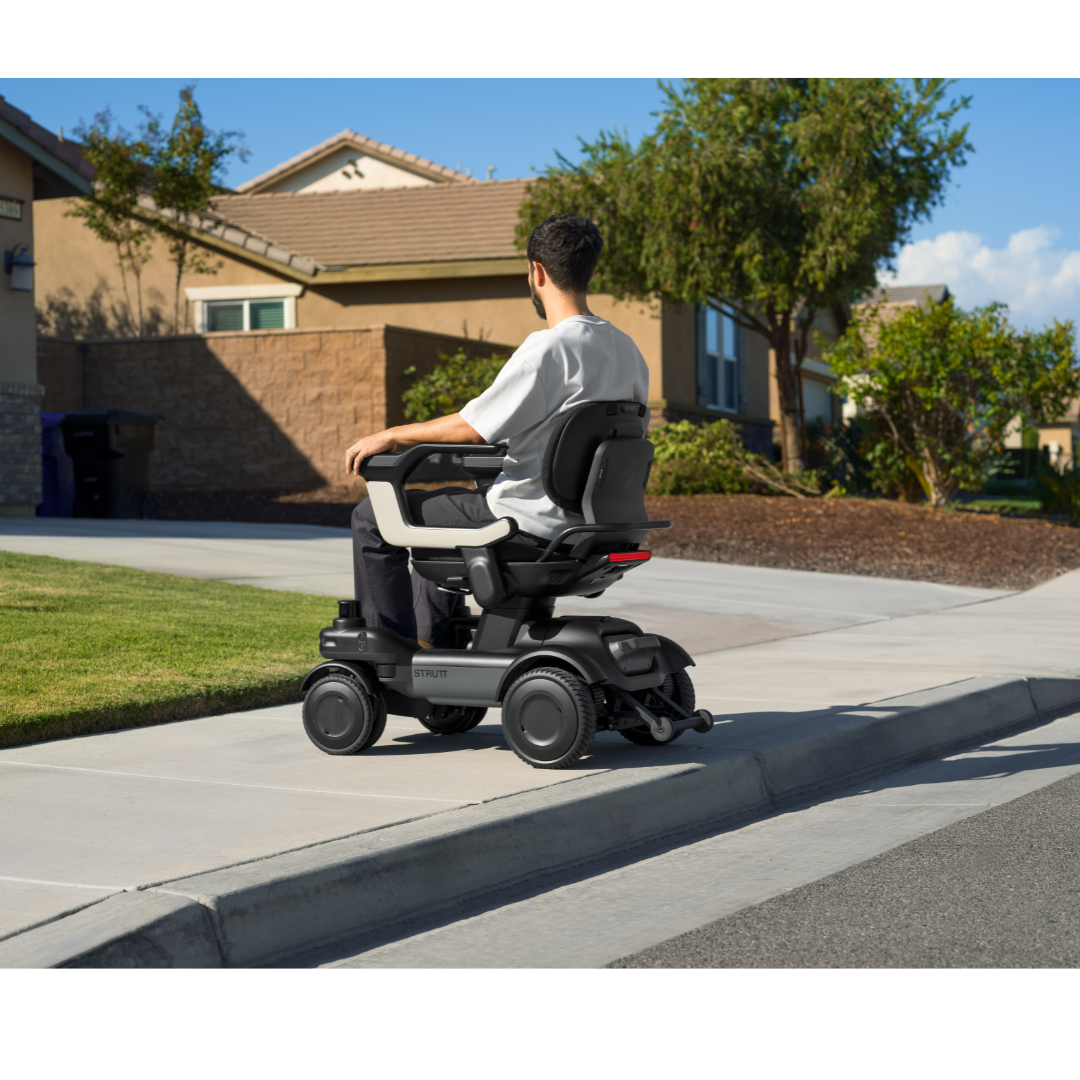

Curbs
Climb curbs and navigate gaps.
The ev¹ provides controlled climbing power to help the front wheels navigate curbs and edges up to 2 inches high and cross gaps up to 4.7 inches wide, making challenging thresholds and entrances easier to manage.
Speed
Effortless comfort at your pace
Enjoy the freedom to explore at speeds of up to 8 mph. Four-wheel independent suspension helps absorb bumps and vibrations for a smoother, more comfortable ride across uneven surfaces.

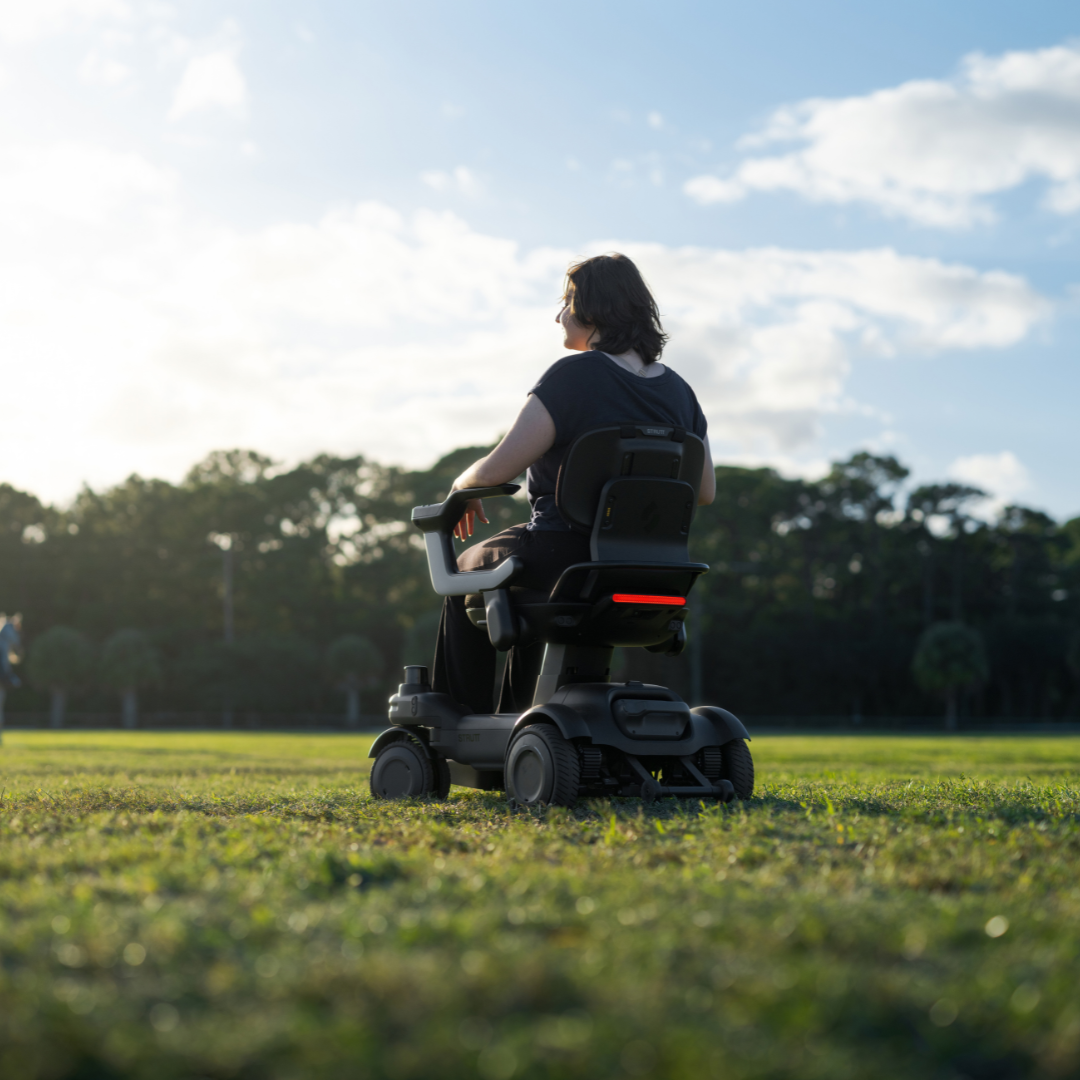

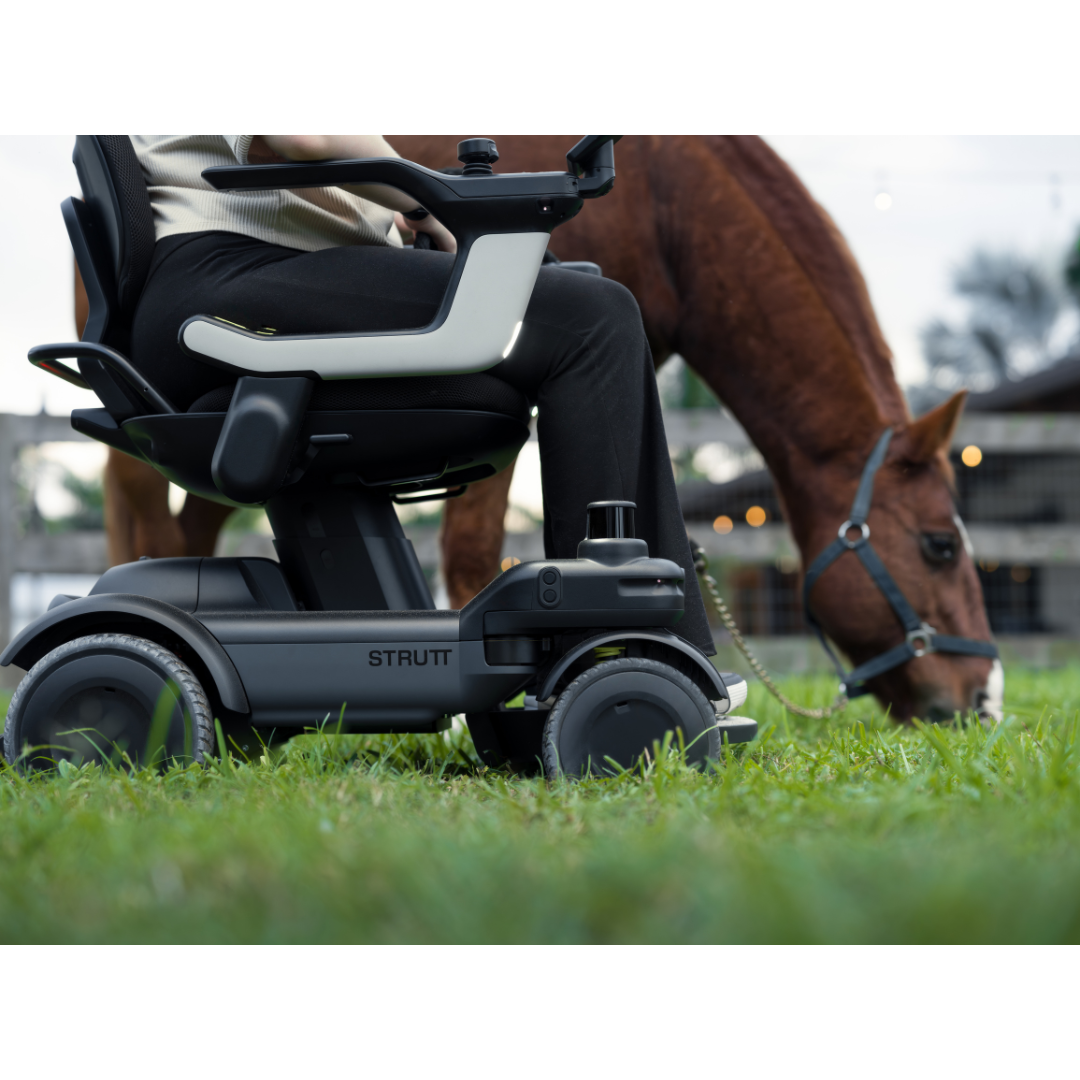

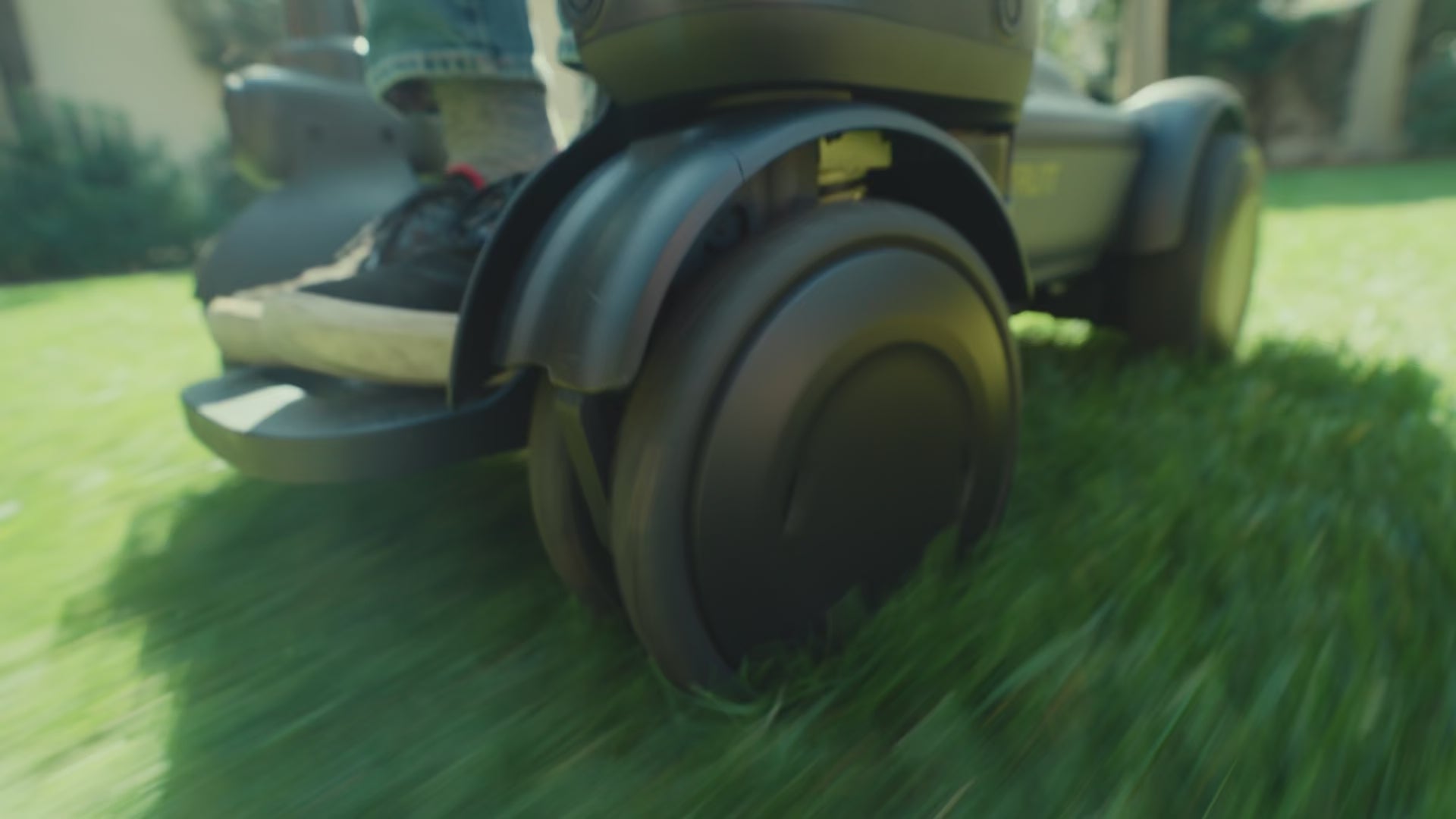

Off-Road
Free to roam outdoors

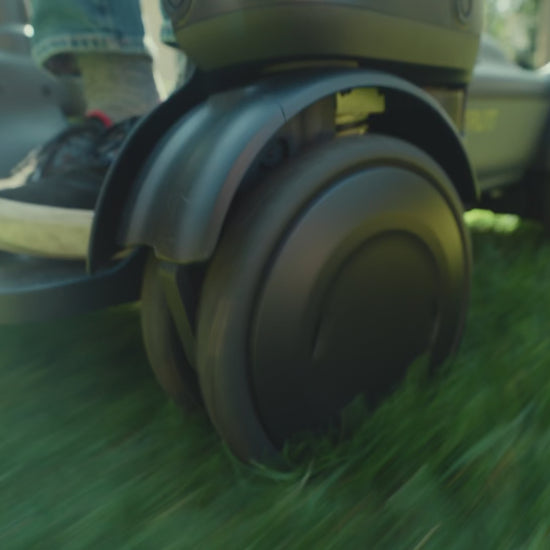

The ev¹ is designed to maintain confident control beyond paved surfaces. Active Steering and powerful rear-wheel drive work together to provide stable, responsive mobility across grass, gravel, and other suitable natural terrain.

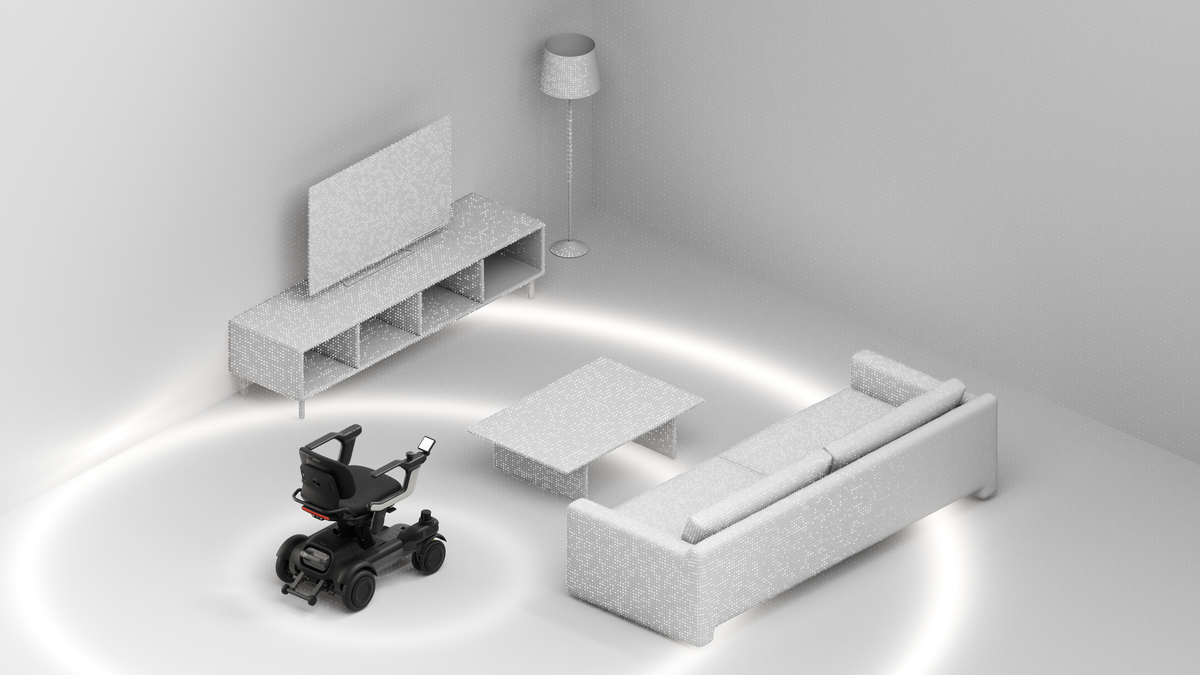

Intelligent Sensor Support

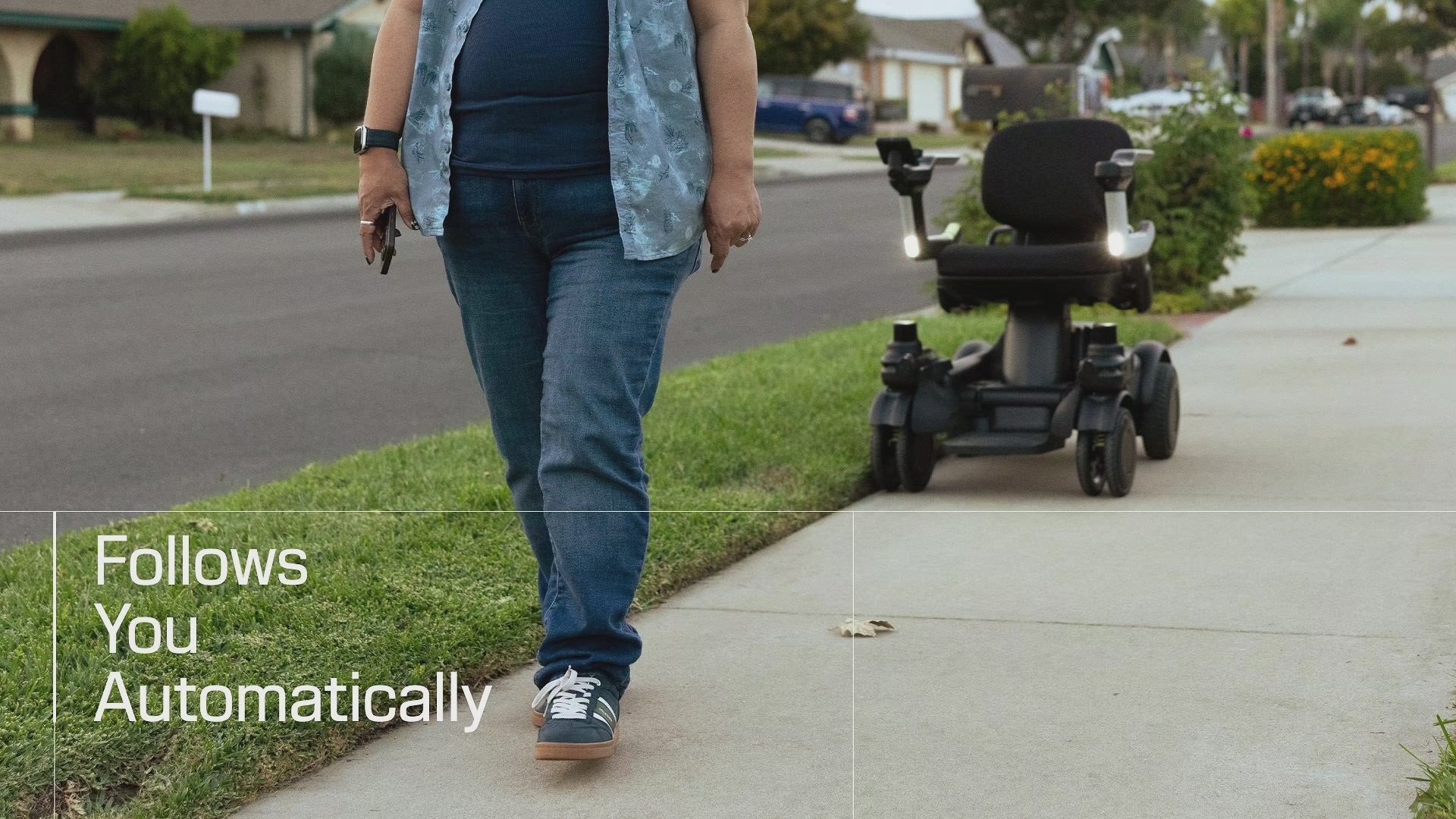

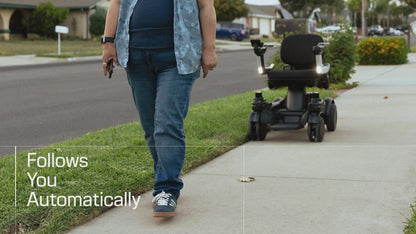

evSense uses an advanced sensor array to help the ev¹ detect and respond dynamically to its surroundings. With 360-degree awareness, intelligent algorithms, and AI-powered features, it provides enhanced environmental insight while you navigate.
evSENSE
Intelligent Sensors Support
evSense uses an advanced sensor array to help the ev¹ detect and respond dynamically to its surroundings. With 360-degree awareness, intelligent algorithms, and AI-powered features, it provides enhanced environmental insight while you navigate.
