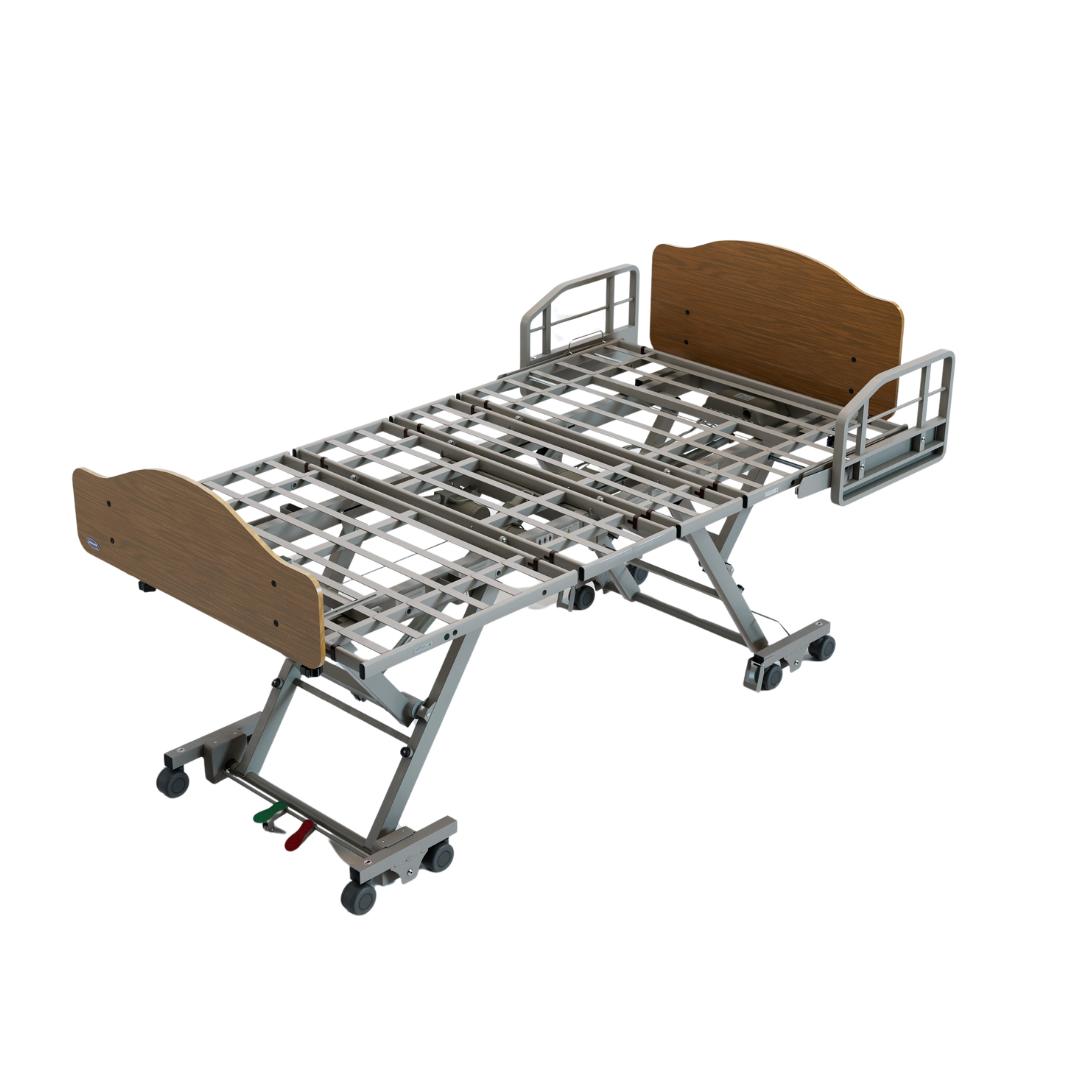

Invacare CS600™ Adjustable Long Term Care Bed | Expandable Width
Key Features & Benefits
- ✓ Weight Capacity: 600 lbs
- ✓ Adjustable height range as low as 7" up to 30"
- ✓ Tool-free assembly reduces setup time and complexity
- ✓ Backlit hand pendant for improved visibility
- ✓ Integrated width expansion allows for three settings: 36" , 36" or 42"
In stock
Couldn't load pickup availability
Speak To An Expert
FREE Shipping
30-Day Return Policy
24/7 Support
FSA/HSA Eligible
Similar Products

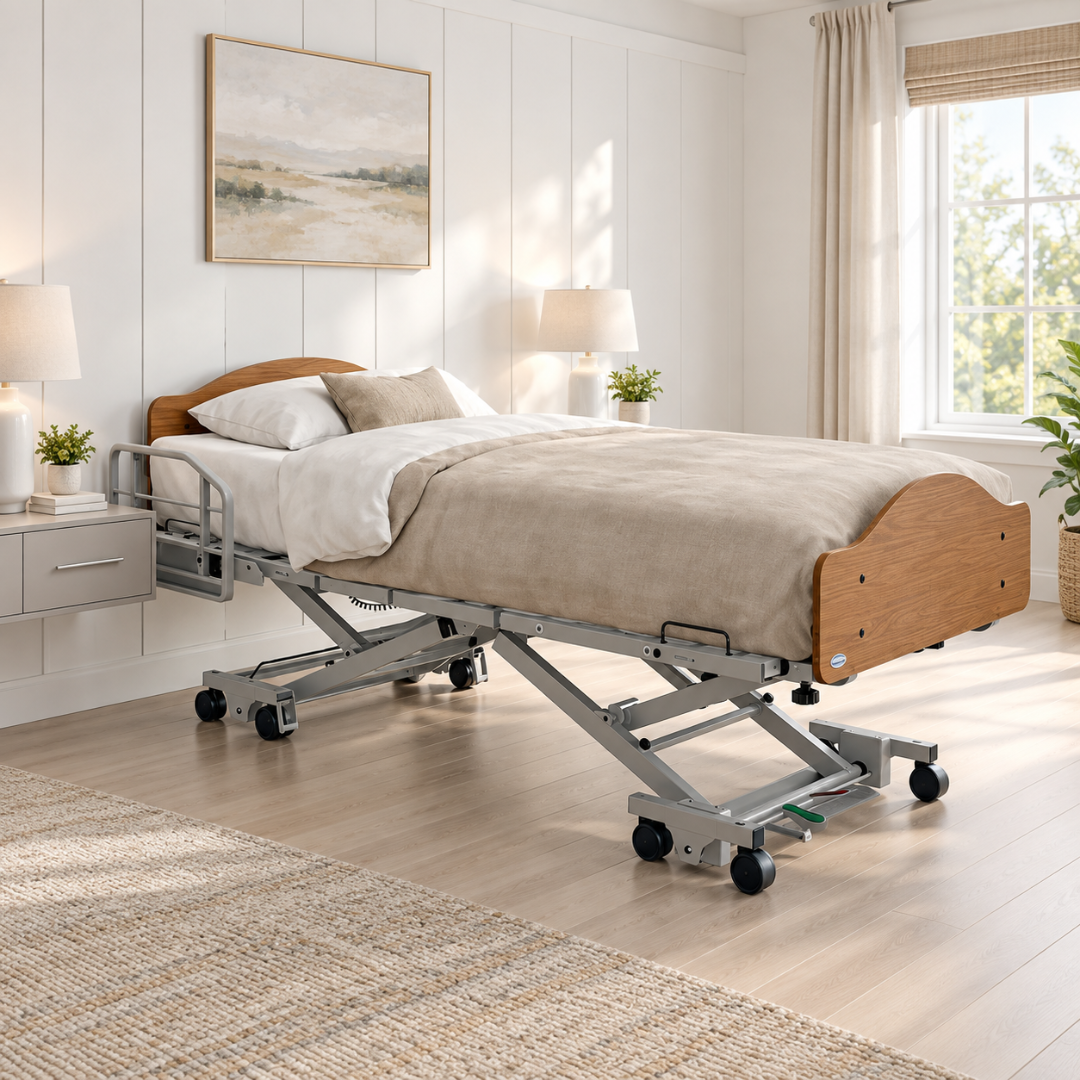

The CS600™ Adjustable Electric Bed is the next generation of the popular CS Series, combining low-bed safety, powered positioning, caregiver-friendly height adjustment, and easy-clean construction. Designed for home care, hospitals, rehabilitation centers, and long-term care environments, it delivers the comfort and versatility needed to support a wide range of patients and daily care routines.
Safety and performance are central to the CS600 design. The bed is tested to IEC 60601-2-52, the international standard addressing the safety and essential performance of medical beds. Its durable construction provides a safe working load of up to 600 pounds, while the versatile width design accommodates varying patient profiles and care environments.
The CS600 lowers close to the floor, helping reduce the potential distance of a fall for users who may attempt to exit the bed without assistance. For caregivers, the sleep deck raises to a working height of up to 30 inches, supporting more comfortable access during repositioning, personal care, linen changes, and other bedside tasks.
Multiple electric positioning options allow the bed to support sleeping, resting, dining, and clinical care. The cardiac upright position raises the upper body and adjusts the sleeping surface to promote a supportive seated posture for breathing, circulation, meals, and interaction.
A removable slat-deck design and wipe-clean electronic components simplify routine cleaning and maintenance. Tool-free assembly reduces setup time and eliminates the need for complicated installation procedures.
Ideal Applications
✔ Home healthcare
✔ Hospitals and medical facilities
✔ Skilled nursing facilities
✔ Assisted living communities
✔ Rehabilitation centers
✔ Long-term care
✔ Fall-risk management programs
✔ Patients requiring adjustable positioning
-
Electric Height Adjustment
Raises and lowers the bed to support patient access and more ergonomic caregiver working positions. -
Low-Bed Positioning
Lowers the sleeping surface closer to the floor to help reduce the potential impact distance of a fall. -
Maximum 30-Inch Working Height
Provides caregivers with convenient access for personal care, repositioning, and bedding changes. -

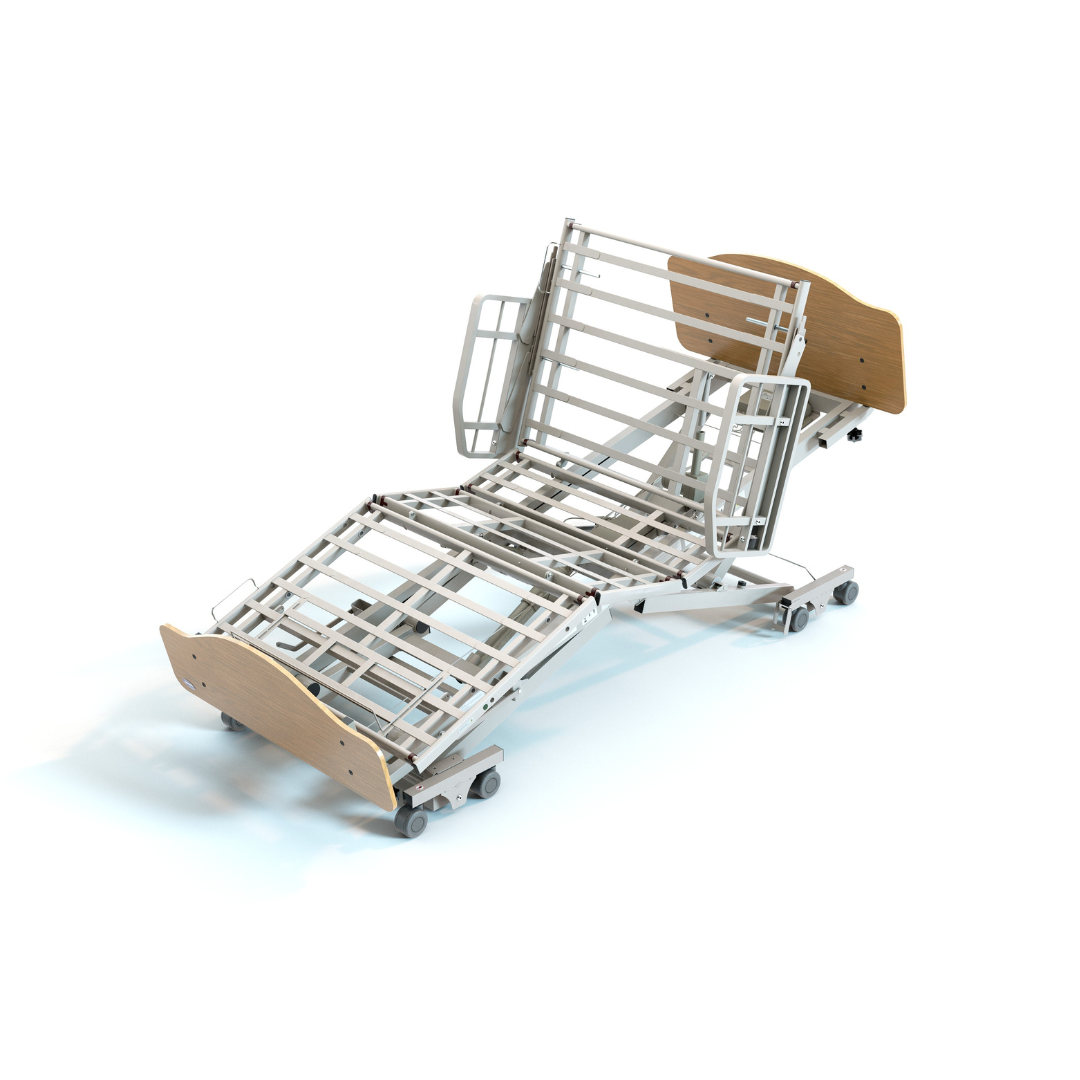

Cardiac Upright Position
Creates a supportive seated posture for meals, reading, breathing comfort, circulation, and interaction. -
600-Pound Safe Working Load
Accommodates the combined load of the patient, mattress, bedding, and approved accessories up to the stated limit. -
Versatile Width Design
Supports varying patient profiles and care requirements across residential and professional environments. -
IEC 60601-2-52 Tested
Meets an internationally recognized medical-bed standard for safety and essential performance. -
Tool-Free Assembly
Simplifies setup and reduces the time required to prepare the bed for use. -
Easy-Clean Slat Deck
Provides convenient access to individual surfaces during cleaning and routine maintenance. -
Wipe-Clean Electronics
Helps care teams maintain established sanitation and infection-control procedures. -
Patient and Caregiver-Focused Design
Balances comfortable positioning, accessibility, safety, and daily care efficiency.

Specifications
Technical Data
Blue: Indicates Item Number| Model | Bed Deck Length | Bed Deck Width | Overall Length (incl. head/foot boards) |
Max Safe Working Load | Product Weight | Min / Max Bed Deck Height |
|---|---|---|---|---|---|---|
| CS600-36 | 80" | 36" | 88" | 600 lbs | 217 lbs | 7" – 30" |
| CS600-EXP | 80" | 36", 39", 42" | 88" | 600 lbs | 243 lbs | 7" – 30" |
| Model | Max Back Angle | Max Knee Angle | Max Reverse Trendelenburg | Length Extension | Width Extension | ACP (Attendant Control Panel) |
|---|---|---|---|---|---|---|
| CS600-36 | 60° ± 5° | 30° ± 5° | 17° ± 5° | 80" – 84" w/accessory | Optional w/accessory | Optional |
| CS600-EXP | 60° ± 5° | 30° ± 5° | 17° ± 5° | 80" – 84" w/accessory | Integrated | Optional |
42" CS600BE42SO
42" CS600BE42AF
42" CS600BE42BC
(Frame Finish)
Standard Width — CS600-36
Expandable Width — CS600-EXP
Standard Width — CS600-36
Expandable Width — CS600-EXP
Please note: colors may vary slightly from those displayed above.
Videos
Downloads
FAQs
What is the Z73 Electric Rollator Walker?
The Z73 is a folding rollator that combines conventional walking support with an electric assistance system, adjustable handles, and a built-in resting seat.
Who may benefit from using the Z73?
It may benefit seniors and adults who require more walking assistance than a conventional rollator provides but can still walk and control the device safely.
How does the electric assistance work?
Detailed operating modes were not included in the supplied specifications. Review the current user manual to understand how the motor, controls, and conductive handles operate.
Is the Z73 self-driving?
It should not be considered autonomous or self-driving. The user must remain in control of the rollator throughout operation.
Is it a powered wheelchair?
No. The Z73 is an electric-assisted walking aid, not a power wheelchair or transport chair.
What is the maximum weight capacity?
The Z73 supports users weighing up to 300 pounds.
How much does the rollator weigh?
The Z73 has a net weight of approximately 41.2 pounds.
What is the frame made from?
The frame combines aluminum alloy and iron components for corrosion resistance, strength, and stability.
What are conductive silicone handles?
They are silicone-covered grips that interface with the rollator’s electrical control system. Consult the user manual for their exact functions.
Is the handle height adjustable?
Yes. The published specifications list six height positions.
What is the handle-height range?
The handles adjust from approximately 33.5 to 38.4 inches.
How should the handles be adjusted?
Both handles should be set to the same height. They should generally align near the user’s wrist creases while standing upright with a slight bend in the elbows.
Does the Z73 include a seat?
Yes. It includes a thickened seat cushion for temporary rest breaks.
What are the seat dimensions?
The seat measures approximately 17.5 inches wide by 7.9 inches deep.
Is the seat suitable for extended sitting?
Its shallow seat is best suited for short rest breaks. Users requiring prolonged seating or specialized pressure support should consider another mobility device.
Does it include a backrest?
Yes. The Z73 has a widened leather backrest for seated support.
Can the Z73 move while someone is seated?
No. It must remain stationary and properly secured whenever someone is using the seat.
Can a caregiver push a seated user?
No. The Z73 is not a transport chair or wheelchair and must not be used to transport a seated person.
What size are the wheels?
The rollator uses 8-inch wheels.
What are the tires made from?
The tires are made from soft thermoplastic rubber, commonly called TPR.
Do the tires require inflation?
No. The puncture-resistant TPR tires do not require air.
Do the front wheels swivel?
Yes. The front wheels rotate 360 degrees for responsive steering.
Can the Z73 be used outdoors?
It may be used on suitable firm, level outdoor surfaces if permitted by the manufacturer. Avoid deep gravel, loose sand, mud, steep slopes, and severely uneven terrain.
Is the Z73 waterproof?
No waterproof rating was provided. Protect the motor, battery, controls, handles, and charging connections from rain, standing water, and excessive moisture.
Does the Z73 fold?
Yes. It folds sideways for more compact storage and transportation.
What are the unfolded dimensions?
The unfolded dimensions are approximately 27.2 inches by 24.4 inches by 33.5 to 38.4 inches.
What are the folded dimensions?
The folded dimensions are approximately 9.1 inches by 24.4 inches by 38.4 inches.
Will it fit inside every vehicle?
Not necessarily. Compare the folded dimensions and 41.2-pound lifting weight with the vehicle’s cargo opening and available space.
What type of battery does it use?
Battery chemistry, voltage, capacity, and removability were not included in the supplied information. Confirm these details before purchase.
What is the driving range?
A powered-assistance range was not provided. Runtime may vary based on the battery, user weight, terrain, assistance level, and temperature.
What is the maximum assisted speed?
No speed specification was supplied. Use only the settings and operating limits stated in the manufacturer’s manual.
How long does charging take?
Charging time was not provided. Use only the manufacturer-approved charger and follow all charging instructions.
Can it be taken on an airplane?
Airline acceptance depends on the battery type, energy rating, removability, and carrier policies. Obtain the battery specifications and contact the airline before traveling.
What braking system does it have?
Brake details were not included in the supplied specifications. Confirm how the service and parking brakes operate before using the walker or seat.
What happens if the battery runs out?
The product information does not explain unpowered operation. Review the manual to determine whether it can function safely as a conventional rollator without electrical power.
Does the Z73 include a warranty?
Warranty information was not provided. Confirm the current warranty terms and exclusions with the seller or manufacturer.
What is included in the package?
Package contents were not listed. Confirm whether the battery, charger, accessories, tools, and user manual are included.
What should be inspected before each use?
Check the frame, wheels, tires, brakes, handles, electrical controls, battery, seat, backrest, and folding mechanism. Do not use the device if anything is loose, damaged, or malfunctioning.
Should a healthcare professional assist with fitting?
A physical therapist, occupational therapist, or other qualified professional can help determine whether the Z73 is appropriate and select a suitable handle height and assistance setting.
What safety precautions should users follow?
Never exceed the 300-pound capacity, test the brakes and electric controls before walking, avoid moisture and unsafe terrain, and secure the rollator before sitting. Never use the Z73 to transport a seated person.
