Ultra-Compact & Portable
The Joerns Hoyer UP Sit-to-Stand Manual Lift is engineered for easy transport and storage, making it ideal for home or facility use. Its compact structure enhances convenience for both caregivers and patients.
In stock
Couldn't load pickup availability

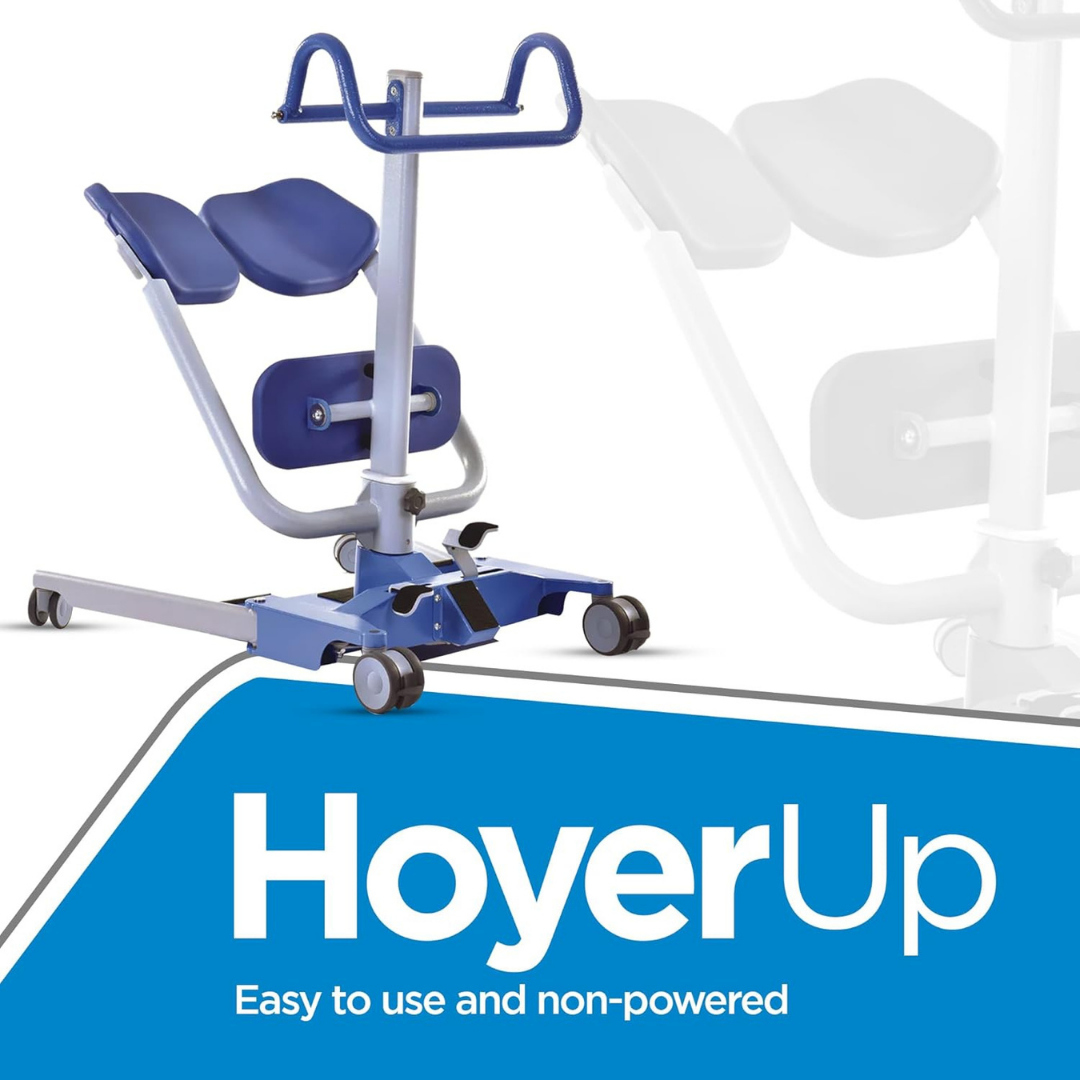

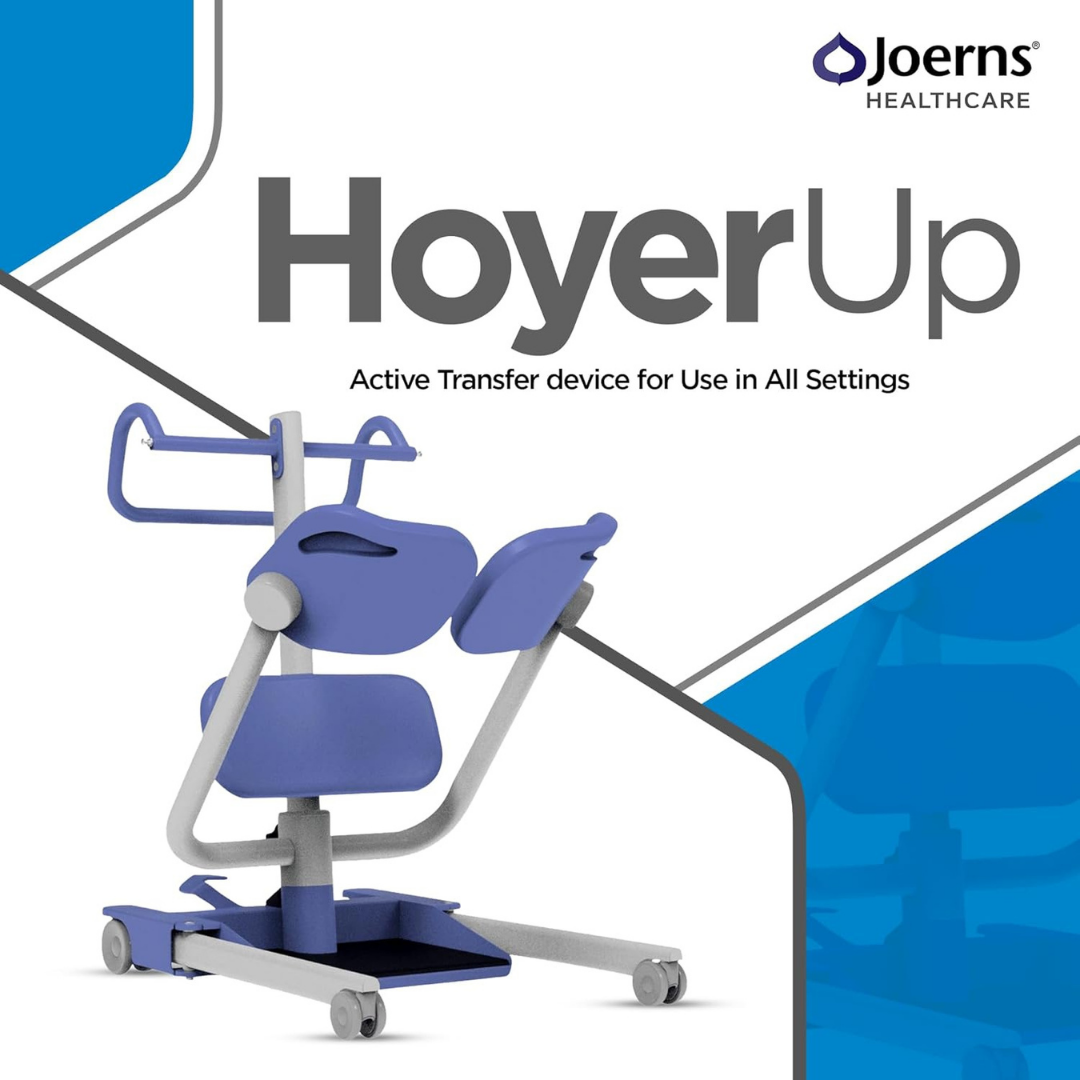

The Hoyer Up® Stand Aid is an active transfer solution designed for individuals with some weight-bearing ability, core strength, and the ability to actively participate in transfers. It promotes user engagement during daily routines, including toileting and short-distance transport, while minimizing the need for caregiver assistance.

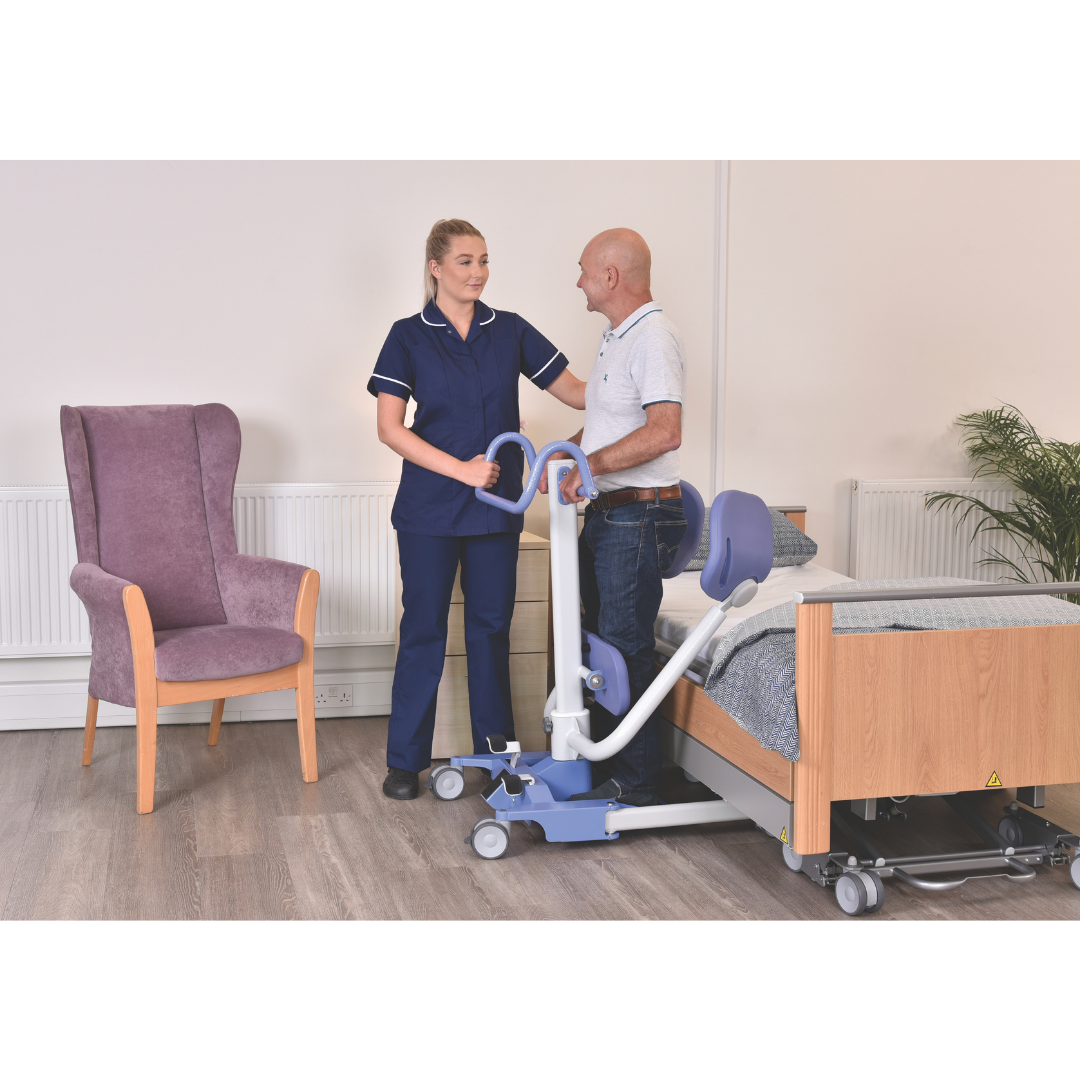

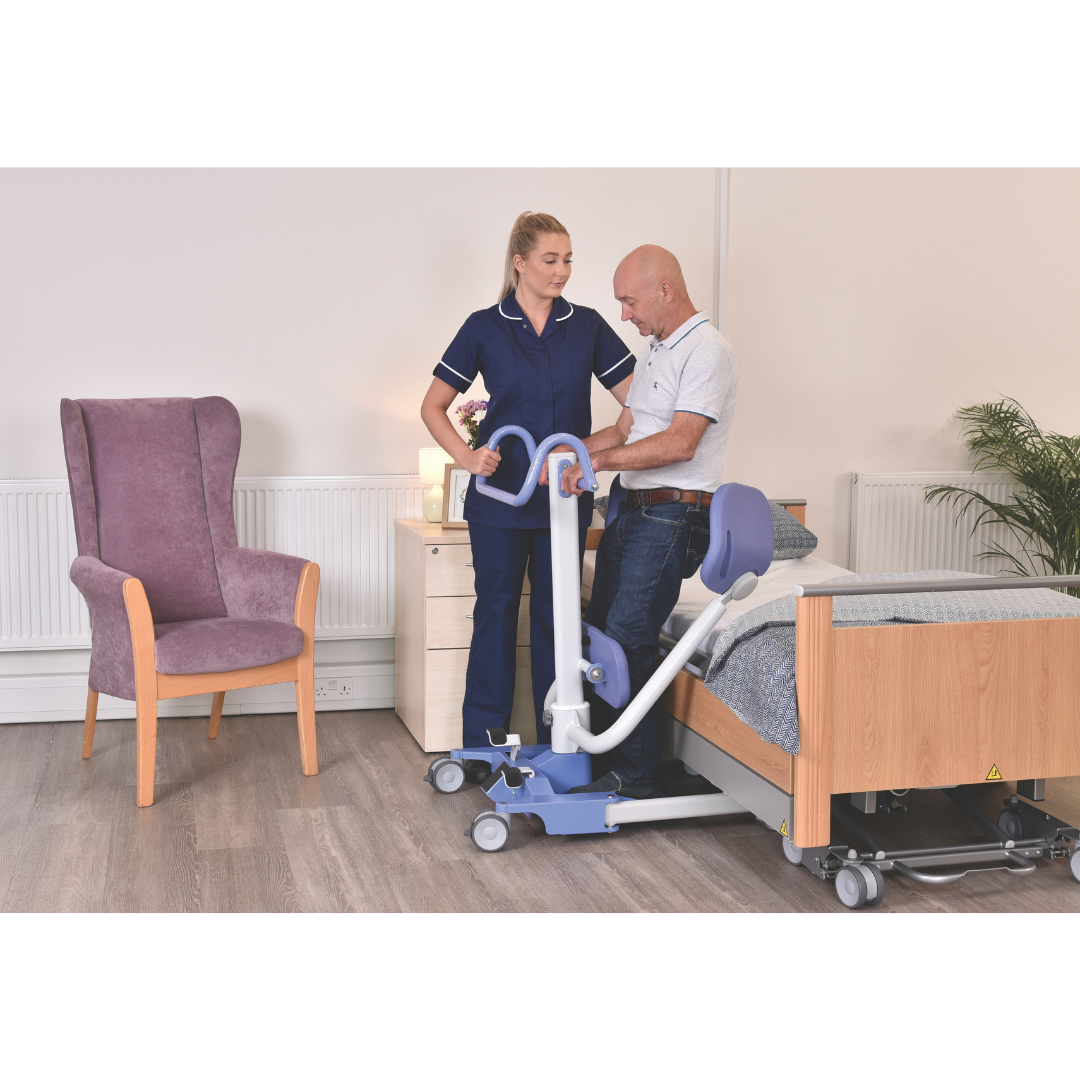

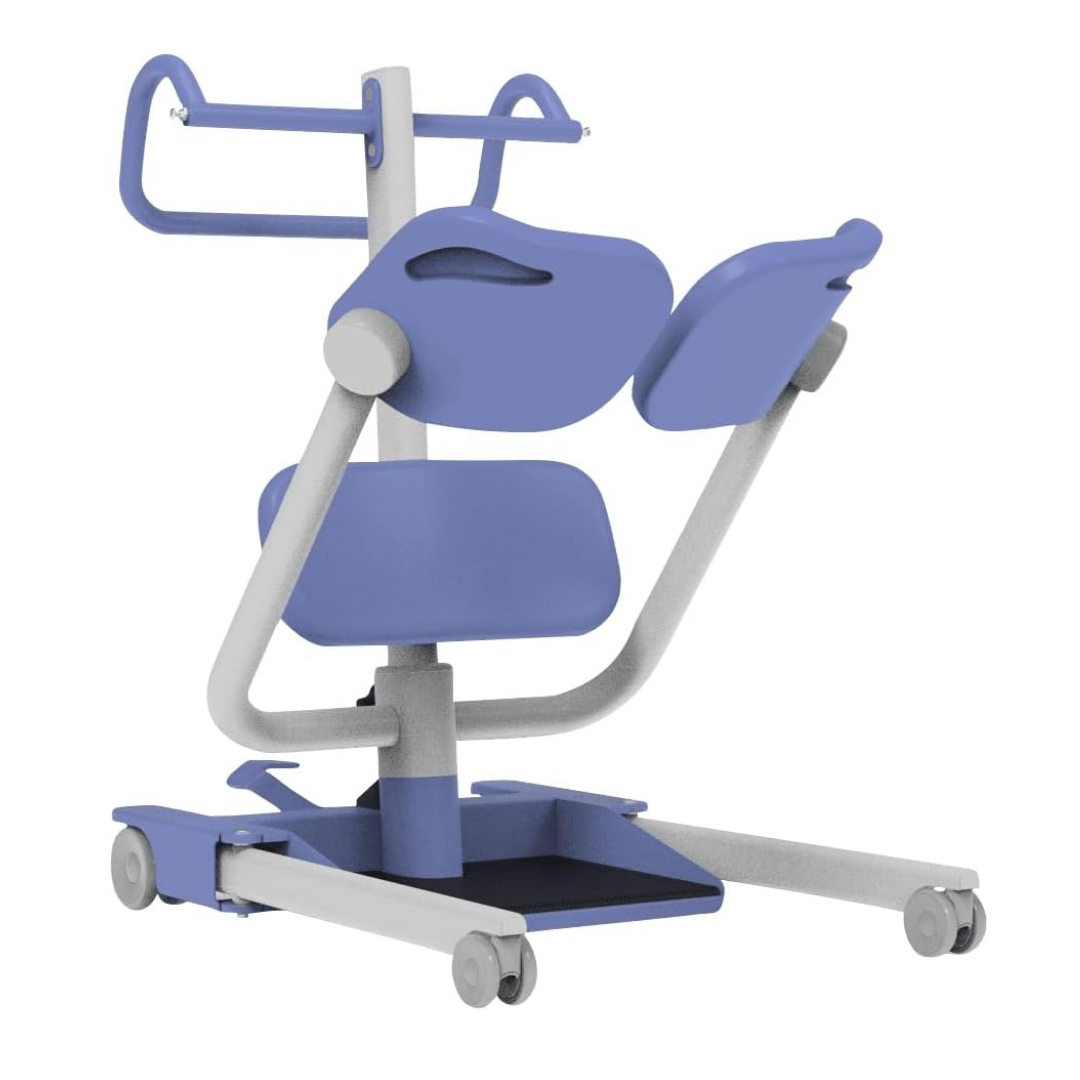

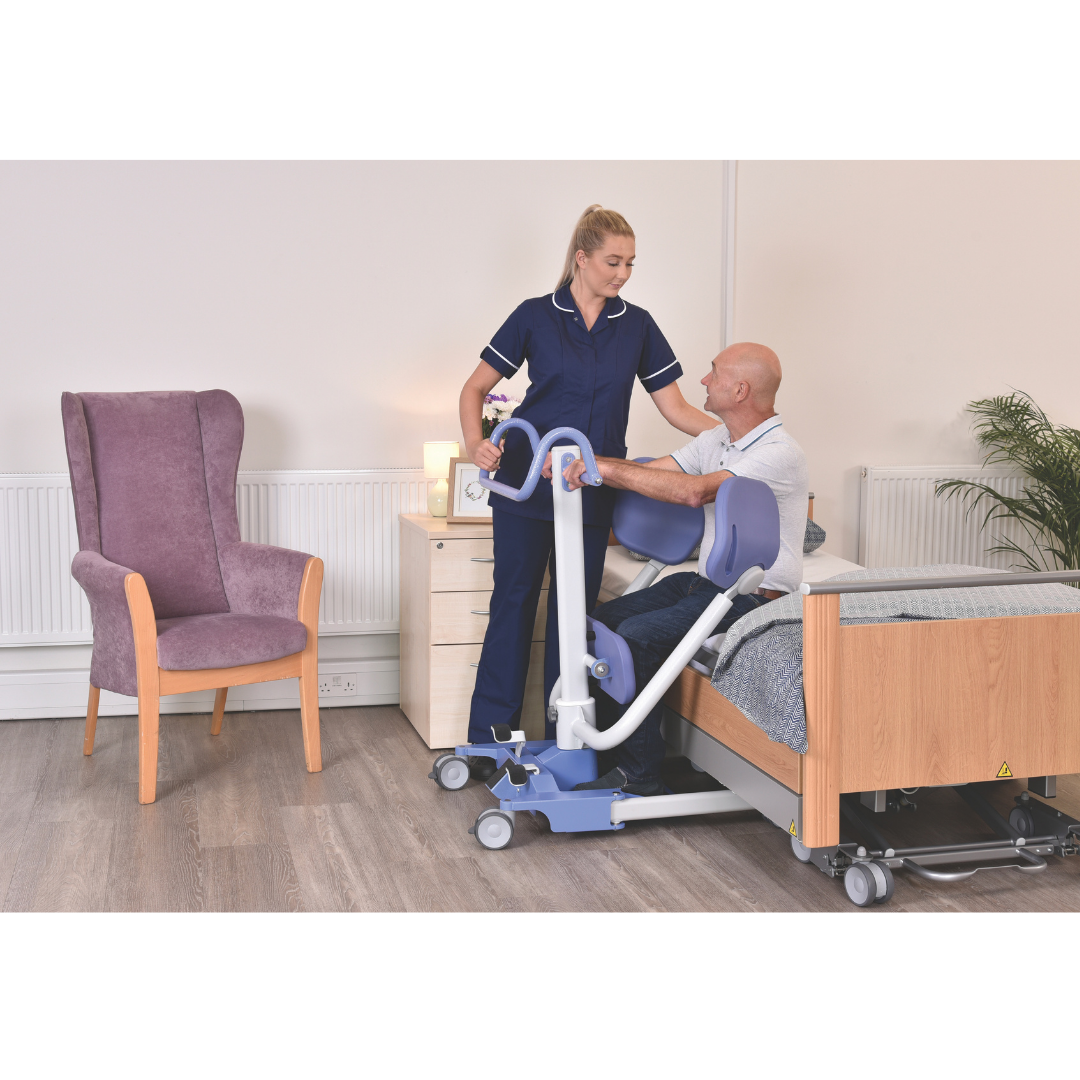

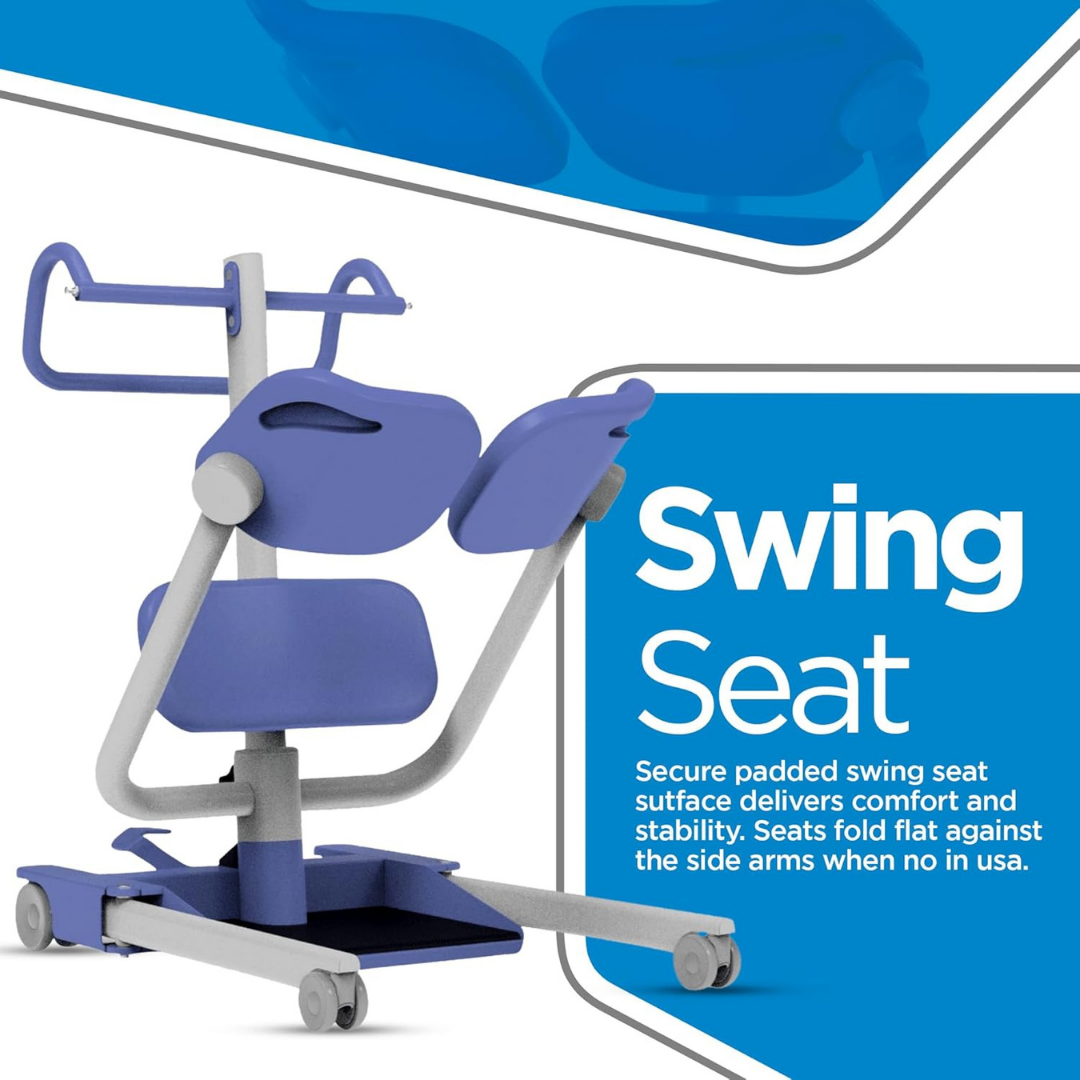

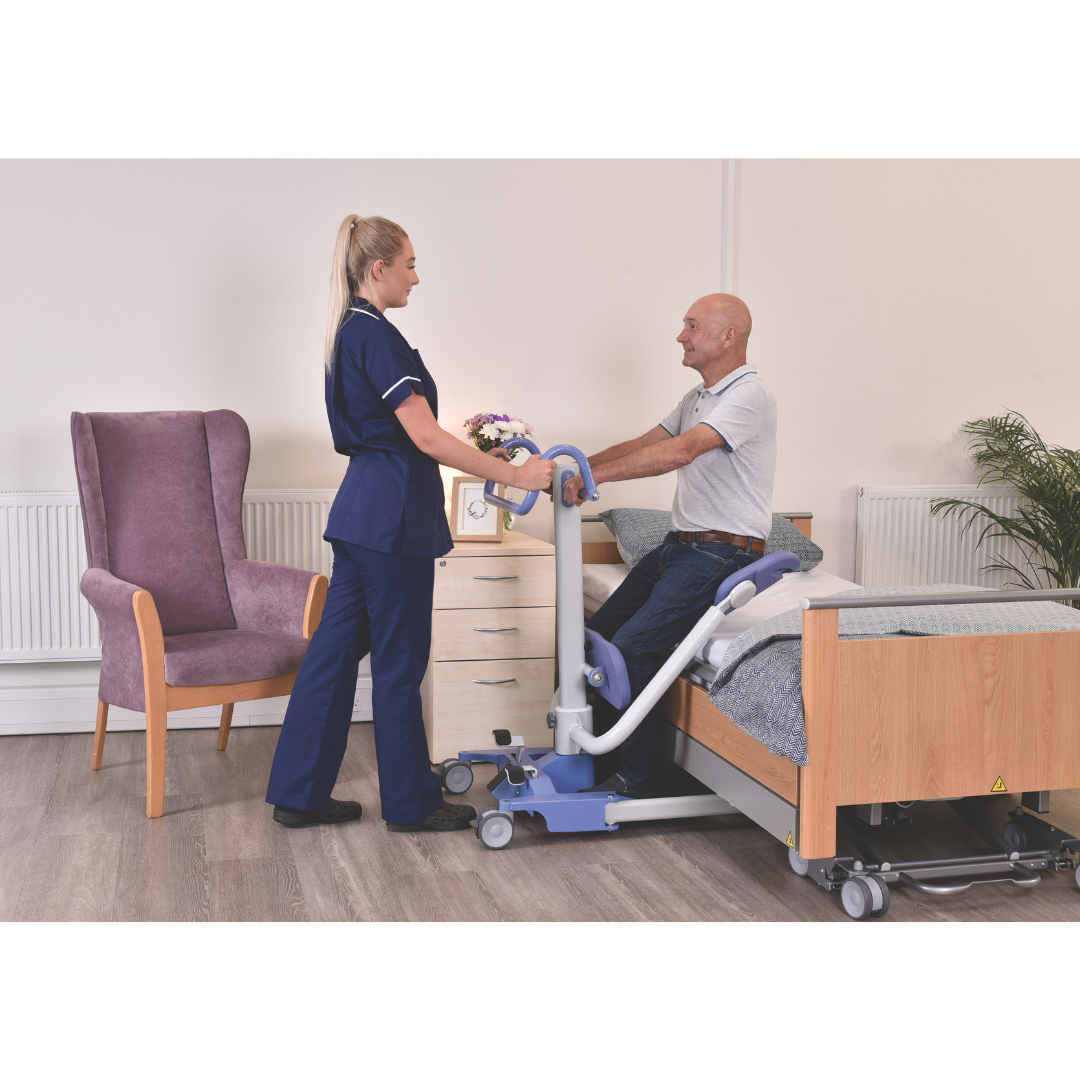

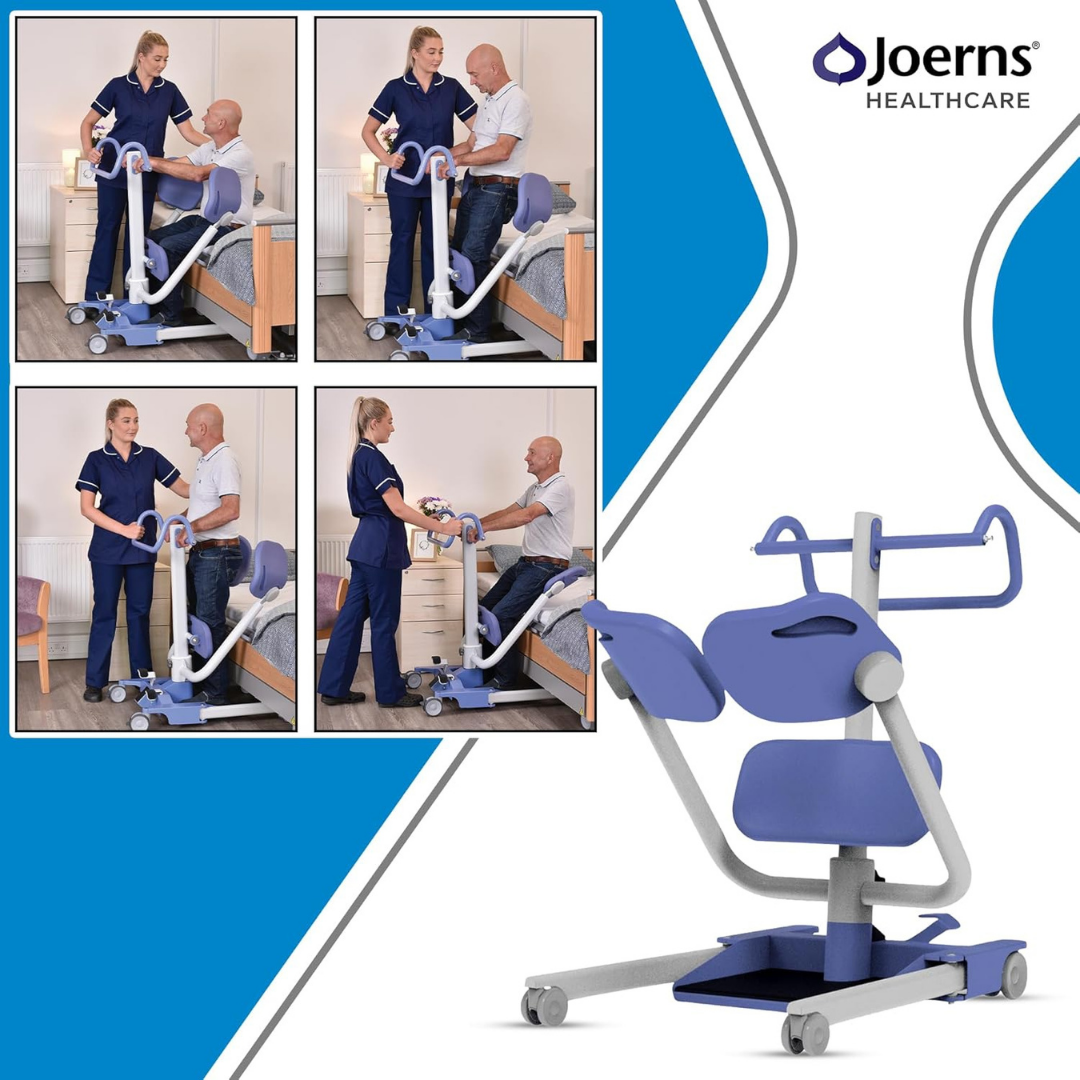

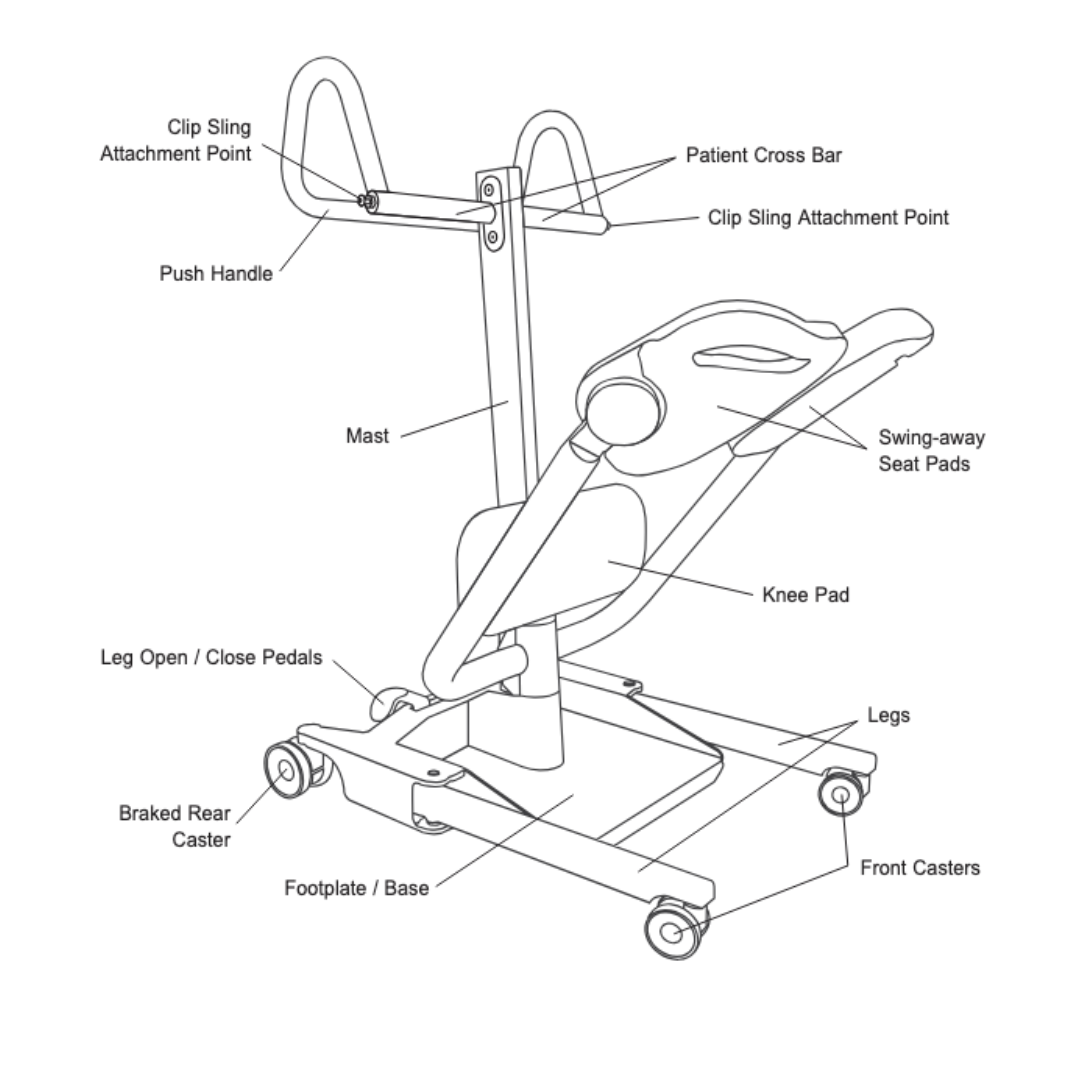

Users simply grasp the center support bar and pull themselves into a standing position. The padded split seat swings out for easy access during loading and unloading, then locks back into place to provide a secure and comfortable seat for safe transfers.
The Joerns Hoyer UP Sit-to-Stand Manual Lift is engineered for easy transport and storage, making it ideal for home or facility use. Its compact structure enhances convenience for both caregivers and patients.
Built with strength and stability in mind, this lift supports up to 440 lbs, offering reliable assistance across a wide range of users while improving overall care efficiency.

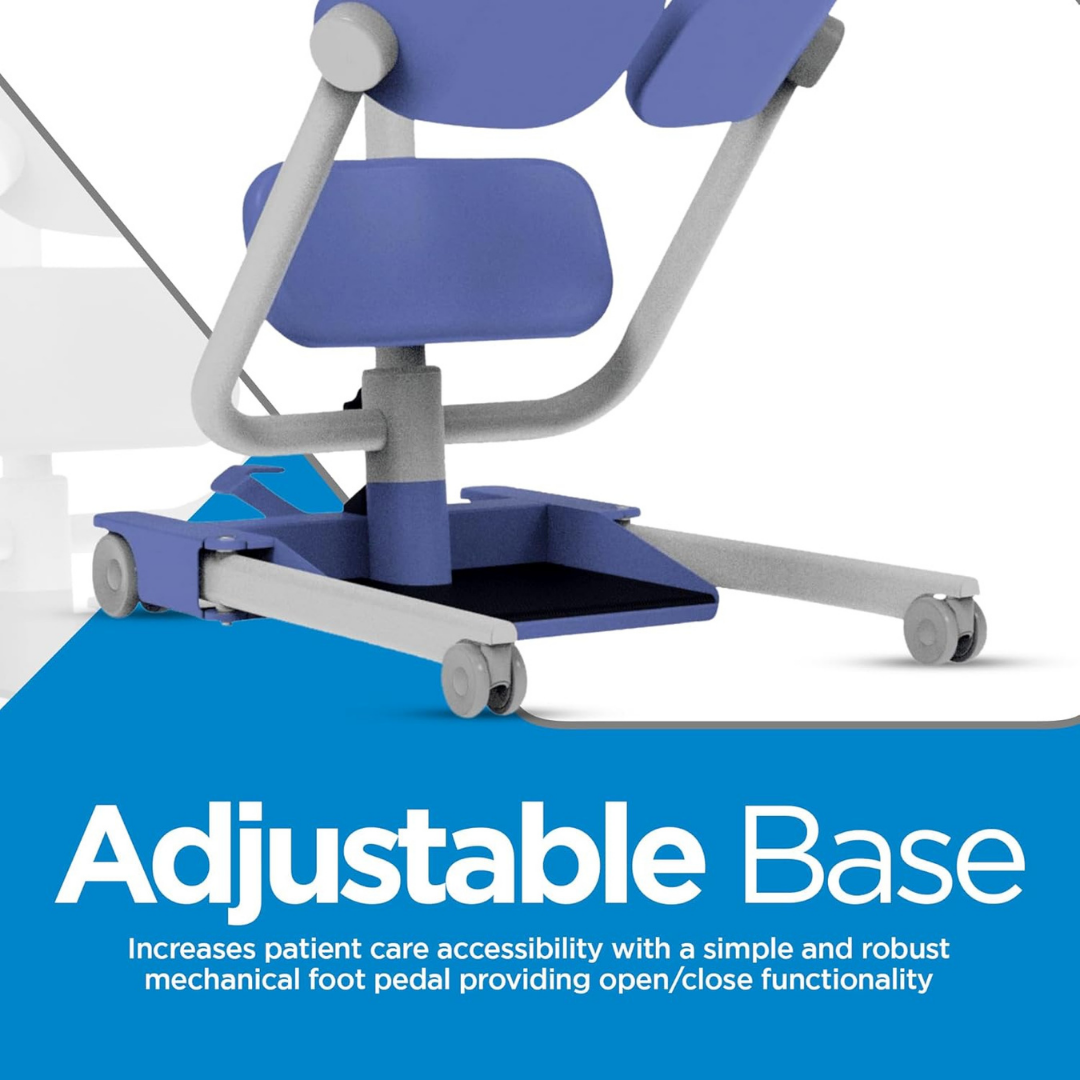

The adjustable base ensures a customizable fit for improved mobility, positioning, and access. This flexibility accommodates varying patient needs and care environments.
Designed with secure lifting mechanisms to enhance safety during transfers, helping reduce the risk of caregiver strain and patient injury — ideal for senior care and rehabilitation.
Compact, efficient, and easy to use, the Hoyer UP is optimized for home care settings. It simplifies daily routines while promoting comfort, confidence, and independence.
450 lbs
24.8″
43.3″
4.0″
37.4″
72.8 lbs (Base only: 43 lbs)

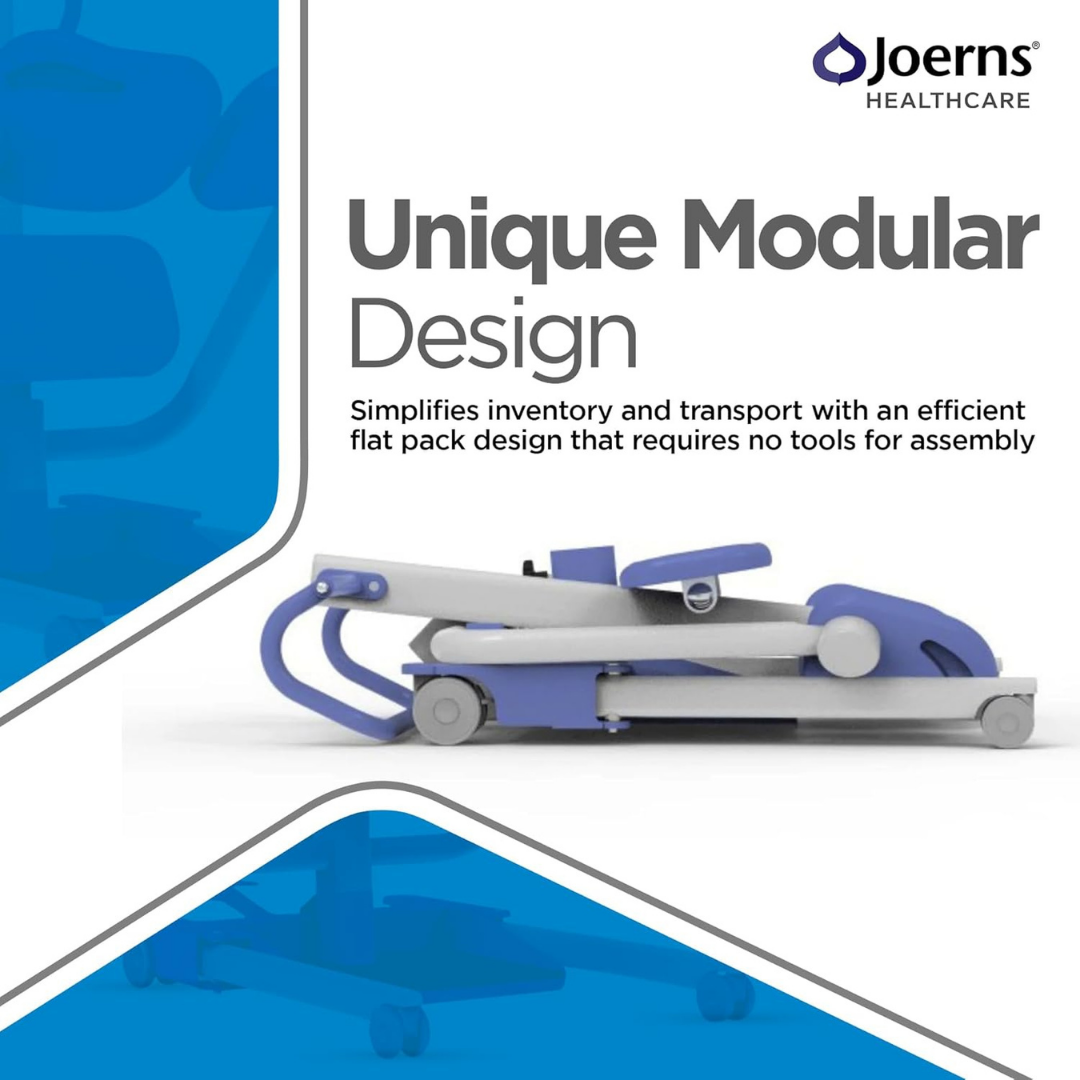

3-piece modular construction with tool-less assembly for fast setup, storage, and transport.








| Specification | Details |
|---|---|
| Safe Working Load | 440 lbs |
| Overall Width | 24.8″ |
| Overall Height | 43.3″ |
| Overall Length | 37.4″ |
| Legs Open – External Width | 33.3″ |
| Legs Open – Internal Width | 28.5″ |
| Legs Closed – External Width | 23.6″ |
| Legs Closed – Internal Width | 18.9″ |
| Leg Height | 4.3″ |
| Ground Clearance | 1.0″ |
| Overall Height of Base (Footplate) | 2.0″ |

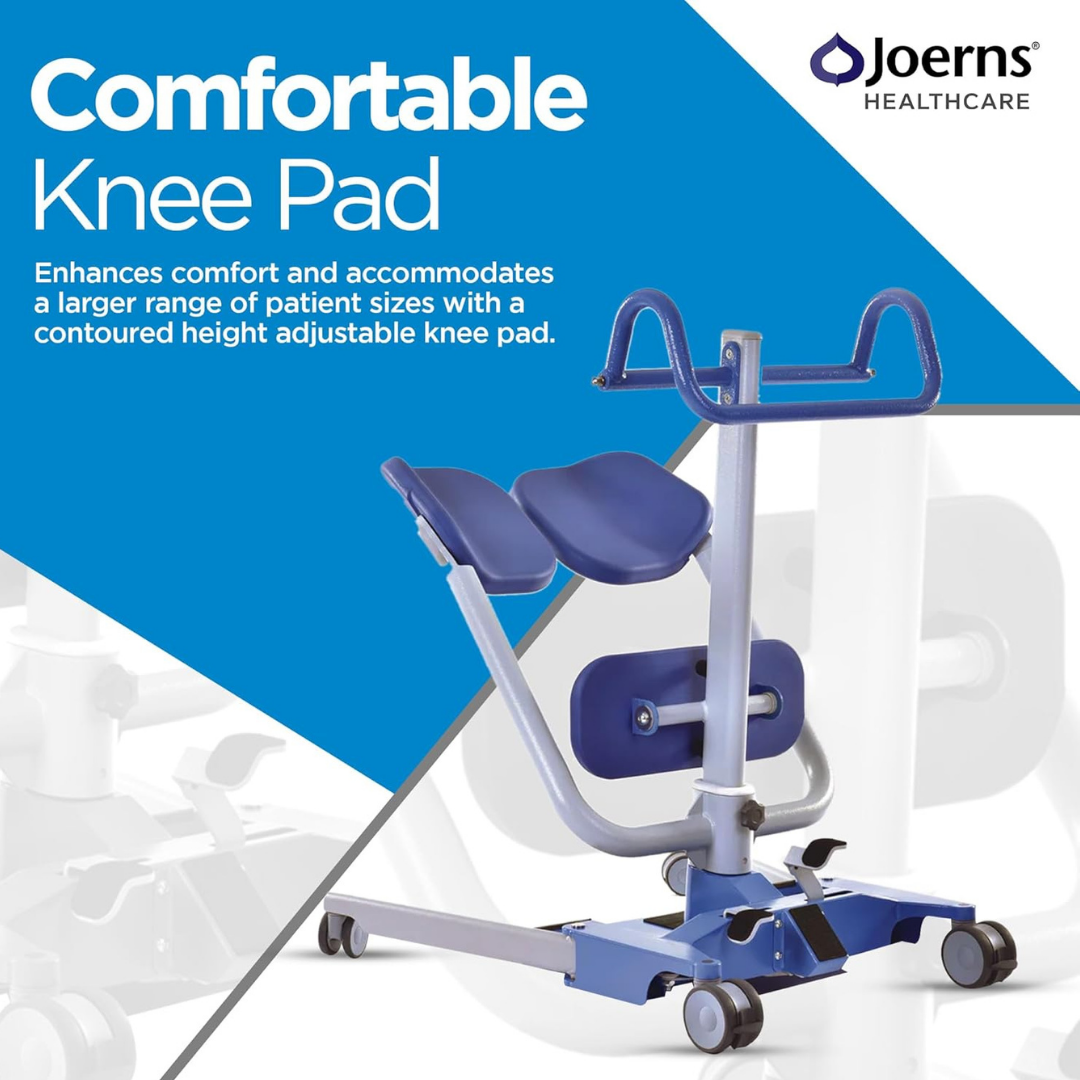

| Knee Pad Height (From Footplate) | 19.0″ |
| Turning Radius | 40.9″ |
| Front Casters | 3.0″ |
| Rear Casters | 4.0″ |
| Weights | |
| Base | 43 lbs |
| Seat Support Tubes Section | 21 lbs |
| Mast | 8.8 lbs |
| Total | 72.8 lbs |
| Environmental Conditions | |
| Operating Temperature | 41°F – 104°F |
| Relative Humidity (Operating) | 20% – 90% (non-condensing) |
| Storage Temperature | -4°F – 176°F |
| Relative Humidity (Storage) | 10% – 95% (non-condensing) |
This warranty applies to HoyerPro® Lifts only. It does not cover other models such as HML400, HPL700, HPL700WSC, HPL402, C-HLA, and their variations.
Mechanical & Electrical Components: Covered for two years from the date of delivery under normal use and service.
Aluminum Structural Components & Welds: Covered for the lifetime of the product from the delivery date.*
*Subject to standard warranty exclusions below.
This warranty does not cover:
Damage due to improper environmental conditions
Failure to maintain the product per user/service instructions
Unauthorized modifications, repairs, or alterations
Wear Items (e.g., batteries, casters, hydraulic pumps): Covered for 90 days from date of delivery
Warranty replacement parts: Covered until the expiration of the product’s original warranty period
Return of parts for inspection is required upon request (customer expense). Credit issued upon inspection approval.
Most service issues can be resolved by the facility’s Maintenance Department with guidance from Joerns Healthcare’s Product Service Team.
Parts are available and can be shipped next-day air (shipping charges apply).
If an on-site technician is needed, Joerns Healthcare may dispatch one at its discretion. Only our Product Service Department may authorize service calls.
This warranty is extended to the original purchaser of the equipment.
