The Forcemech Navigator Series, introduced in 2017, has become a hallmark of Forcemech’s dedication to quality and reliability. Recognized with numerous accolades, it has consistently ranked among the top portable power wheelchairs in the industry, earning praise from leading publications.
Looking ahead, the 2025 Navigator is set to deliver exciting advancements, including a state-of-the-art controller with an LED display and enhanced motors for improved performance and an elevated user experience. Stay connected with your local dealers to be among the first to experience these upgrades!
Key Features:
• TWO Forcemax® 24V 6.6Ah Lithium Batteries: Provides reliable power and extended travel range.
• 4-Point Suspension Frame: Ensures a smooth and stable ride across various terrains.

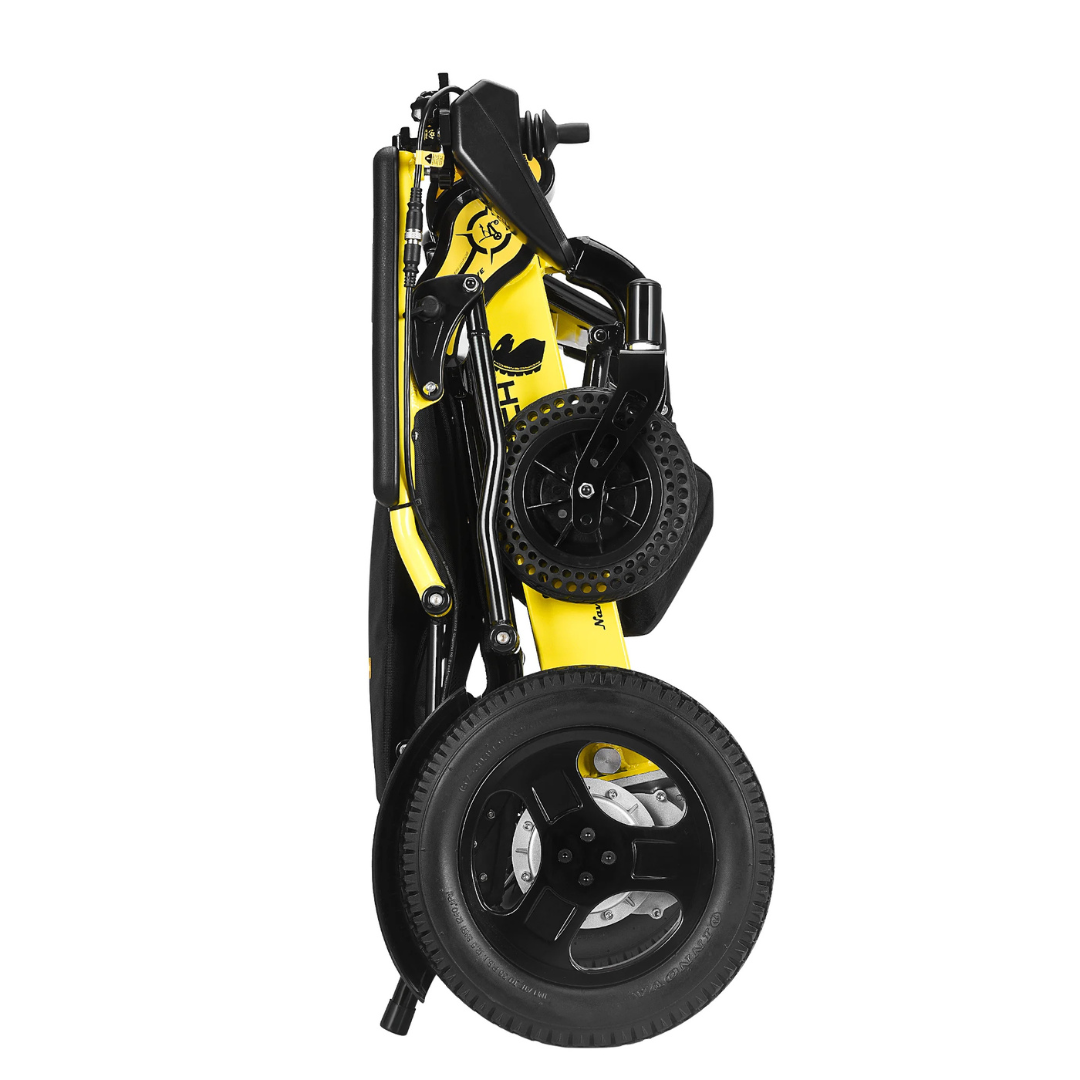

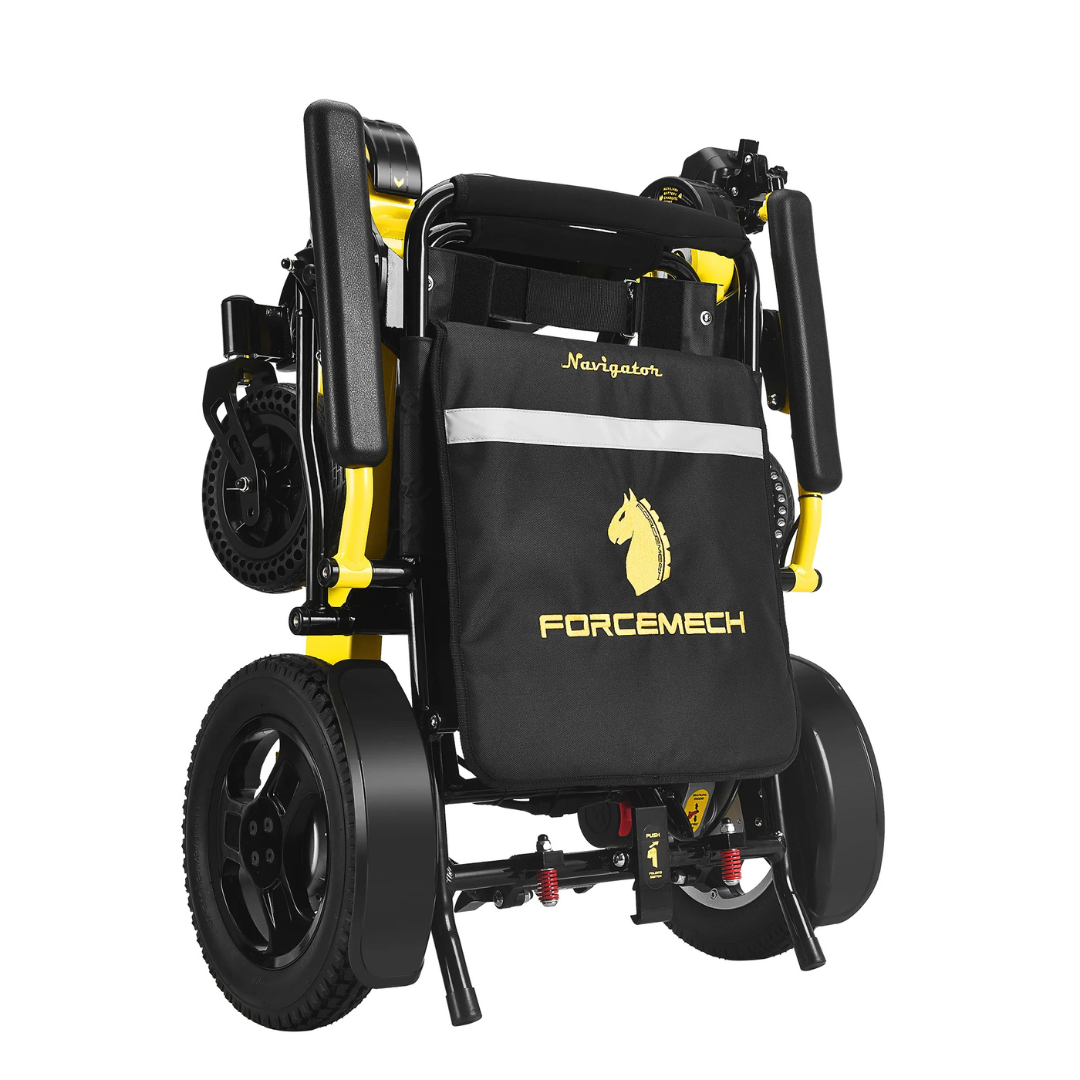

• Quick Folding and Unfolding: Offers effortless portability and convenient storage.
• Airline & Cruise Ready: The Navigator series is designed for portability, delivering unwavering performance and style for those who choose it.
• Quality and Reliability: Navigator series is made with the highest standards of material and engineering expertise, ensuring reliability for years of usage.
Specifications
• Power Chair Weight (Incl. Batteries): 60 lbs
• Maximum Weight Capacity: 397 lbs
• Maximum Climbing Slope: 6 degrees
• Maximum Speed: 4 mph
• Maximum Travel Distance: 10 miles
• Unfolding Dimensions (L x W x H): 38” x 25” x 37”
• Folding Dimensions (L x W x H): 25” x 14” x 31”
• Armrest Height (From Ground): 28”
• Seat Height (From Ground): 18”
• Seat Cushion Size (L x W x H): 18” x 18” x 2.75”
• Ground Clearance: 3.5”
• Frame Material: Aluminum Alloy
• Wheels Material: Polyurethane Non-Flat
• Size of the Front Wheels (D x W): 7” x 1.8”
• Size of the Rear Wheels (D x W): 12.5” x 2.3”
• Power Chair Turning Radius: 33”
• Battery Type: Lithium NCM 622
• Battery Capacity: 6.6 Ah
• Battery Voltage Output: DC 24V
• Battery Weight: 4 lbs
• Motor Type: Brushless Eco-Drive
• Motor Power: 250W
• Motor Voltage Input: DC 24V
• Brake System: Intelligent Electromagnetic Brake
• Controller Type: Dual Core Twin Drive
• Controller Power Input: AC 100-220V, 50-60Hz
• Voltage Output/Current: DC 24V, 2A
Downloads

Click Here To Download The Brochure

Click Here To Download The User Manual
Warranty
