Wheelchair Ramps Dimensions: A Practical Sizing Guide

A caregiver standing at a front porch often starts with a simple question: How long should the wheelchair ramp be? With a tape measure in hand, the answer can seem less obvious than expected. The height from the ground to the threshold, the available yard or driveway, the door swing, and the wheelchair or scooter being used all affect the final layout.

The most useful way to understand wheelchair ramps dimensions is to treat them as a planning tool. You'll measure the rise, choose a slope, calculate the sloped run, and reserve level landing space before selecting a product or beginning construction. The arithmetic is manageable, and doing it first can prevent a ramp that's too steep, too short, or impossible to place safely.

Why Wheelchair Ramp Dimensions Matter Before You Buy

A ramp purchase begins with four connected measurements:

1. Total rise, the vertical distance from the lower ground surface to the finished threshold or porch.
2. Slope ratio, which describes how steep the ramp will be.
3. Run length, the horizontal distance needed to overcome the rise at that slope.
4. Landing space, the level area where the ramp starts, ends, rests, or changes direction.

If you measure the rise incorrectly, every later calculation is wrong. If you choose a short run because the property has limited space, the resulting incline may be difficult for an independent wheelchair user and more demanding for a caregiver. If you calculate only the sloped section, the ramp may reach the door but leave no safe area for opening it.

The foundational U.S. accessibility standard uses a maximum 1:12 slope. That means 1 inch of vertical rise requires at least 12 inches of horizontal run. Under that rule, a 24-inch rise requires a 24-foot run, while a 30-inch rise requires a 30-foot ramp. The U.S. Access Board ramp guidance also specifies a clear ramp width of at least 36 inches between handrails where handrails are provided.

Start with the entryway, not the product catalog

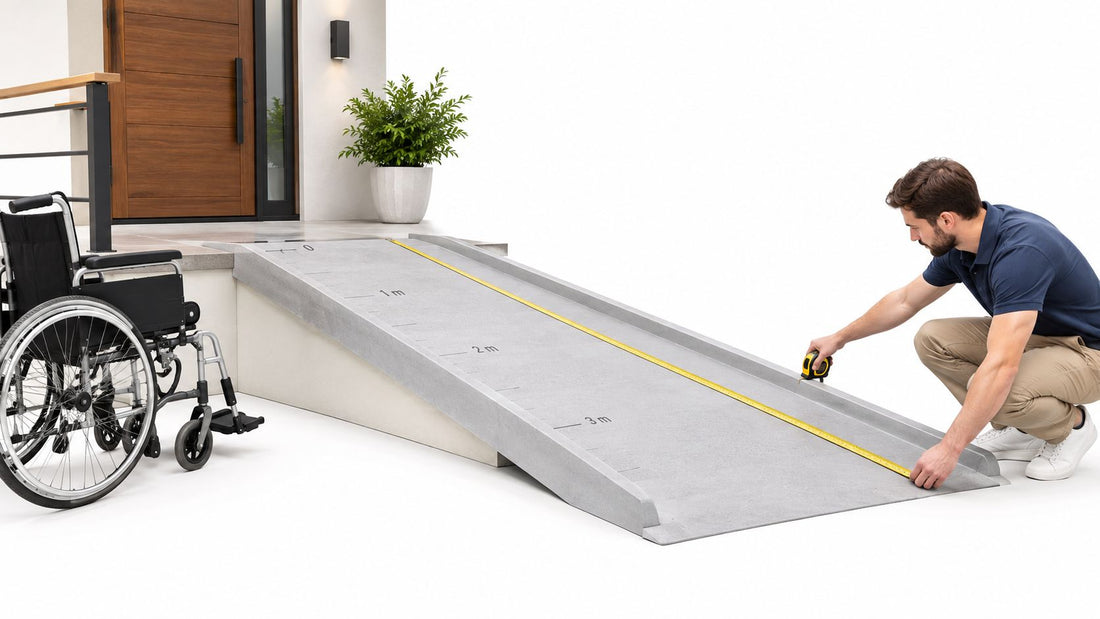

Measure the vertical rise at the actual entry point. Then measure the straight-line space available in the direction a ramp could extend. Include the door's swing area and the place where a wheelchair will pause before opening the door.

A correctly sized ramp helps reduce the chance of mid-ramp rollback, loss of steering control, or an awkward stop at the threshold. For more home-planning context, see this guide to wheelchair ramps for home.

By the time you compare products, you should know four answers: How high is the entry? How long must the ramp run? Where can the landings fit? Is the clear width suitable for the mobility device and helper? Those answers are more reliable than choosing a ramp based only on its folded length or appearance.

The 1 - 12 Slope Rule and How to Calculate Ramp Length

The 1:12 slope rule is easiest to use as a multiplication formula. Measure the rise in inches, then multiply that number by 12 to find the required horizontal run in inches. Divide by 12 again to convert inches of run into feet.

Suppose the finished floor is 18 inches above the ground. The calculation is:

• 18 inches of rise × 12 = 216 inches of run.
• 216 inches ÷ 12 = 18 feet of run.

Marking the tape measure at 18 feet gives you the sloped portion only. You'll still need level space at the bottom and top, and a longer rise may require an intermediate landing.

For a 24-inch rise, the arithmetic is:

• 24 inches × 12 = 288 inches.
• 288 inches ÷ 12 = 24 feet.

That's why a 24-inch porch can be challenging on a small lot. A shorter 1:10 comparison would require 240 inches, or 20 feet, but a steeper ramp changes the physical demands on the rider and helper. Confirm any alternative slope with the governing code and the mobility device manufacturer before using it.

The wheelchair ramp calculator guide can help organize the same rise-to-run calculation, but the calculator can't determine whether your landings, door clearance, or turning arrangement will work.

Convert the ratio into an angle

The slope angle can be calculated with:

Angle in degrees = arctan(rise ÷ run)

At 1:12, the incline is about 4.8 degrees. A 1:8 slope feels substantially steeper, while 1:16 feels gentler, because the run becomes longer for the same rise.

The table uses the ratio math directly. For every doorway, you only need to repeat the same process: measure rise, multiply by the ratio's run factor, convert to feet, and then add the space required for landings.

Maximum Rise Per Run and When Landings Become Required

A ramp run can't rise more than 30 inches before a landing is required, according to the 1991 ADA Design Standards. This limit separates a manageable ramp segment from an uninterrupted slope that can create fatigue and make stopping or steering harder.

A single-run ramp travels in one direction from the lower landing to the upper landing. A segmented ramp divides the climb into two or more sloped sections connected by level platforms. The choice isn't only about code. Side yards, alley access, landscaping, and the position of the front door often make a straight run impractical.

Consider a 36-inch porch rise:

• At 1:12, 36 inches of rise × 12 = 432 inches.
• 432 inches ÷ 12 = 36 feet of sloped run.
• Because one run can't exceed 30 inches of rise, divide the climb into two 18-inch rises.
• Each segment requires 18 feet of run.
• Add an intermediate landing between the two segments.

The landing itself must be level. The Access Board technical guide states that a level change greater than 1:48 isn't permitted at landings, so the platform shouldn't function like another slope.

A 20-inch rise can fit within one run at 1:12 because it produces a 20-foot sloped run, below the maximum rise per run. Top and bottom landings are still needed.

Product descriptions may call compact layouts switchbacks, L-shaped ramps, or U-shaped ramps. Each turn needs a properly sized landing, and the available turning area must suit the wheelchair or scooter rather than forcing a pivot on the slope.

Landing Sizes at the Top, Bottom, and Turns

A landing is more than a rest area. It's the level transition that lets a rider stop, align with a doorway, turn, and continue without trying to perform those movements on an incline.

ADA guidance and common ramp sizing references use a landing at least 60 inches long at the top and bottom of each run. At turns, a 60 by 60-inch platform is a common planning dimension, as described in this ADA ramp landing reference.

Measure the landing as usable floor space

Use the tape measure to verify the clear, unobstructed platform area. A landing shouldn't be narrowed by a door, railing post, planter, wall, or threshold lip.

For a U-turn arrangement, plan one 60 by 60-inch platform where the first ramp ends, then allow the wheelchair to turn before the next segment begins. If the layout uses a second platform for the continuing transition, that platform should also provide a clear 60 by 60-inch area. The exact arrangement depends on the direction of travel and the surrounding walls, but the chair shouldn't need to pivot while still on the slope.

Landings should be level, flush with the threshold, and free of a lip that could catch a front caster. At the top, check that the user can stop without blocking the door swing. At the bottom, leave enough clear area for the chair to exit the slope before encountering a walkway edge, vehicle, or landscaping.

When a run reaches the 30-inch maximum rise, insert an intermediate landing before continuing. Draw the ramp on paper first, including each 60-inch platform, then compare that footprint with the porch and property orientation.

ADA Standards Compared with Canadian CMHC Guidelines

U.S. and Canadian guidance share the same central concern, a gradual, usable route with adequate maneuvering space. The U.S. benchmark is a 1:12 maximum slope, while Canadian guidance from the Canada Mortgage and Housing Corporation recommends a 990 mm clear width, or 39 inches, and reiterates the 1:12 ratio in its accessibility guidance.

The CMHC accessible housing publication provides a useful Canadian-market reference. It's especially relevant when a family compares products across borders, because a ramp that matches one jurisdiction's width benchmark may not match another's.

The two systems shouldn't be treated as interchangeable building approval. A family should check the local authority, property type, and applicable code before ordering a permanent system.

The important practical difference is not “which ramp is shorter.” Width, landing placement, surface conditions, door operation, and local enforcement can determine whether the installed ramp works in daily life.

Permanent Versus Portable Ramp Dimensions

Permanent and portable ramps solve different dimension problems. A permanent installation usually starts with the entry height and works outward using the full 1:12 slope, while a portable ramp often starts with the storage space available in a vehicle or closet and then requires the buyer to evaluate the resulting slope.

For a permanent ramp, a 24-inch rise needs a 24-foot run, plus the required landing areas. The clear path remains at least 36 inches where the U.S. standard applies. This approach prioritizes a fixed route that can support repeated independent or assisted use.

A portable ramp may be selected because it folds or stores within a vehicle. Suppose a 10-foot portable ramp is used at a 24-inch rise:

• 10 feet = 120 inches of run.
• 120 inches ÷ 24 inches of rise = 5.
• The resulting ratio is 1:5.

That's much steeper than 1:12. It may be appropriate for a helper loading an unoccupied chair in a controlled situation, but it can be risky for independent use or for a powered mobility device. Always follow the ramp's instructions, weight rating, and the mobility device manufacturer's guidance.

Portable ramps need a different sizing conversation

The World Health Organization's portable ramp guidance describes alternative sizing logic for portable and temporary use. It includes a length of at least eight times the step height, width ranges of 91 to 107 cm, and transport-length considerations tied to vehicle storage. Those criteria address portability and assisted use, not permanent ADA route design.

Use portable ramps for wheelchairs to compare the product type with the rise, storage space, and assistance available. As a practical rule, plan around 12 inches of portable ramp length for each 1 inch of rise when safer assisted loading is the priority, then verify the actual application with the manufacturer.

Sizing Ramps for Thresholds, Scooters, and Vehicles

Thresholds, scooters, and vehicle loading ramps use the same rise-to-run logic, but the starting height and user demands differ. A low door lip may be manageable with a compact threshold ramp, while a vehicle cargo floor can create a much larger rise and a longer required run.

A 2-inch lip at a 1:6 ratio needs:

• 2 inches × 6 = 12 inches.
• The ramp needs 12 inches of run.

A 3-inch rise at 1:12 needs:

• 3 inches × 12 = 36 inches.
• The ramp needs 36 inches of run.

Scooters often need a gentler approach because their wheelbase and turning behavior differ from a manual wheelchair. A wider usable surface can also make alignment easier, particularly for three- and four-wheel scooters. Vehicle ramps may start at a cargo floor around the height of a van or SUV entry, so a short folding ramp can create a steep angle even when it reaches the vehicle.

These application ranges are planning categories, not permission to ignore the product instructions or local requirements. If a caregiver will push an unoccupied chair, a steeper portable ramp may be workable under controlled conditions. A chair rolling back down without assistance is a different and more dangerous situation.

For broader home-access planning, code-smart accessible bathrooms can help you think about the ramp as part of a complete route into and through the home. For SUV-specific planning, see wheelchair ramps for SUVs.

Width, Edge Protection, and Clearance Dimensions

A correct slope doesn't make a ramp safe if the chair can't pass comfortably or a wheel can slip off the side. The U.S. Access Board specifies a minimum clear width of 36 inches measured between handrails where provided. That's a basic pass-through dimension, while a wider path can feel more comfortable when a caregiver is assisting, the device is powered, or turning space is nearby.

Edge protection keeps wheels and cane tips from leaving the ramp surface. ADA guidance uses a 2-inch curb or barrier, with a barrier at least 4 inches high where there's no raised landing. Check the installed product and local requirements because edge treatments vary by ramp type.

Details to verify before installation

• Handrail height: Place gripping surfaces 34 to 38 inches above the ramp surface.
• Grip size: Handrail gripping surfaces should measure 1.25 to 2 inches in diameter.
• Handrail extension: Plan a 60-inch-long segment continuing beyond the top and bottom landings where the applicable standard requires it.
• Headroom: Maintain at least 80 inches of overhead clearance along the route.
• Wall clearance: Leave at least 1.5 inches between the handrail and a wall.
• Surface: Select a firm, slip-resistant texture that maintains traction in wet conditions.

The handrails for ramps resource offers useful context when you're comparing grip and installation considerations. Also check the mobility device's width and turning needs with this guide to average wheelchair width, rather than assuming every chair fits the same way.

Quick-Reference Table for Common Rise Heights

The table below converts the same rise into three planning slopes. The footprint column adds 60 inches, or 5 feet, at the top and another 5 feet at the bottom. It shows the horizontal space for the sloped run plus those two end landings. It doesn't include an intermediate landing or the extra geometry needed for a turn.

At 1:12, the shortcut is simple: rise in inches equals run in feet. A 24-inch rise becomes 24 feet of sloped run. The full multiplication is still rise × 12 in inches, but the conversion cancels neatly.

For 1:16, multiply the rise in inches by 1.33 to estimate run in feet. For 1:20, multiply the rise by 1.67. These are planning shortcuts, so round up when the result doesn't fit the product's available length.

Planning rule: The table measures horizontal footprint, not the diagonal surface length and not the complete footprint of a switchback.

A rise above 30 inches needs a segmented arrangement with an intermediate landing under the ADA design rule. Add the platform's own dimensions and any change in direction to the table's footprint before deciding whether the property can accommodate the system.

Common Sizing Mistakes and How to Avoid Them

A ramp can match the expected slope and still fail at the doorway. Most problems come from treating one measurement as the whole design.

• Wrong rise reference: Measure from the actual lower surface to the finished threshold, including the sill or transition height.
• Slope without landings: Add level space at the top and bottom before ordering. A sloped panel that reaches the porch isn't enough if the chair can't stop or the door can't open.
• Insufficient width: Confirm the clear width between rails, then compare it with the wheelchair, scooter, or power chair's usable maneuvering space.
• Portable ramp too short: Calculate the ratio created by the stored product length and the actual vehicle or step height. Don't assume a ramp works because it reaches the cargo floor.
• Missing edge protection: Inspect every raised side and turn for a curb or barrier that prevents a wheel from slipping away.

Use a short self-audit before you buy:

1. Measure the rise at three locations and investigate any difference.
2. Confirm clear width between handrails.
3. Mark the top and bottom landing footprints.
4. Check for door swing, threshold lip, overhead obstacles, and wet-surface traction.
5. Recheck the slope against the code that governs your jurisdiction and the mobility device manufacturer's instructions.

The dimensions work as a connected set. Correcting the rise may change the run, which may require a turn, which may require a larger landing.
