Multi-Functional Electric Bathtub & Floor Lift Chair | VOCIC AX10

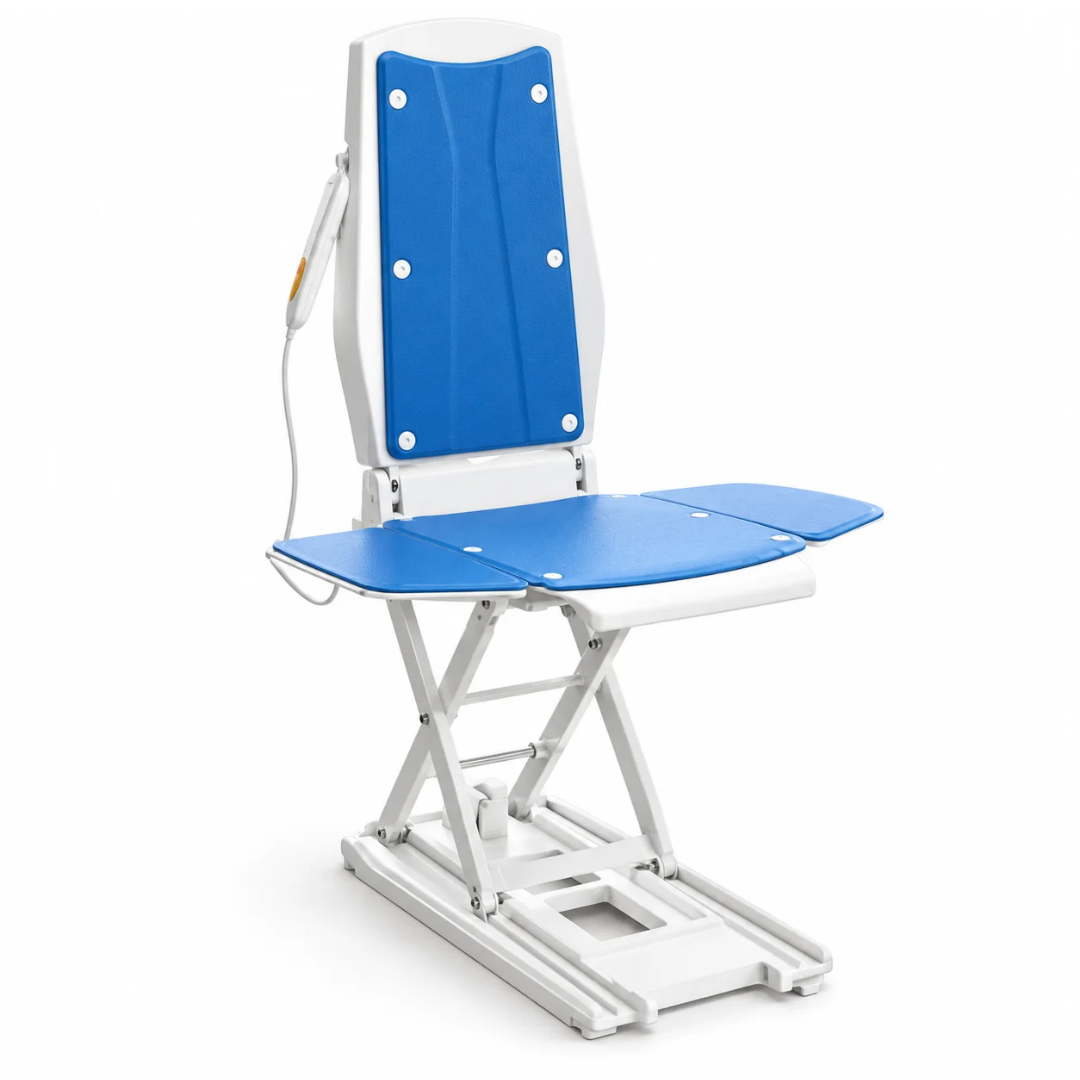

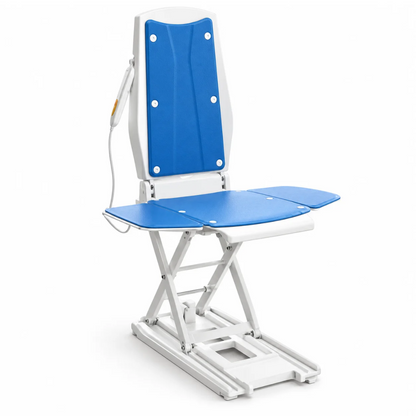

The AX10 is a rechargeable powered bath lift designed to lower a seated user toward the bottom of a bathtub and raise them to a more accessible transfer height.

It may help seniors, people with limited lower-body strength, individuals recovering from surgery, and users who have difficulty lowering into or rising from a bathtub.

The recommended user weight capacity is 300 lbs. Although some supplied materials reference 308 lbs, users should follow the lower 300-lb limit unless the manufacturer confirms otherwise.

The seat lowers to approximately 3.1 inches from the supporting surface. Some specifications list 2.9 inches, so minor variation may occur by configuration or measurement method.

The seat rises to approximately 19.7 inches.

The seat travels approximately 16.6 inches between its lowest and highest positions.

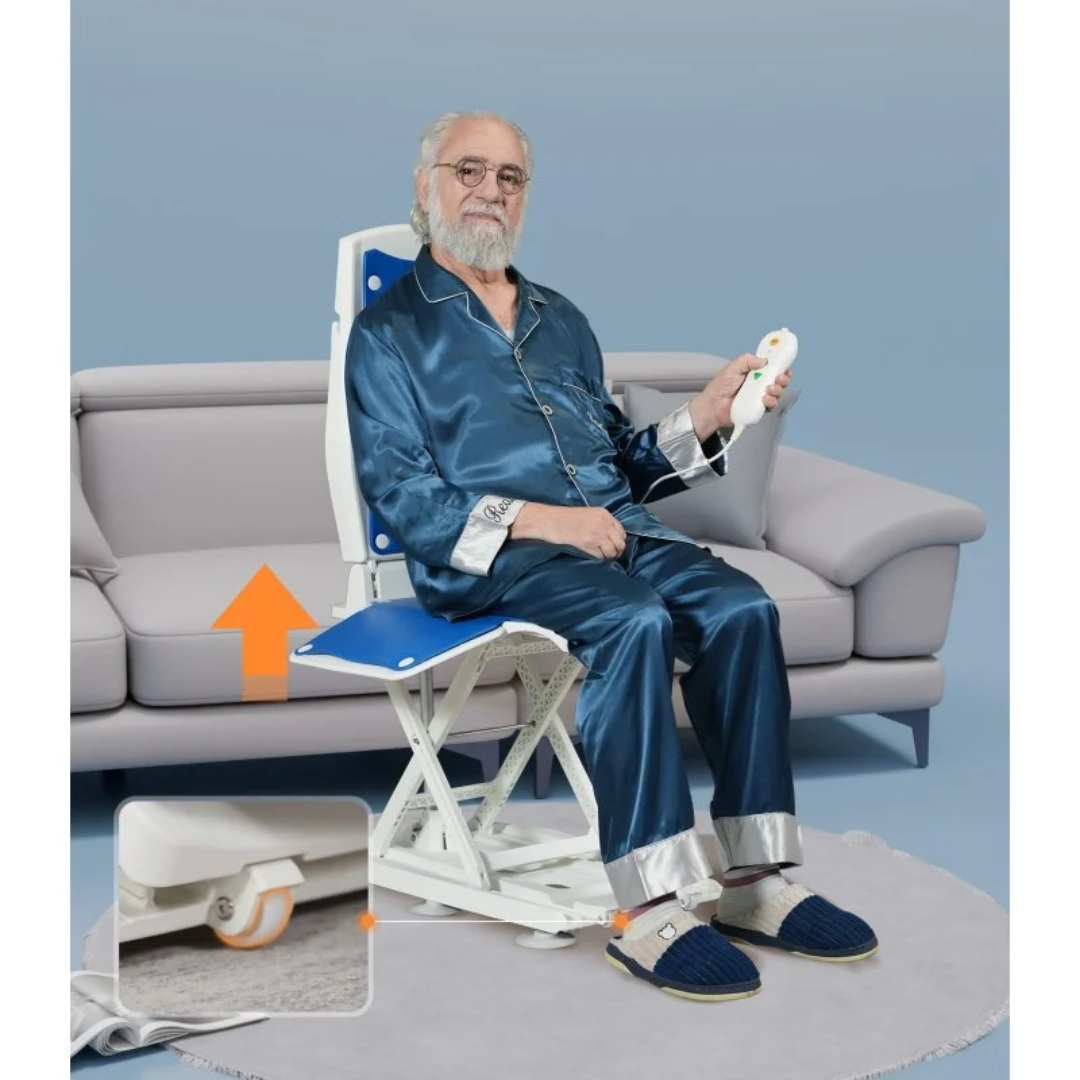

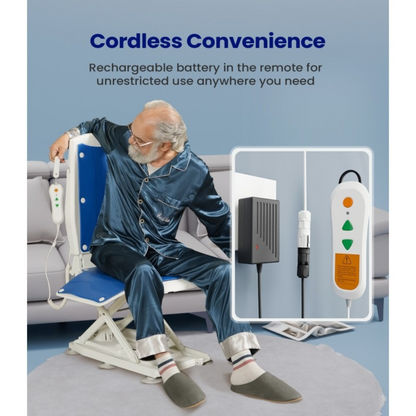

The included hand controller provides push-button operation for raising and lowering the seat.

No. It operates from its rechargeable battery while lifting. Never connect the charger while the lift is occupied or near water.

The AX10 uses a 14.8V, 2.2Ah rechargeable battery.

A full charge takes approximately 2.5 hours.

The manufacturer’s information indicates approximately 10 lifting cycles per charge under test conditions. User weight, temperature, battery age, and operating conditions can affect performance.

The included charger accepts 100–240V AC input.

No. The charger must remain dry and should only be used in a suitable location away from the bathtub, shower, or other water sources.

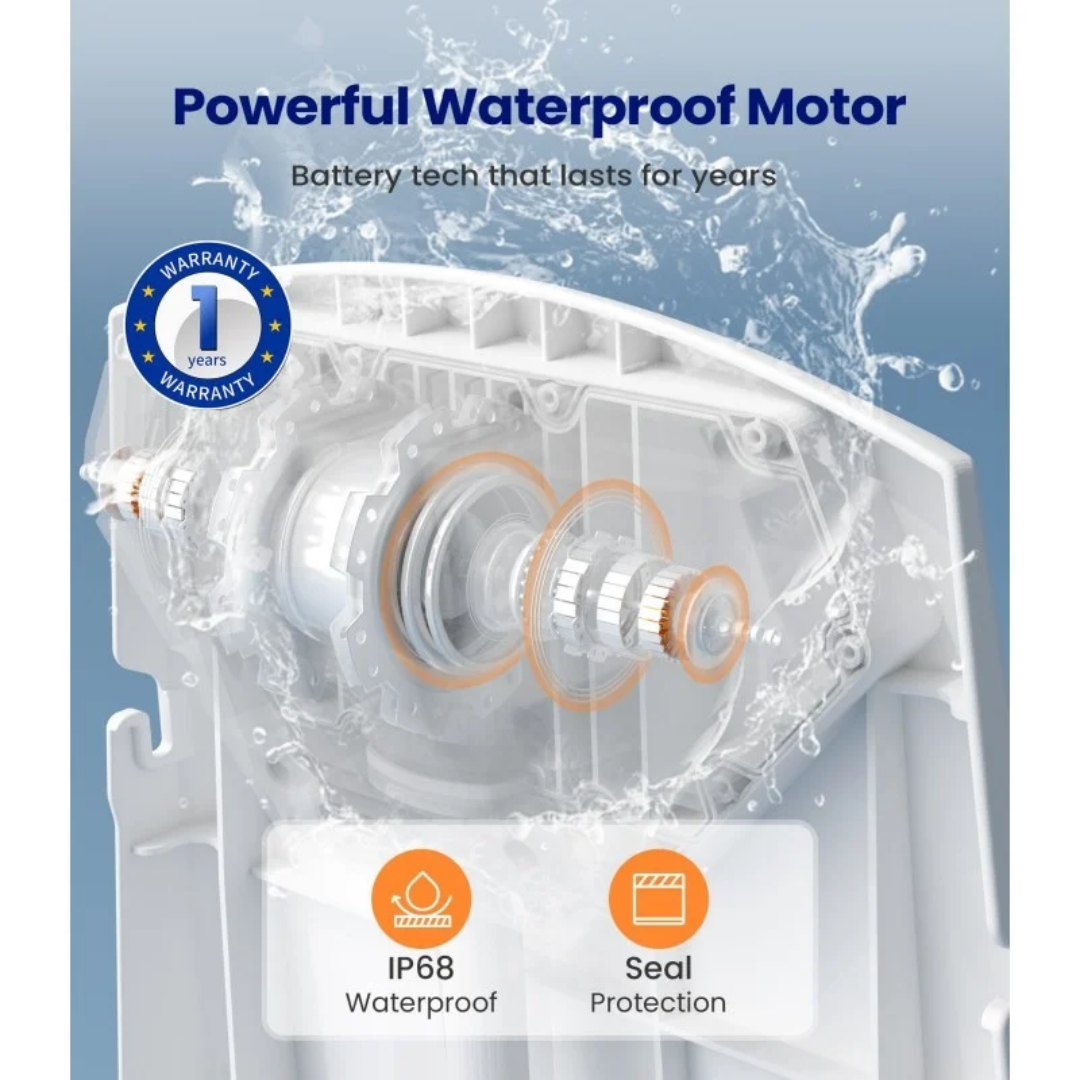

The chair is designed to resist water and submersion under the manufacturer’s specified test conditions. The rating does not apply to the charger and does not replace the operating and maintenance instructions.

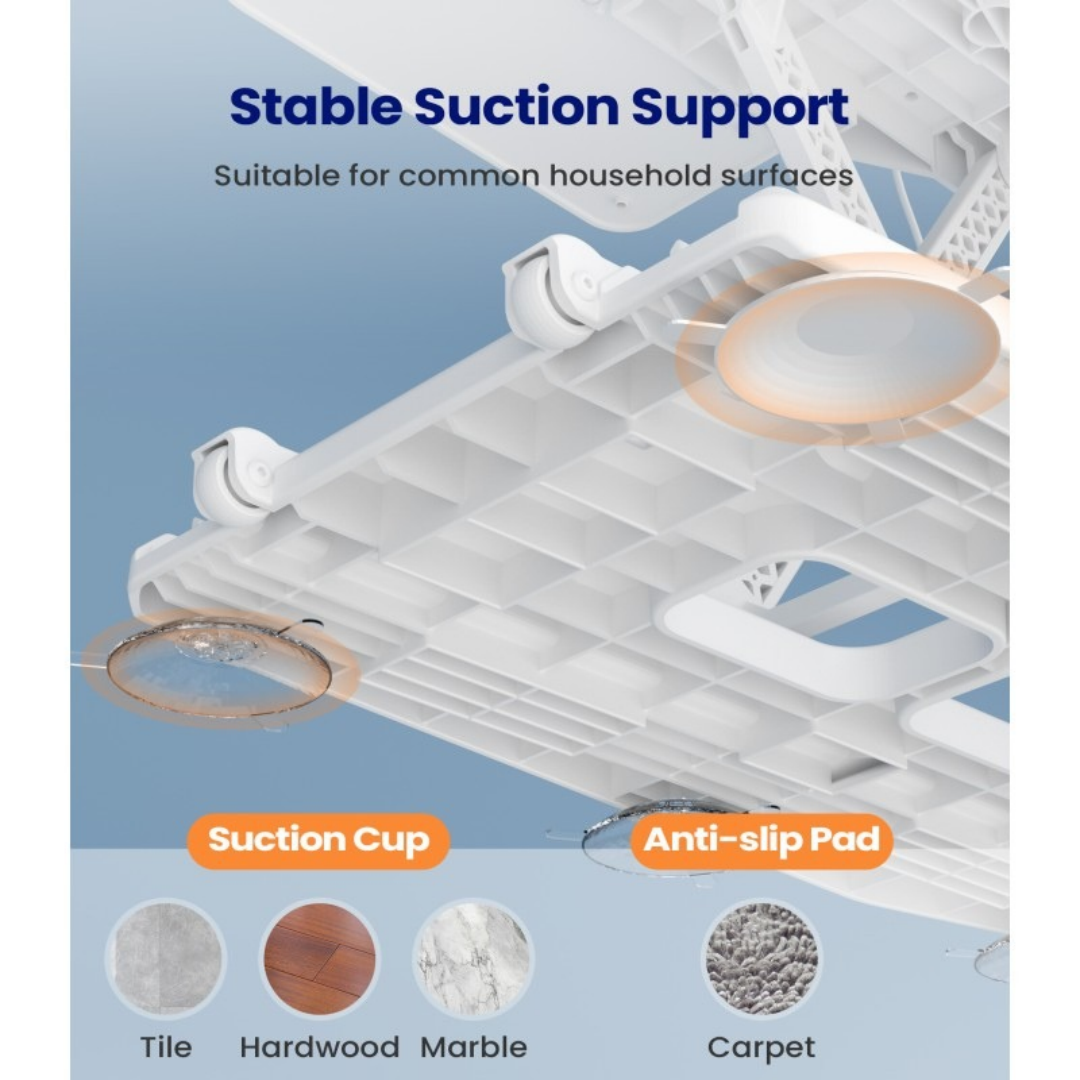

Six large suction cups attach the base to a clean, smooth, compatible tub surface.

Each suction cup measures approximately 3.9 inches in diameter.

Yes. The suction cups are replaceable when they become worn, damaged, or unable to maintain proper adhesion.

No. Textured, porous, curved, dirty, or damaged surfaces may prevent a secure seal. Confirm bathtub compatibility before use.

Before every use, inspect them for cracks, deformation, contamination, or loss of flexibility. Confirm that all six cups are securely attached to the tub.

The seat measures approximately 20.8 inches long by 15.7 inches wide.

The product weighs approximately 30 lbs.

The frame combines steel and plastic components, while the cushion is made from PVC.

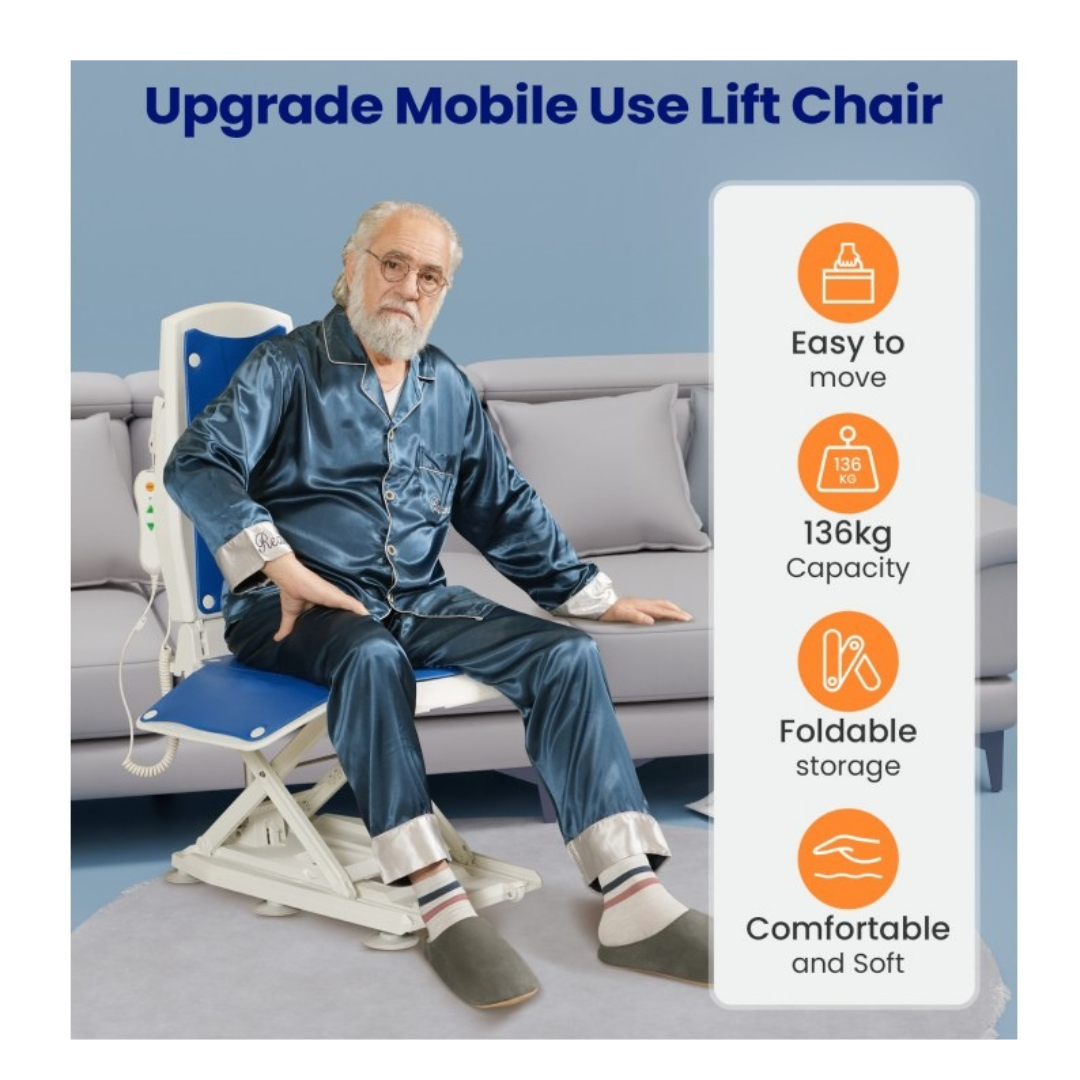

The listed rated load is 1400 N, with a recommended user weight capacity of 300 lbs.

A reclining function is not stated in the supplied specifications. Confirm available positioning features for the exact model before ordering.

The provided information identifies it as a bathtub lift. Do not use it for floor recovery or another unapproved purpose unless the manufacturer’s manual specifically permits that application.

The included carpet pads may support approved use on certain dry indoor surfaces. Follow the manufacturer’s instructions and do not assume they make every surface safe or compatible.

Use it only in locations and configurations expressly approved in the AX10 manual. Bathtub compatibility does not automatically mean it is suitable for every shower.

No. A bath lift can assist with lowering and raising, but it cannot eliminate the risk of slipping, falling, or injury.

That depends on the user’s balance, strength, cognition, transfer ability, and care plan. Some users may require supervision or hands-on assistance.

Inspect the battery charge, hand controller, lifting mechanism, frame, cushion, suction cups, cables, and connections. Do not use the lift if any component is damaged or loose.

Yes. Fully charge the battery according to the manufacturer’s instructions before initial operation.

Battery behavior depends on the control system. Check the charge before every bath and follow the manual’s low-battery and emergency procedures.

No. Disconnect the charger before moving the lift into the bathing area or allowing anyone to use it.

Rinse or wipe approved chair components with mild soap and water, then dry them thoroughly. Follow the manual for cleaning the actuator, controller, and electrical connections.

Avoid abrasive or corrosive cleaners unless approved by the manufacturer, as they may damage the cushion, frame, seals, or suction cups.

The listed product dimensions are approximately 28" × 16.9" × 8.7". Confirm how these measurements apply to the chair’s position before checking tub fit.

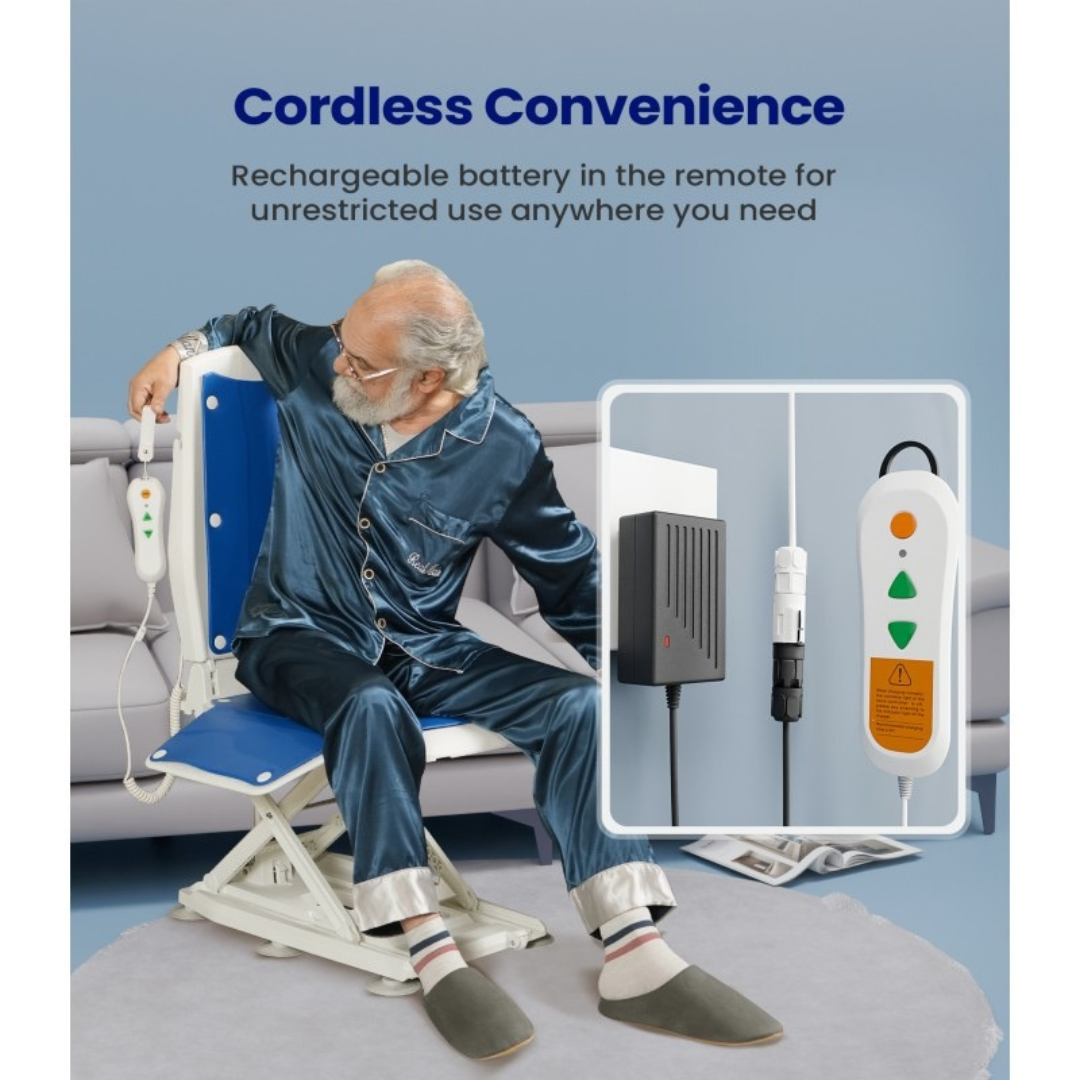

The package includes the hand controller, charger, back plate with linear drive and back pad, base with seat cushion, six suction cups, carpet foot pads, and instruction manual.

The shipping carton measures approximately 30.7" × 18.9" × 11" and weighs about 33.1 lbs.

The supplied information references FDA, UKCA, and CE-related markings. Confirm the exact regulatory status and documentation with the manufacturer; FDA registration or listing should not be interpreted as FDA approval.

Measure the bathtub floor, interior width and length, wall height, transfer area, and available clearance. Also compare the user’s dimensions and weight with the chair specifications.

No. The AX10 is intended for seated use only. Never stand, kneel, or use it as a step stool.

Yes. After installation, operate it through a complete cycle without a user to confirm stable placement and proper function.

Store it clean, dry, and charged according to the manufacturer’s instructions. Keep the charger and electrical accessories away from moisture.

Professional guidance is recommended for users with significant weakness, impaired balance, limited trunk control, cognitive concerns, or complex transfer needs.
