Med-Mizer EX8000 ComfortWide Bariatric Width Adjusting Electric Bed

Key Features & Benefits

Power Width Expansion: Adjust: 35"-48"
High Weight Capacity: 800 lbs
Low Bed Height for Fall Prevention: Adjustable 9.5"-25.5"
Available in 35”, 39”, 42”, and 48” Mattress Options
Includes: Cardiac Chair position, Trendelenburg, Head and foot articulation

$6,525.00

$6,525.00 $7,556.00

Sale Sold out

Part Number: EX8000-6355

Low stock

Quantity

This product’s estimated delivery is 2–4 days and ships from the closest facility to you.

Similar Products

View Product Details

Med-Mizer ComfortWide™ Bariatric Electric Bed

The Med-Mizer EX8000 ComfortWide™ Bariatric Electric Bed is a premium, high-performance solution designed to deliver maximum versatility, safety, and patient comfort. Featuring motorized width expansion up to 48 inches, advanced positioning, and ultra-reliable construction, this bed adapts to meet the needs of virtually any patient in homecare, long-term care, and clinical environments.

Engineered for both patients and caregivers, the EX8000 combines innovative technology, easy transport, and superior support—making it one of the most flexible bariatric beds available today.

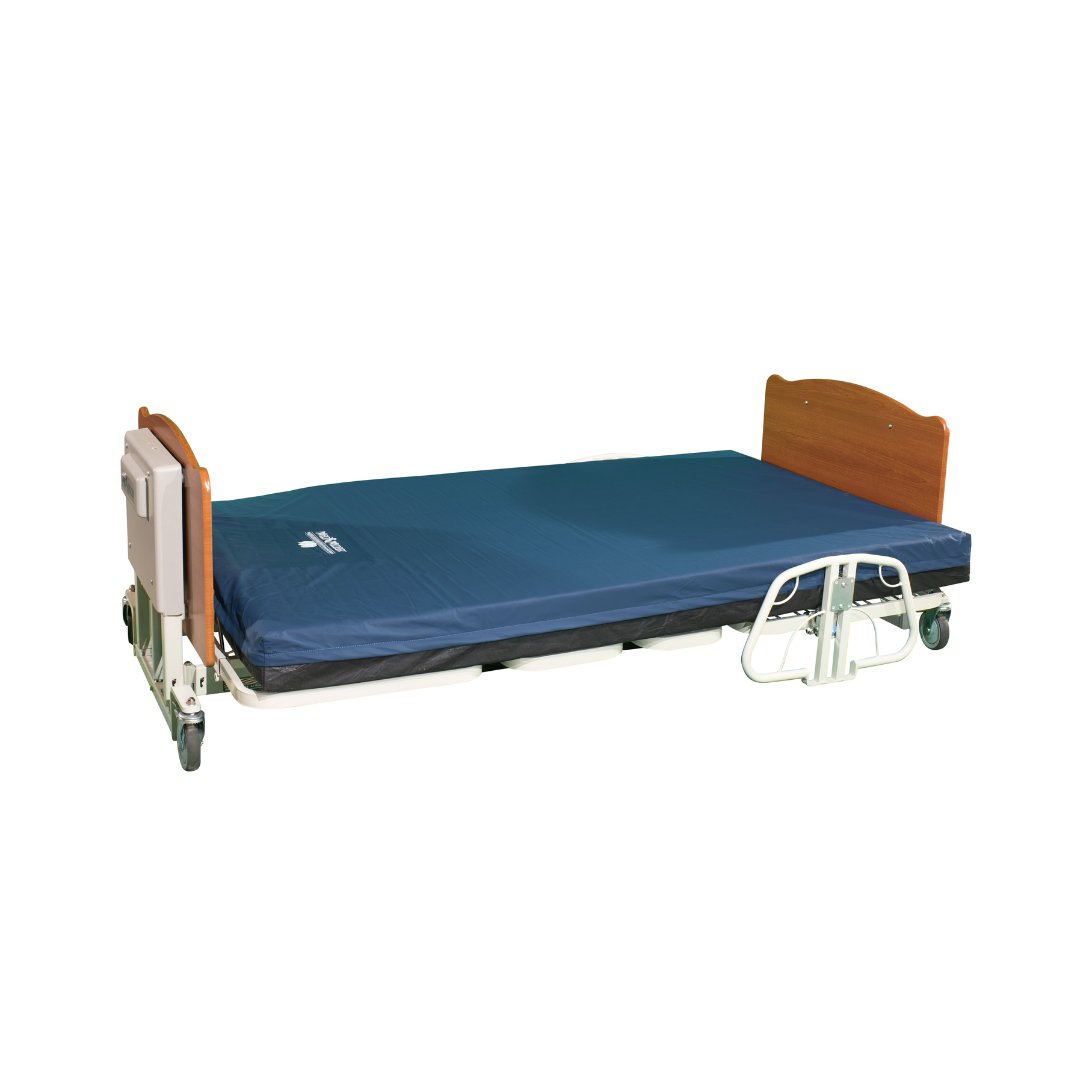

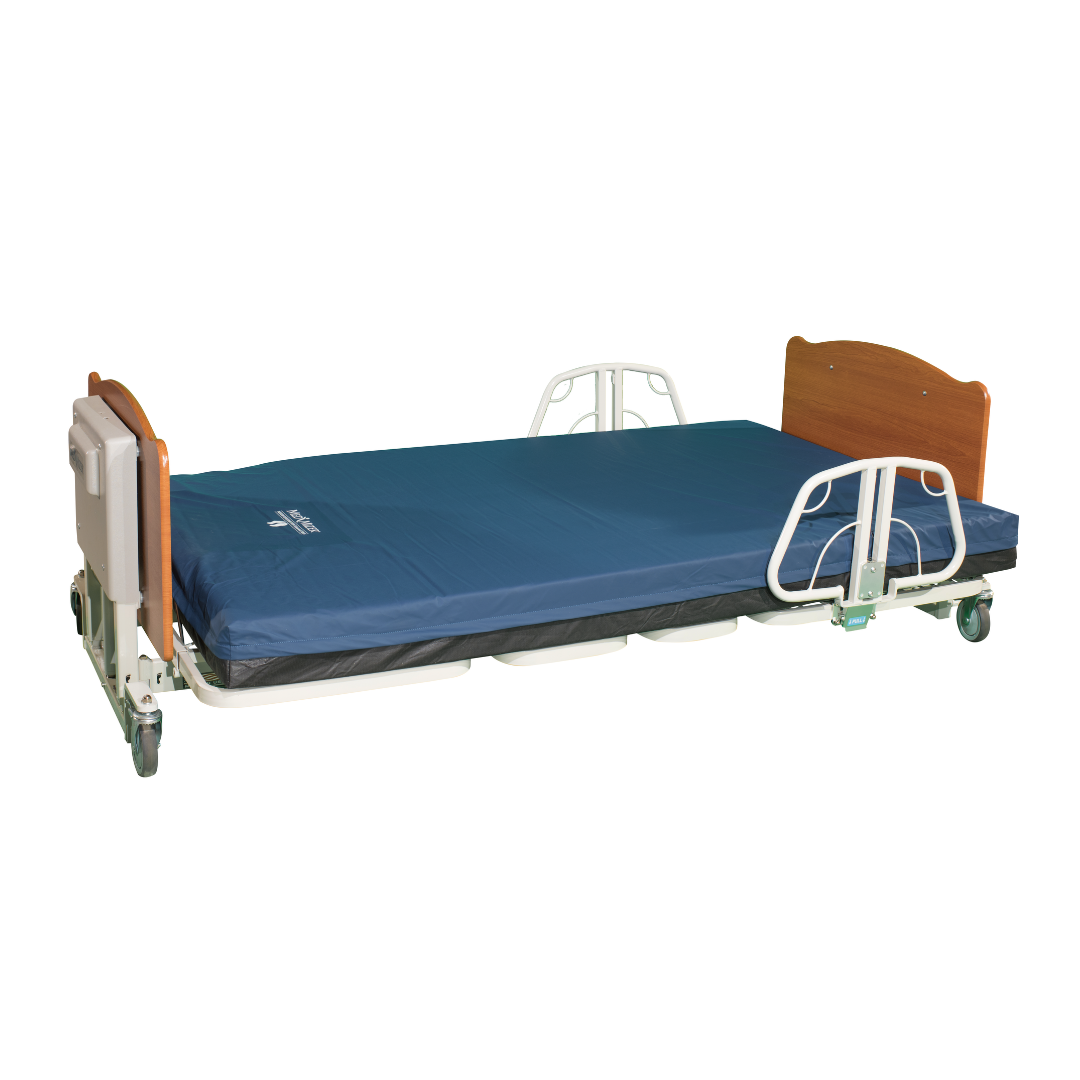

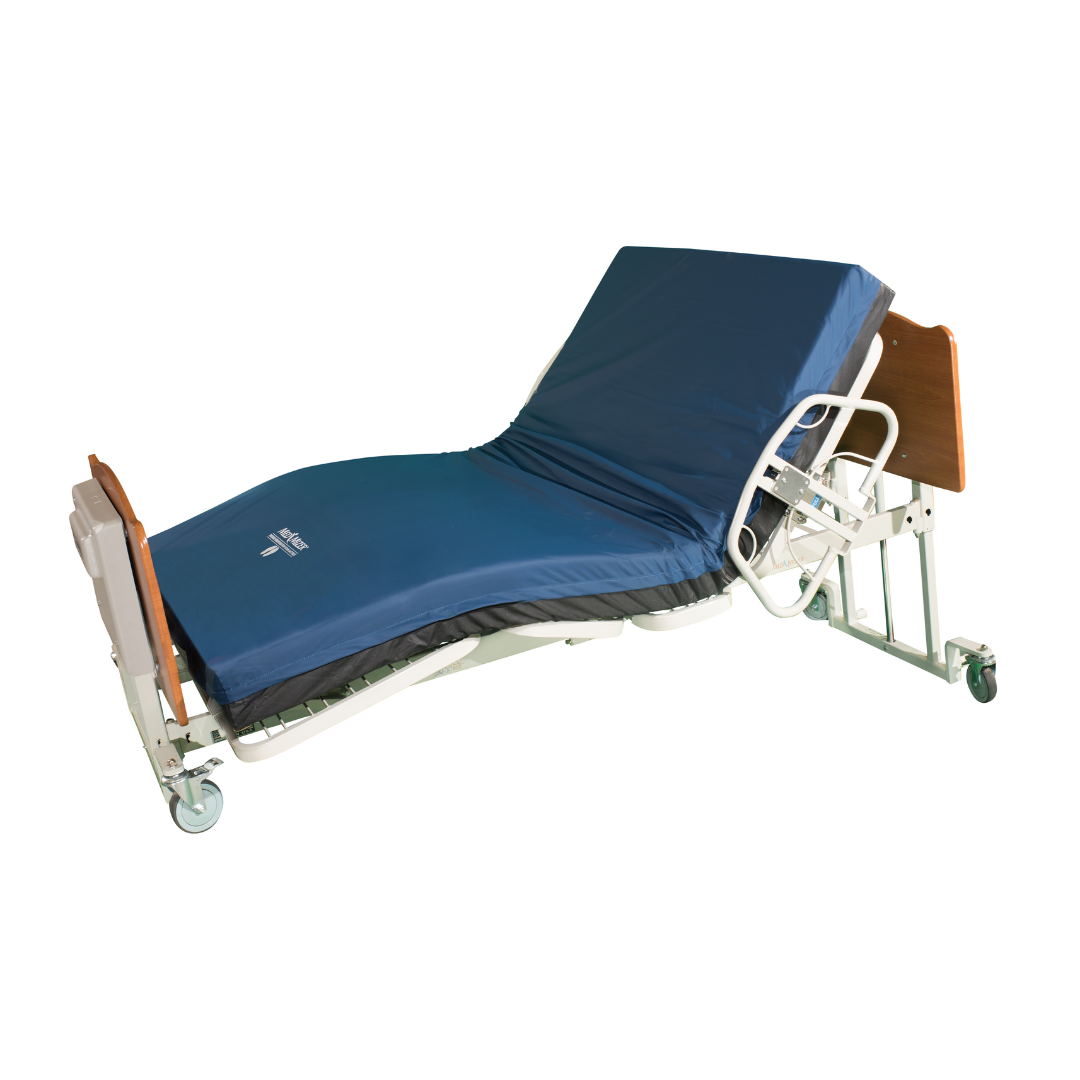

Optional Mattress – Super Elite Support

Pair with the Med-Mizer Super Elite Mattress System for enhanced care:

Advanced pressure redistribution
Multi-zone support with memory foam comfort layer
Promotes proper spinal alignment and pressure relief
Ideal for long-term care and bariatric patients

The ComfortWide Bed Is Ideal For:

The Med-Mizer EX8000 ComfortWide™ Bed is designed to accommodate a wide range of patient needs, making it one of the most versatile bariatric and hi/low beds available.

✔ Bariatric & Larger Patients

✔ Facilities Serving Multiple Patient Types

✔ High Fall-Risk Patients

✔ Homecare Patients with Advanced Needs

✔ Patients Requiring Frequent Positioning

✔ Caregivers & Healthcare Staff

✔ Patients with Limited Mobility or Long-Term Bed Use

✔ Facilities Prioritizing Safety & Efficiency

Key Features & Benefits

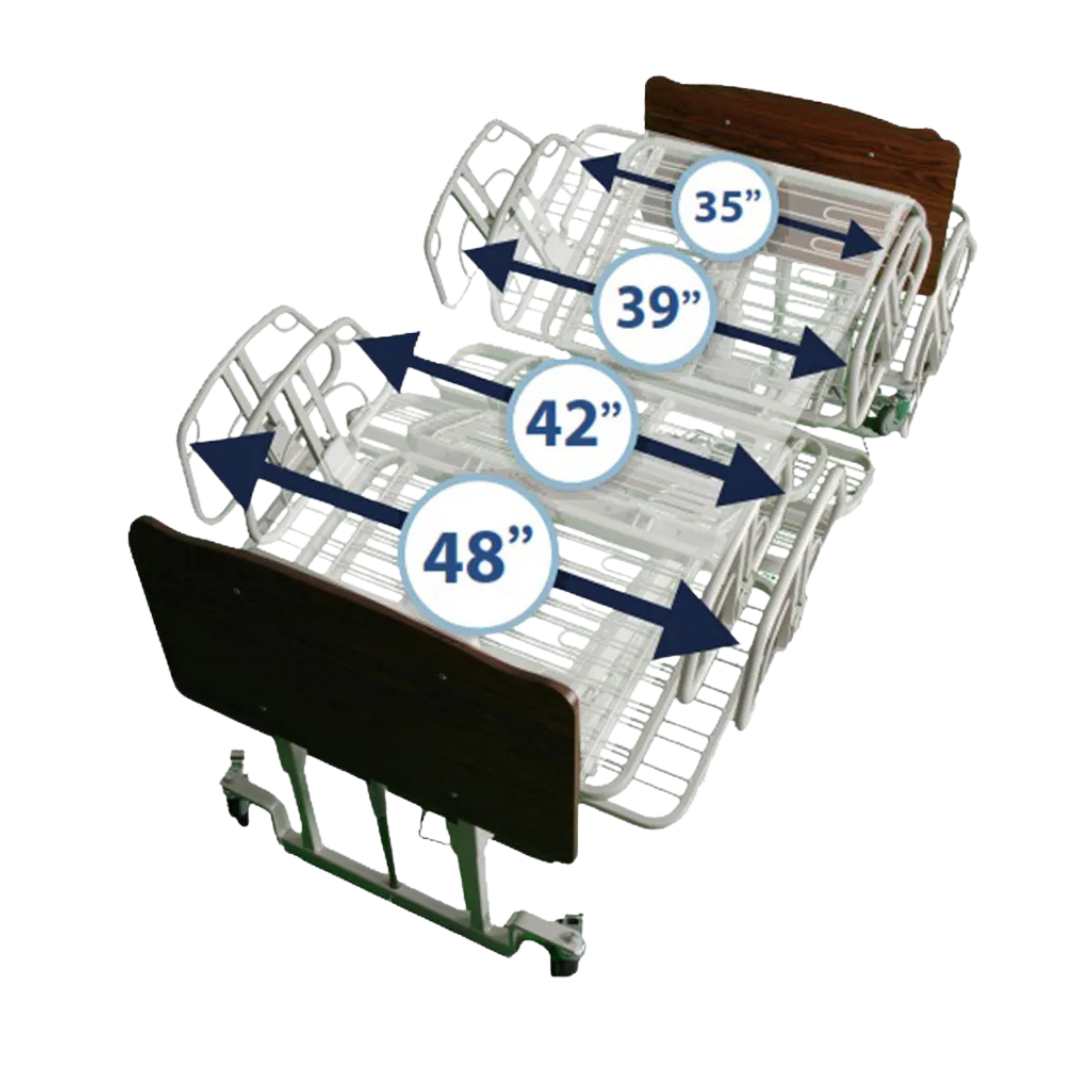

Power Width Expansion (Up to 48”)
Adjust bed width at the touch of a button for enhanced comfort and bariatric support.
High Weight Capacity (Up to 800 lbs)
Engineered for heavy-duty performance across a wide range of patient needs.
Advanced One-Touch Positioning
Includes:
- Cardiac Chair position
- Trendelenburg & Reverse Trendelenburg
- Head and foot articulation
Clinical-Contour® Technology
Helps reduce skin shear and minimizes repositioning for improved comfort and skin integrity.
Low Bed Height for Fall Prevention (As Low as 9”)
Reduces injury risk for high-fall-risk patients.
Adjustable Height Range for Caregiver Access
Raises up to 25.5” (optional 30.5”) for safer transfers and patient care.
Customizable Frame for Any Care Setting
Adapts to various patient sizes and environments, reducing the need for multiple bed types.

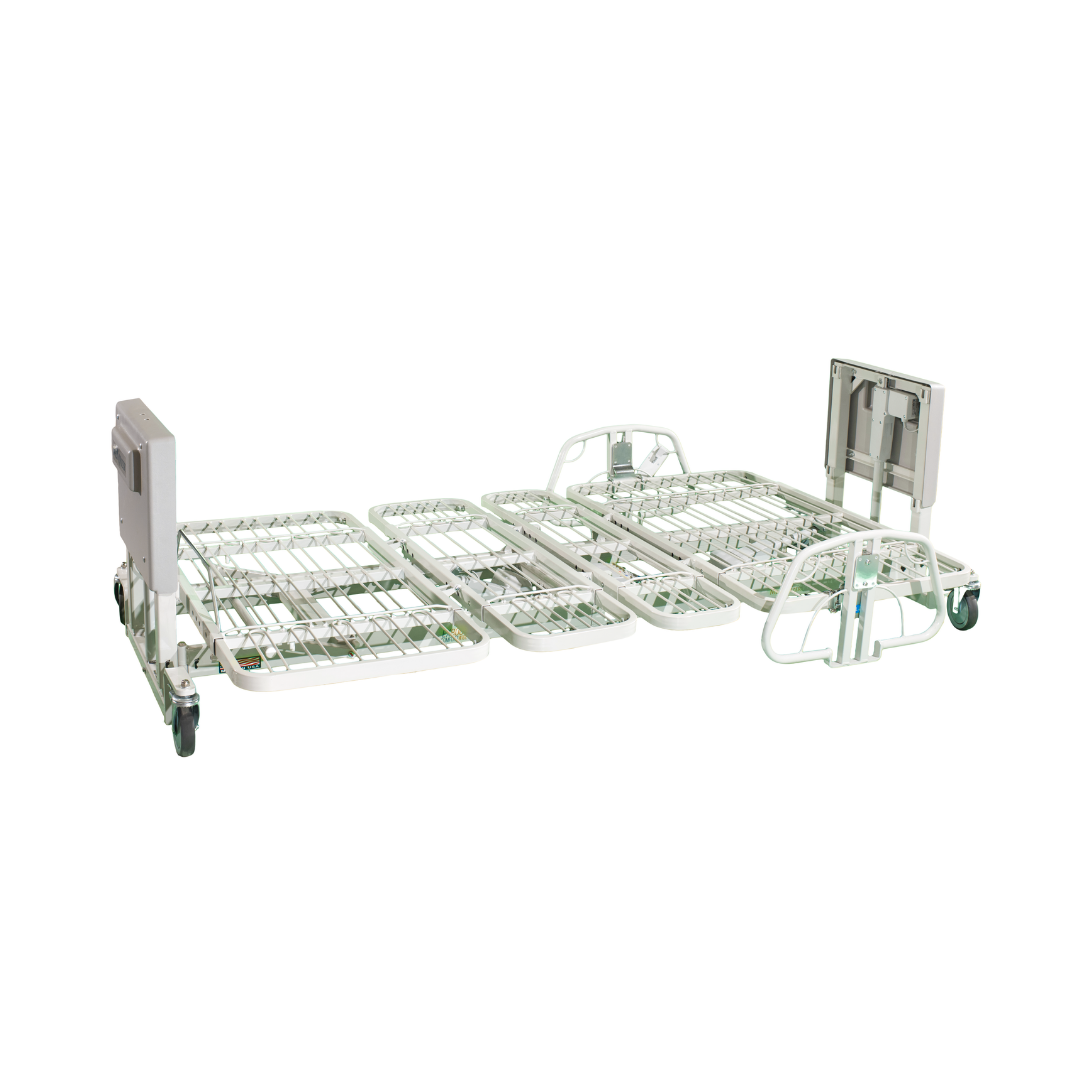

Quick Assembly & Transport Design
Disassembles and reassembles easily—even in tight spaces.
Optional Built-In Scale
Allows accurate patient weight monitoring without transfers.
Multiple Sleep Surface Options
Available in 35”, 39”, 42”, and 48” widths with standard 80” length.
Smooth, Quiet Operation
Ensures dependable performance with minimal noise disruption.

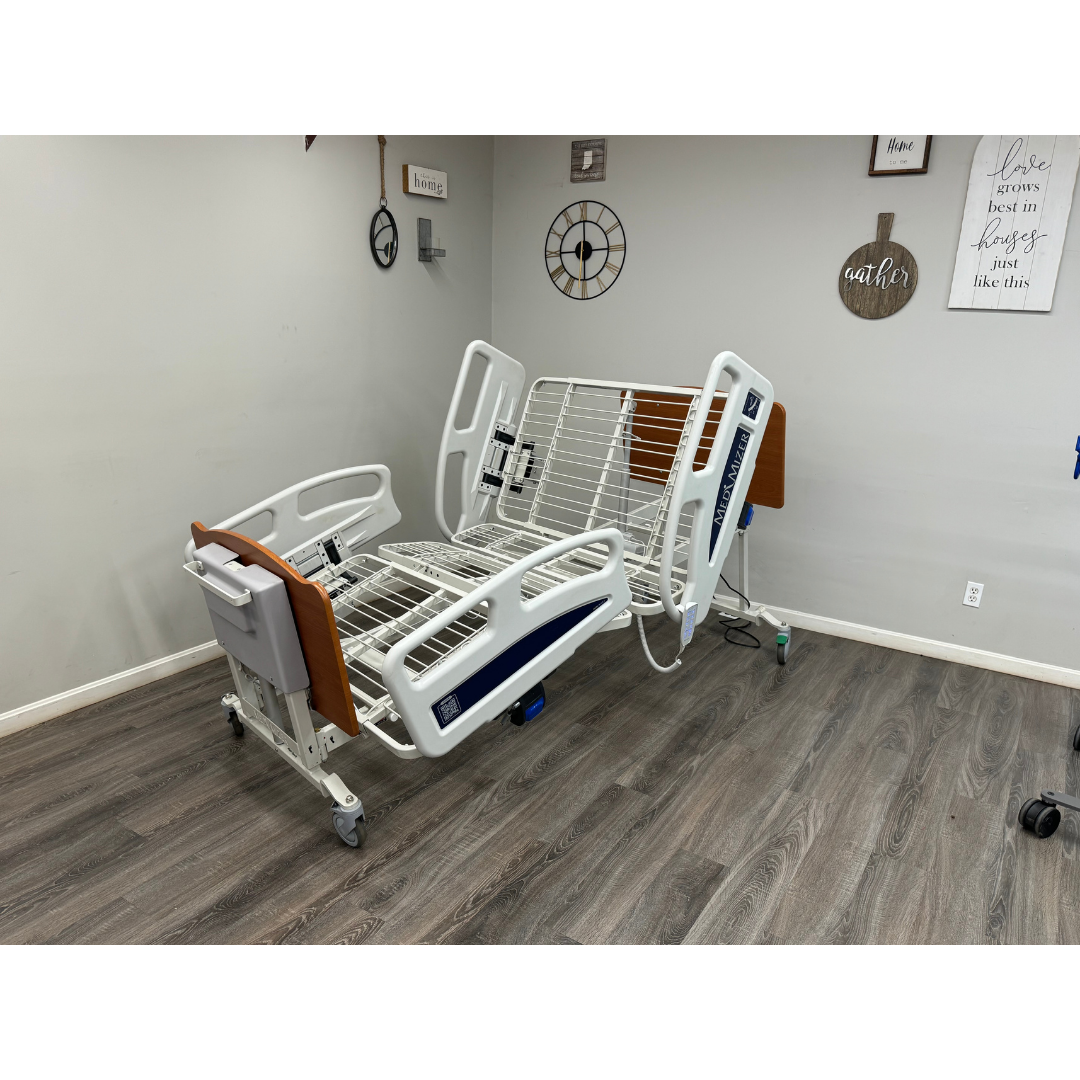

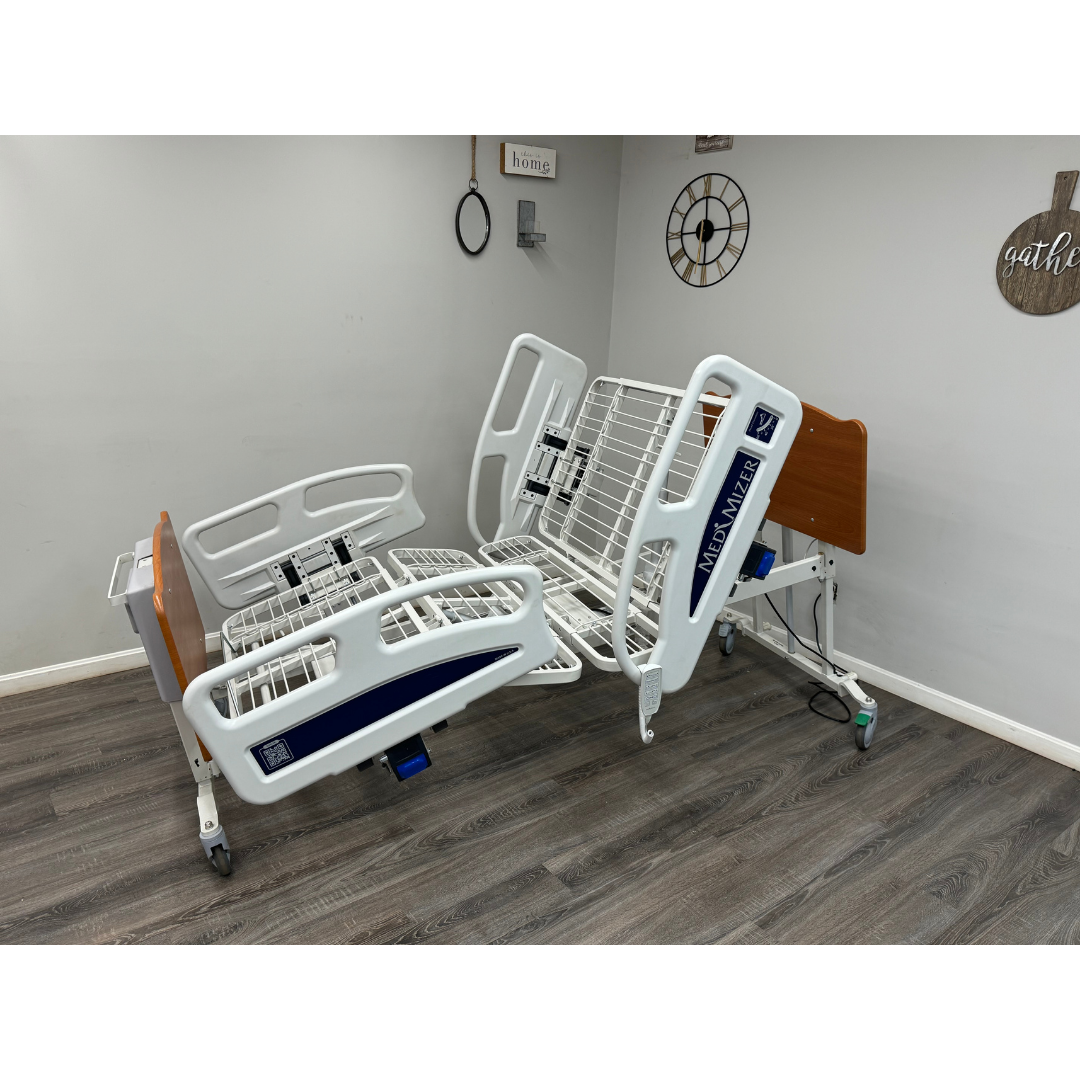

Med-Mizer EX8000 Bed Adjustable Position

Med-Mizer EX8000 Bed Advanced Positioning View

The Med-Mizer EX8000 ComfortWide Bariatric Width Adjusting Electric Bed offers four endboard finishes—English Oak, Mahogany, Cherry, and Light Oak—shown as labeled color samples beside the standard bed board outline.

Specifications

Advanced Bed System Specifications

Deck Height (Low)	9.5" (optional 14.5")
Deck Height (High)	25.5" (optional 30.5")
Sleeping Surface	35", 39", 42", 48" W × 80" L
Maximum Safe Working Capacity	800 lbs
Product Weight	Foot Section Lift: 42 lbs Head Section Lift: 42 lbs Head Section Sleep Surface: 94 lbs Foot Section Sleep Surface: 91 lbs
Maximum Back Angle	63°
Maximum Knee Angle	19°
Mobility Height	Any height
Operating Temperature	41°F – 104°F (5°C – 40°C)
Operating Humidity	20% – 90% @ 86°F (30°C)
Operating Pressure	700 – 1600 hPa
Storage Temperature	-10°C – -50°C
Storage Humidity	20% – 90% @ 86°F (30°C)
Storage Pressure	700 – 1060 hPa
Voltage Input	120 V AC
Max Current	2.70 A
Frequency	60 Hz
Controller Output	24 V

Videos

Downloads

Download The Brochure

FAQs

Frequently Asked Questions (FAQ) – Med-Mizer EX8000 ComfortWide™ Bariatric Electric Bed

Tap a question to expand the answer.

What is the weight capacity of the EX8000 ComfortWide™ bed?

The bed supports a maximum safe working load of 800 lbs, making it suitable for bariatric and higher-weight patients.

How wide does the bed expand?

The bed features motorized width expansion up to 48 inches, allowing you to adjust the sleeping surface for added comfort and support.

What is the height range of the bed?

The bed lowers to approximately 9–9.5 inches and raises up to 25.5 inches (optional up to 30.5”), helping improve safety and caregiver access.

Does the bed help reduce fall risk?

Yes. The low height design helps reduce injury risk from falls, making it ideal for high fall-risk patients.

What positioning options are available?

The bed includes advanced positioning such as:

Cardiac Chair position
Trendelenburg & Reverse Trendelenburg
Head and foot elevation

What is Clinical-Contour® and how does it help?

Clinical-Contour® is a feature designed to reduce skin shear and minimize repositioning, helping improve patient comfort and reduce the risk of pressure injuries.

Is the bed easy to transport and assemble?

Yes. The EX8000 is designed to disassemble quickly and can be easily reassembled, even in tight spaces—ideal for home delivery and facility use.

Can this bed be used in homecare settings?

Yes. It is suitable for both homecare and professional healthcare environments, including hospitals, rehab centers, and long-term care facilities.

Does the bed come with a built-in scale?

An optional built-in scale is available for accurate patient weight monitoring without needing transfers.

What mattress options are compatible with this bed?

The bed works with standard and bariatric mattresses. For optimal performance, it can be paired with the Med-Mizer Super Elite Mattress System.

What sizes are available?

Width: 35”, 39”, 42”, and expandable up to 48”
Length: 80” standard (84” optional depending on setup)

Is the bed easy for caregivers to operate?

Yes. The bed features intuitive controls and one-touch positioning, making it easy for caregivers to adjust settings and improve workflow.

Are there optional accessories available?

Optional features may include:

Built-in scale
Bed rails
Battery backup
Trapeze bar
Bed extender

Is this bed suitable for long-term use?

Absolutely. It is designed for long-term patient care, offering durability, comfort, and adaptability for changing needs.
