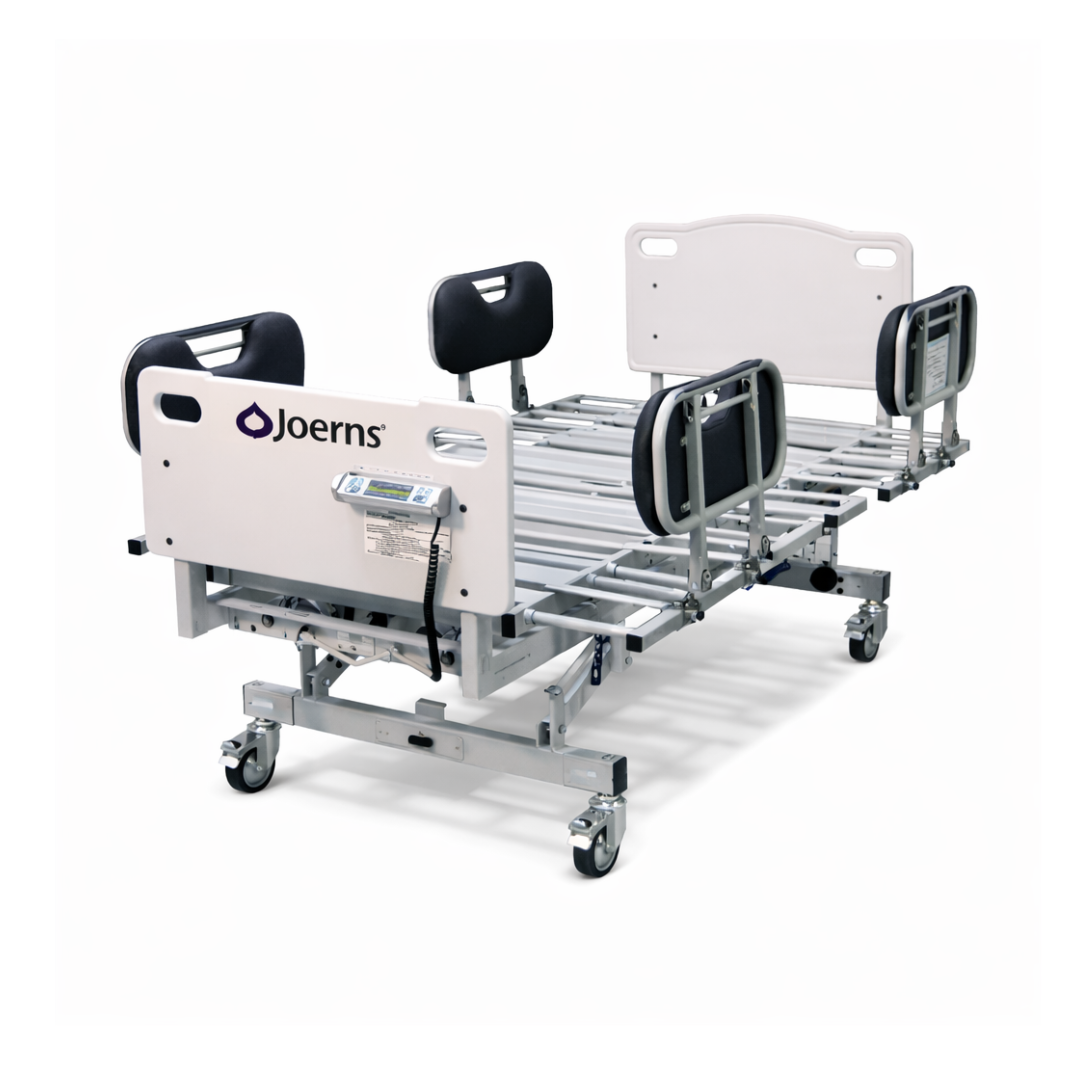

Joerns RC 1000 Bariatric High Capacity Homecare Bed
Key Features & Benefits
- ✓ Weight Capacity: 1,000 lbs | 3 Mattress Options
- ✓ Split Frame – Simplifies delivery, setup, storage, & transport
- ✓ 5 Functions – Includes Trendelenburg & cardiac chair positioning
- ✓ Expandable Bed Width (39″–54″) – Easily adjusts to patient size
- ✓ Adjustable Height Range – 17″–30″ for safer transfers
Low stock
Couldn't load pickup availability
Speak To An Expert
FREE Shipping
30-Day Return Policy
24/7 Support
FSA/HSA Eligible

The RC 1000 Bariatric Bed delivers powerful, multi-functional bariatric care in an affordable, space-saving design. Built to support up to 1,000 lbs, this heavy-duty electric hospital bed features five fully electric functions, including Trendelenburg and cardiac chair positioning, to enhance patient comfort and caregiver efficiency.
A simple pull-pin width expansion system allows the bed deck to adjust from 39″ to 54″, accommodating a wide range of patient sizes while still allowing transport through standard 40″ doorways. Its split-frame design simplifies delivery, setup, and storage—making it ideal for homecare, alternate care sites, and long-term care environments.
The RC 1000 includes an integrated scale for one-button weighing in any position, padded wing-style side rails, and compatibility with mattresses up to 54″ wide. With durable construction, practical features, and competitive pricing, the RC 1000 is a dependable bariatric bed solution designed to meet demanding care needs without exceeding budget constraints.
- 1,000 lb Weight Capacity – Heavy-duty bariatric bed designed for safe, reliable patient support
- Five Fully Electric Functions – Includes Trendelenburg and cardiac chair positioning
- Expandable Bed Width (39″–54″) – Pull-pin system easily adjusts to patient size
- Doorway-Friendly Design – Transports through doorways as narrow as 40″
- Integrated Scale System – One-button weighing in any position
- Split Frame Construction – Simplifies delivery, setup, storage, and transport
- Mattress Compatibility – Supports 37″, 39″, 42″, 48″, or 54″ mattresses
- Padded Wing-Style Side Rails – Three-position rails for safety and comfort
- Caregiver Accessories Included – IV pole and Foley bag holder
- Adjustable Height Range – 17″–30″ for safer transfers and caregiver access
- Optional Trapeze Available – Additional patient assistance
- Warranty Coverage – 5-year warranty on workmanship/materials and 1-year electrical warranty


Mattress and Low-Air-Loss System Options
The BariMatt® 1000 Plus is an innovative expandable foam bariatric mattress engineered to adapt to a wide range of patient needs while helping facilities control costs without sacrificing clinical performance.
Designed to pair seamlessly with the Joerns Bari10A bed frame, the BariMatt 1000 Plus features zip-on, zip-off side expansion panels that allow caregivers to quickly adjust mattress width as patient needs change—without replacing the entire mattress.
Built-in transport capability allows the mattress to be reduced to a standard 36″ width for easier movement through doorways and elevators, even with the patient in place. Precision foam construction and a viscoelastic topper deliver consistent pressure redistribution, comfort, and support for bariatric care environments.
- Expandable Width Options: 36″, 42″, 48″
- Expandable Length Options: 80″, 88″
- Weight Capacity: 1000 lbs.
- Expandable Bariatric Design – Supports multiple patient sizes with a single mattress system
- Multiple Size Configurations – Available in 36″, 42″, and 48″ widths with 80″ or 88″ lengths
- Built-In Transport Mode – Reduces to 36″ W x 80″ L for easy transport through standard doorways
- Zip-On / Zip-Off Expansion Panels – Simplifies resizing, repositioning, and patient transfers
- Precision Relief Cuts – Allows smooth articulation with the bed frame during elevation
- Seamless Fabric Mattress Surround – Fits securely without gaps for improved safety and comfort
- 1″ Viscoelastic Foam Topper – Gently contours to the body for enhanced pressure relief
- Illustrated Top Cover – Provides clear visual guidance for quick setup and configuration
- Optimized for Bari10A Bed – Designed specifically to integrate with Joerns bariatric bed systems
The Arise® 1000 EX is an advanced expandable bariatric therapy mattress system engineered to deliver superior pressure redistribution for patients weighing up to 1,000 lbs. By combining low air loss therapy with gentle pulsation, it helps manage pressure, moisture, and skin integrity for high-risk bariatric patients.
Designed to integrate seamlessly with the Joerns Bari10A bed frame, the Arise 1000 EX expands and contracts in both width and length to match the bed’s adjustable configuration—ensuring consistent therapeutic support across all sizes without compromising performance.
Enhanced safety and comfort features include a power interruption alarm, a patient position sensor with Fowler Boost to optimize seated support, and a low-friction, low-shear cover that helps reduce skin stress. Together, these features improve caregiver confidence while maximizing patient comfort and clinical outcomes.
- Mattress Width: 36″ (91cm), 42″ (107cm), 48″ (122cm)
- Mattress Length: 80″ (203cm), 88″ (224cm)
- Mattress Depth: 8.5″ (22cm)
- Mattress weight: 28 lbs. (13 Kg)
- Maximum weight capacity: 1000 lbs. (455 Kg)
- Control Unit Dimensions: 13.5″ (34 cm)W x 11″ (28 cm)H x 7.5″ (19 cm)D
- Control unit weight: 10 lbs. (4.5 Kg)
- Sixteen Therapy Cells – Eight paired cells evenly distribute weight across the entire surface
- 5″-Deep Therapy Cells – Provide robust support and help prevent bottoming out for bariatric patients
- Expandable Width Design – Integrated control panel inflates/deflates 6″ side bolsters for 36″, 42″, or 48″ widths when paired with the Bari10A bed
- Length Adjustable (80″–88″) – Maintains continuous therapy as the bed expands
- 3″ Safety Therapy Layer – Maintains patient support during power interruptions
- Anti-Kink Air Hoses – Easy-clean design promotes reliable airflow and simplified maintenance
- 1,000 lb Weight Rating – Designed for dependable bariatric patient support
- Advanced Control Unit – True low air loss therapy with Autofirm, Pulsate, and Therapy modes
- Eight Comfort Levels – Allows precise customization for patient comfort and care needs
- Patient Position Sensor with Fowler Boost – Automatically optimizes pressure redistribution in elevated or seated positions
Specifications
| Compatible Mattress Widths | 37", 39", 42", 48", or 54" |
|---|---|
| Bed Deck Length | 84" (96" with optional extender) |
| Overall Frame Size | 39.5" – 56.5" (W) × 91" (L) |
| Bed Deck Height Range | 17" – 30" |
| Head / Footboard Width | 38" |
| Total Bed Weight | 570 lb |
| Power Requirements | 115 VAC, 60 Hz, 10.5 AMP |
| Warranty | 5 years (workmanship & materials); 1 year (electrical system) |
Videos
Downloads
FAQs
Warranty
Joerns RC 1000 Bed Warranty Information
The Joerns RC 1000 Bed (Model RC1000) is warranted to be free from defects in materials and workmanship under normal use and service.
Warranty Coverage
-
Mechanical & Electrical Components: Covered for 1 year from the date of delivery
-
Steel Structural Components: Covered for 5 years from the date of delivery
-
Welds: Covered for the lifetime of the product
What’s Not Covered
-
Damage caused by improper use, abuse, or unsuitable environmental conditions
-
Failure to maintain the product according to user or service instructions
-
Any alteration, modification, or repair not performed or authorized in writing by Joerns Healthcare (this will void the warranty)
Wear Parts
Certain components subject to normal wear are not covered under the standard warranty. These parts are covered for 90 days from the date of delivery.
Warranty Service & Replacement
Joerns Healthcare’s obligation under this warranty is limited to:
-
Supplying replacement parts
-
Servicing or replacing, at its discretion, any product deemed defective
Replacement parts provided under warranty are covered only for the remainder of the original warranty period.
If requested, defective parts must be returned for inspection at the customer’s expense. Credit will be issued only after inspection is completed.
Service Support
-
Most service needs can be handled by the facility’s maintenance department with support from the Joerns Healthcare Product Service Department
-
Most replacement parts can be shipped via next-day air at the customer’s expense
-
If a technician is required, dispatch will be determined solely by Joerns Healthcare
-
Only the Joerns Healthcare Product Service Department may authorize and dispatch service technicians
Eligibility
This warranty applies only to the original purchaser of the equipment.
