Tool-Free Folding Design
The Hoyer Journey Lift features a tool-free folding frame that allows for easy storage and transport. Ideal for home use or professional care settings where portability is essential.
In stock
Couldn't load pickup availability

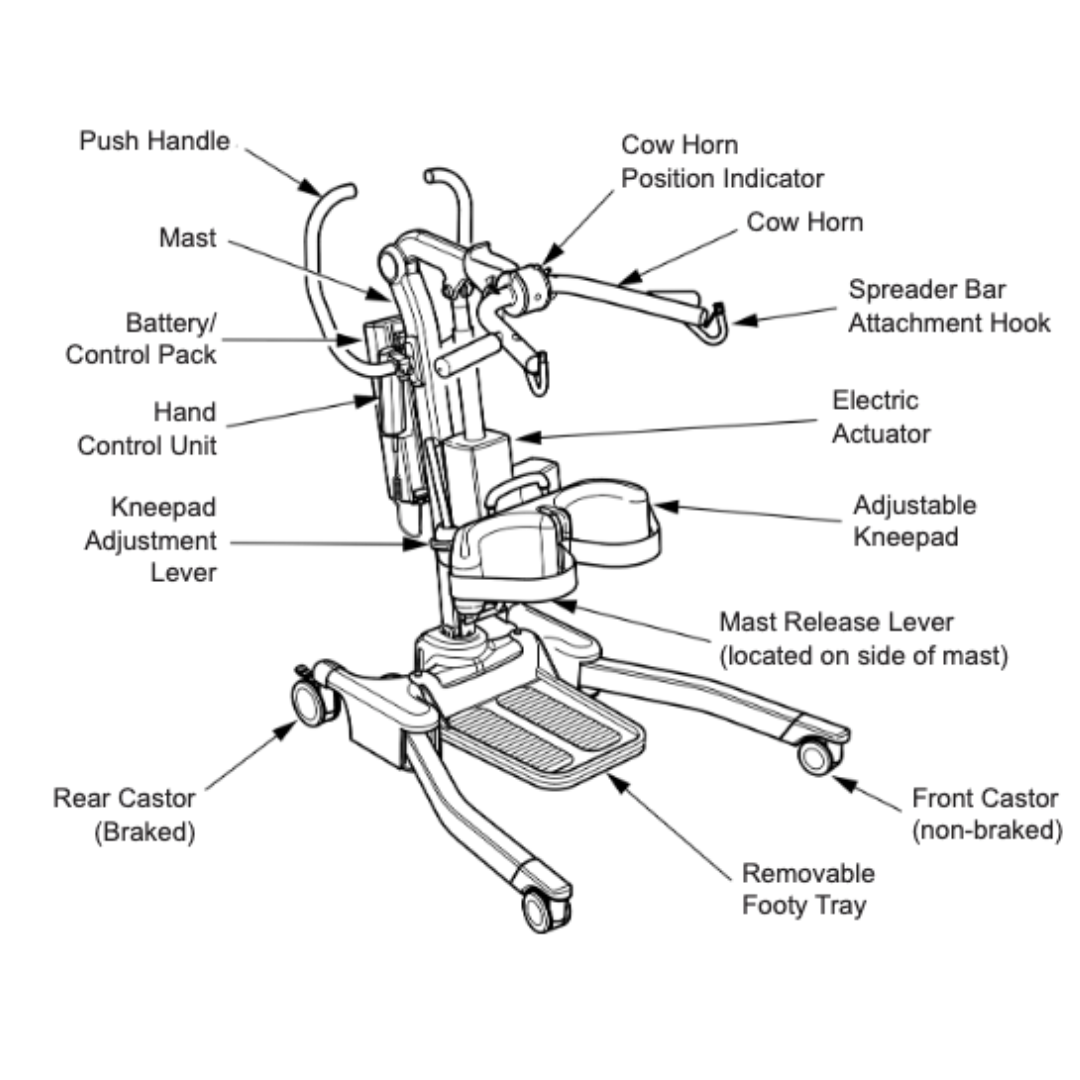

The Journey® lift is an ultra-compact, portable folding stand aid designed for exceptional functionality and convenience. Lightweight and easy to maneuver, it’s ideal for navigating tight spaces and folds quickly for storage or transport. Featuring the first adjustable sling attachment cradle on the market, it accommodates a wide range of patient heights and body types—making it a versatile solution for diverse care settings. Thoughtfully engineered, the Journey lift prioritizes both caregiver efficiency and patient comfort, ensuring a safe and supportive experience for all.


The Hoyer Journey Lift features a tool-free folding frame that allows for easy storage and transport. Ideal for home use or professional care settings where portability is essential.

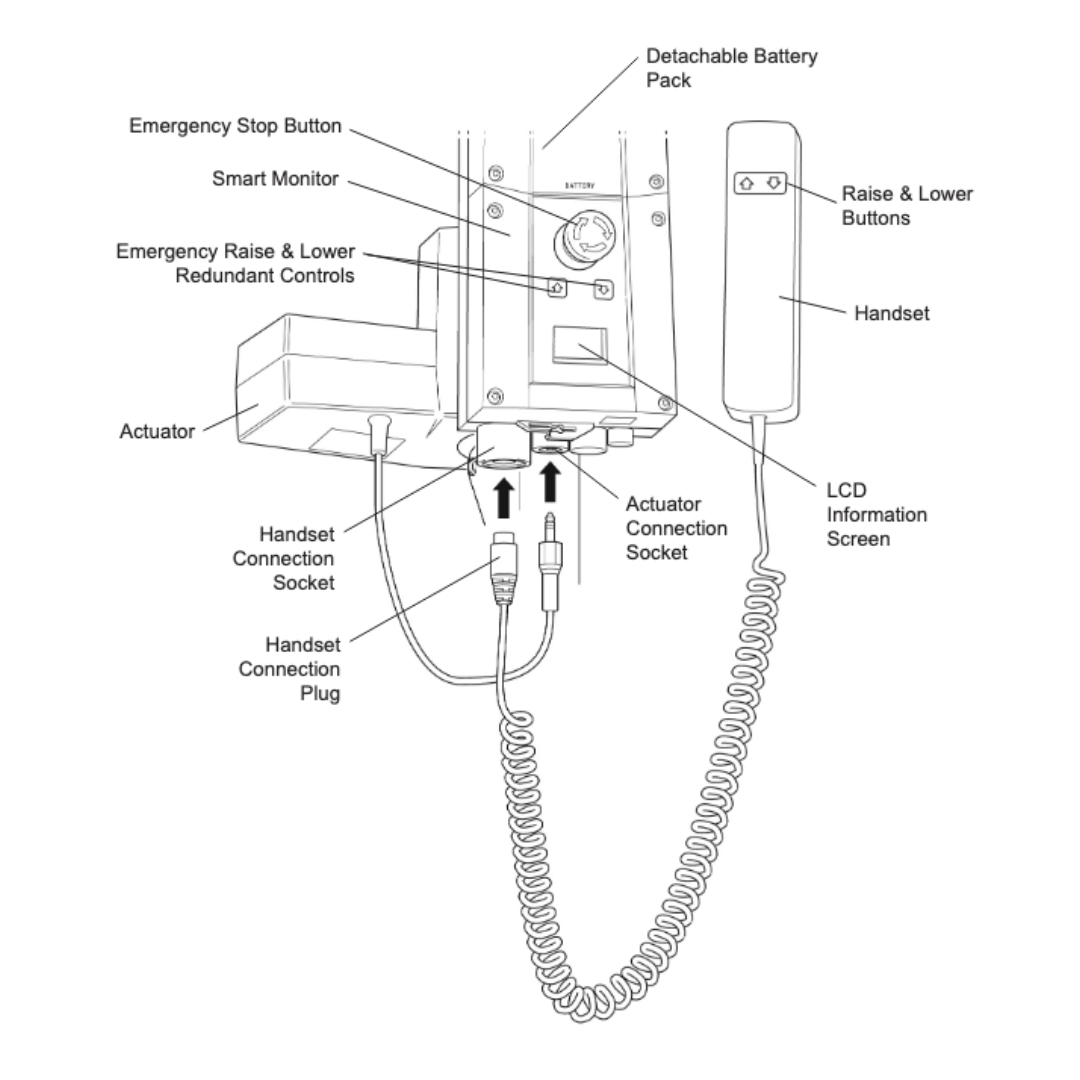

Integrated Smart Monitor™ system provides real-time usage feedback, helping ensure safe operation, promote proper usage, and extend the lift’s service lifespan.
The versatile cradle design accommodates users of varying heights, enhancing comfort, safety, and transfer efficiency for patients and caregivers alike.
The ergonomic push pad enables caregivers to initiate movement with less effort, improving maneuverability and minimizing strain during transfers.
Designed with infinite adjustment settings to provide personalized comfort and stability for every user, supporting natural positioning during sit-to-stand motions.
Multiple sling types are available separately to match various patient needs, ensuring a secure and comfortable transfer experience.
340 lbs
60.2 in
34.5 in
27 in
4.3 in
Refer to the user manual for complete folded size details and storage guidance.
Includes two (2) rechargeable batteries and an offboard charger for continuous, dependable operation.
Foot pedal-operated base opening provides quick and easy width adjustment for improved access around furniture or wheelchairs.
Tested to EN ISO 10535 — the global safety benchmark for patient lift performance and reliability.






| Specification | Details |
|---|---|
| Safe Working Load | 341 lbs |
| Maximum Overall Length | 39.4″ |
| Minimum Overall Length | 36.8″ |
| Maximum Overall Height | 63″ |
| Minimum Overall Height | 44.5″ |
| Maximum Height to Attachment Point | 60.2″ |
| Minimum Height to Attachment Point | 28.4″ |
| Turning Radius | 45.1″ |
| Legs Open – External Width | 38.2″ |
| Legs Open – Internal Width | 34.5″ |
| Legs Closed – External Width | 27.0″ |
| Legs Closed – Internal Width | 22.2″ |
| Widest Point (Between Support Handles) | 26.8″ |
| Overall Height of Legs | 4.3″ |
| Ground Clearance | 1.2″ |
| Front Twin Casters | 3.0″ |
| Rear Braked Casters | 4.0″ |
| Weights | |
| Mast, Base & Boom Assembly | 82.4 lbs |
| Power Pack | 6.2 lbs |
| Total | 88.6 lbs |
| Base Assembly (without battery) | 30.2 lbs |
| Mast & Boom (without battery) | 42.3 lbs |
| Foot Tray | 9.9 lbs |
| Electrical Specifications | |
| Battery Type | 24V Rechargeable Sealed Lead Acid |
| Battery Capacity | 3.2 Ah |
| Charger Input | 100–240V AC / 50–60Hz |
| Charger Output | 29.5V DC / Max 19W |
| Charger Protection Class | Class II (EN 60601-1) |
| Lift Power Source | Internal Power Source |
| Shock Protection Rating | Type B (EN 60601-1) |
| Environmental Conditions | |
| Operating Temperature | 41°F – 104°F |
| Relative Humidity (Operating) | 20% – 90% (non-condensing) |
| Storage Temperature | 14°F – 122°F |
| Relative Humidity (Storage) | 20% – 90% (non-condensing) |
| IP Ratings & Duty Cycle | |
| Control Box | IPX4 |
| Actuator | IPX4 |
| Off-Board Charger | IPX5 |
| Battery | IPX5 |
| Handset | IPX5 |
| Actuator Duty Cycle | 10% (2 min ON / 18 min OFF) |
| Charger Time | Approx. 4 hrs |
| Acoustics | |
| Sound Power Level | 60 dB (A) |
This warranty applies to HoyerPro® Lifts only. It does not cover other models such as HML400, HPL700, HPL700WSC, HPL402, C-HLA, and their variations.
Mechanical & Electrical Components: Covered for two years from the date of delivery under normal use and service.
Aluminum Structural Components & Welds: Covered for the lifetime of the product from the delivery date.*
*Subject to standard warranty exclusions below.
This warranty does not cover:
Damage due to improper environmental conditions
Failure to maintain the product per user/service instructions
Unauthorized modifications, repairs, or alterations
Wear Items (e.g., batteries, casters, hydraulic pumps): Covered for 90 days from date of delivery
Warranty replacement parts: Covered until the expiration of the product’s original warranty period
Return of parts for inspection is required upon request (customer expense). Credit issued upon inspection approval.
Most service issues can be resolved by the facility’s Maintenance Department with guidance from Joerns Healthcare’s Product Service Team.
Parts are available and can be shipped next-day air (shipping charges apply).
If an on-site technician is needed, Joerns Healthcare may dispatch one at its discretion. Only our Product Service Department may authorize service calls.
This warranty is extended to the original purchaser of the equipment.
