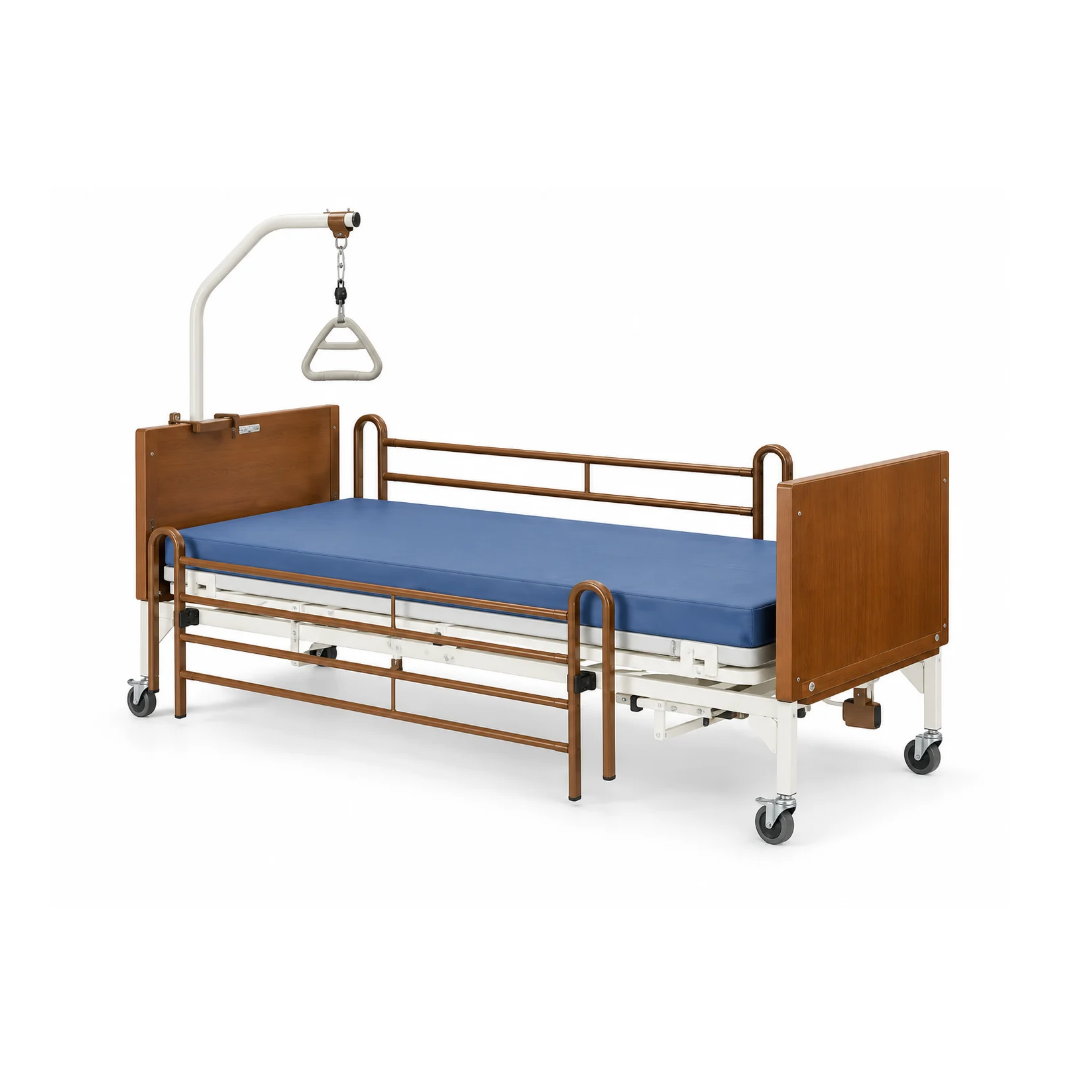

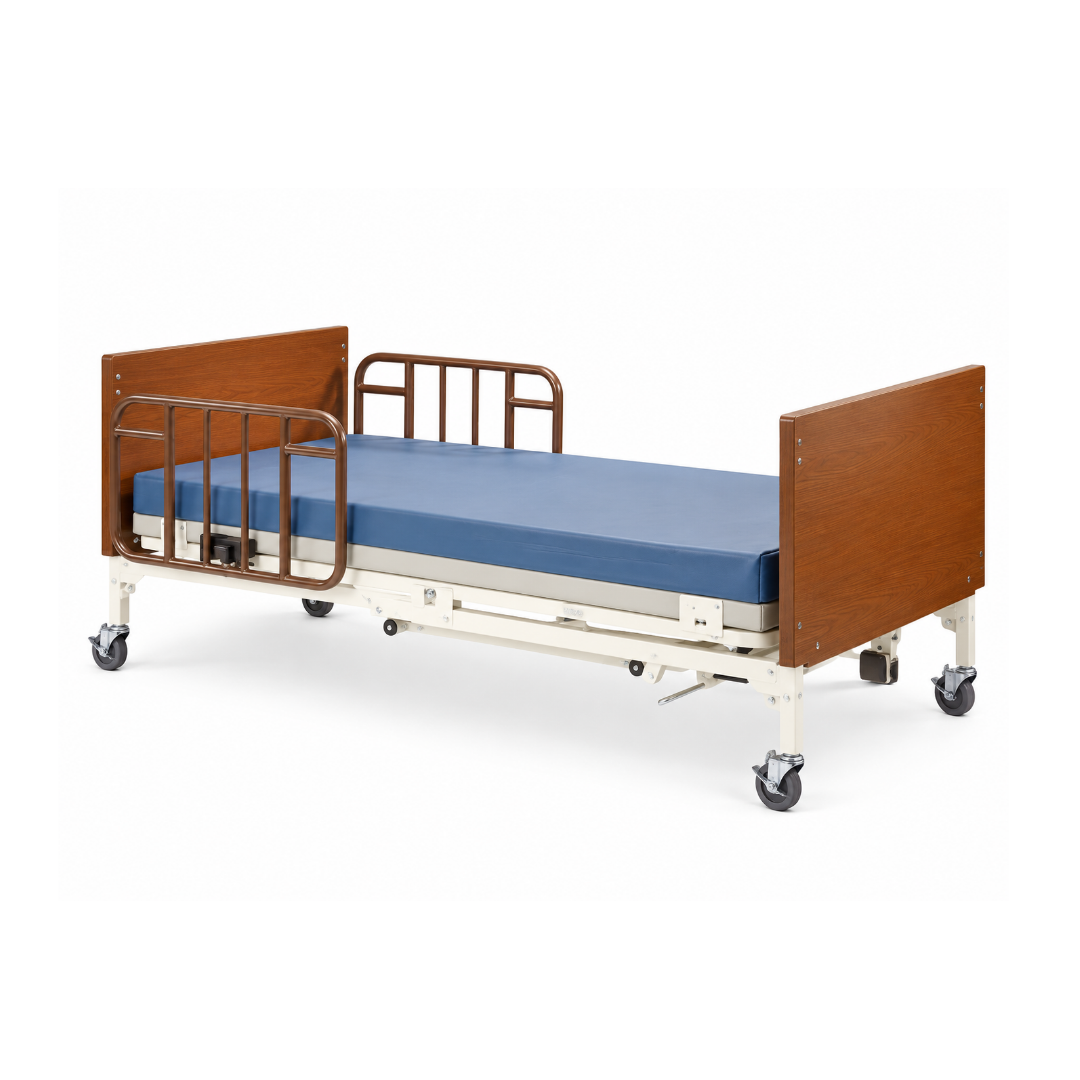

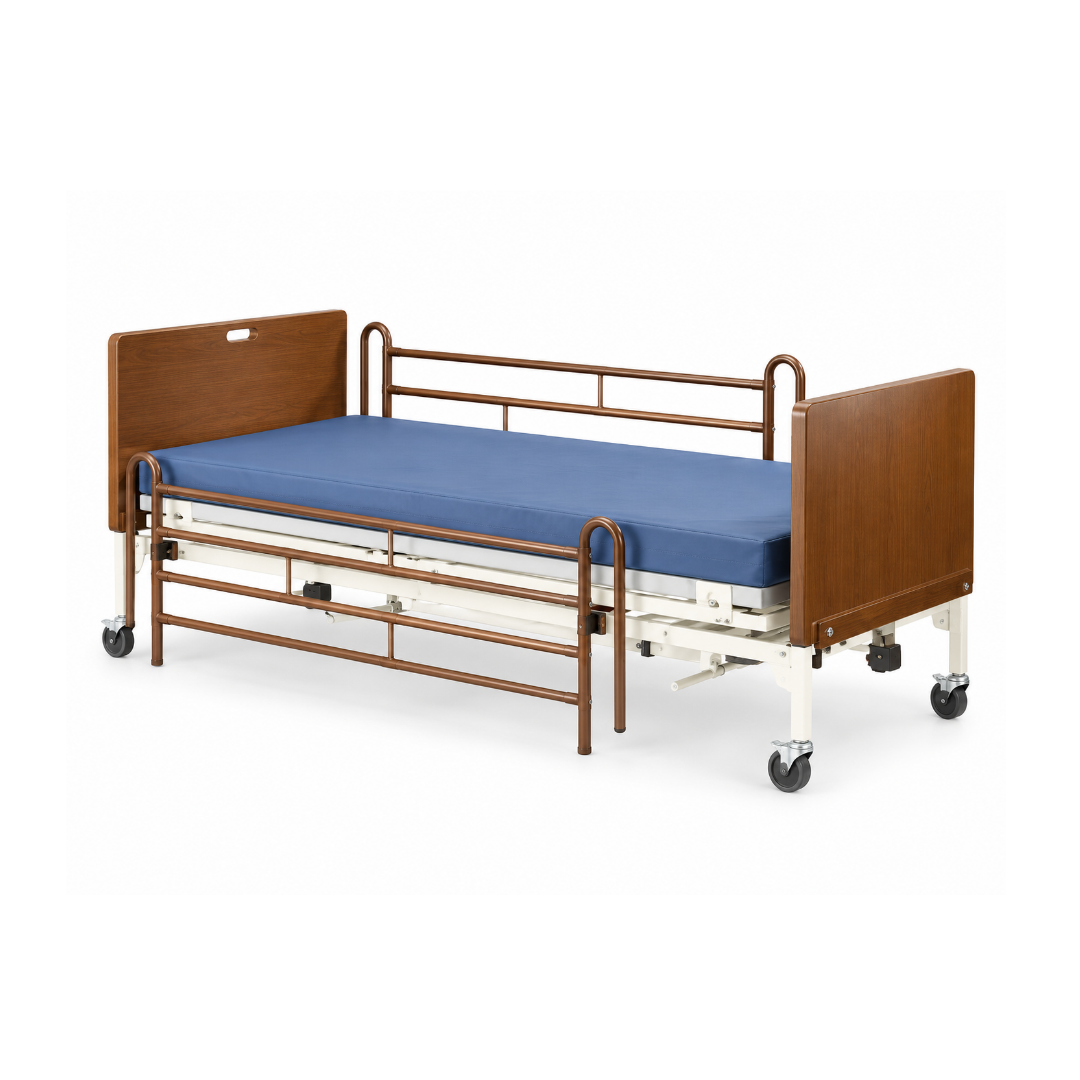

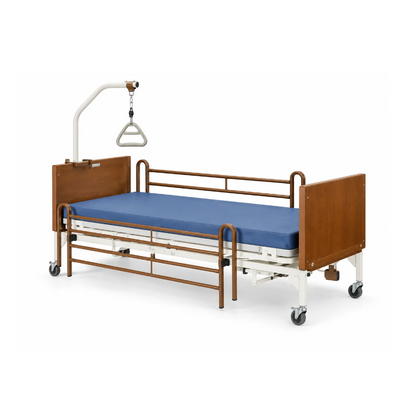

Invacare G-Series Bariatric Full Electric Hospital Bed G5510

The Invacare G-Series is an adjustable medical bed designed for home-care environments, patient positioning, transfers, and caregiver-assisted daily care.

The complete bed model listed is G5510.

The sleep surface measures 36 inches wide by 80 inches long.

The assembled bed measures approximately 36 inches wide by 88 inches long.

The bed adjusts from approximately 15 to 32 inches.

The maximum patient weight is 350 lbs.

The safe working load is 450 lbs.

Patient weight applies only to the individual using the bed. Safe working load includes the patient, mattress, rails, accessories, bedding, and other items supported by the frame.

No. The listed maximum patient weight is 350 lbs. Users requiring a higher capacity should choose a properly rated bariatric medical bed.

The G-Series is certified to IEC 60601-2-52, which addresses the safety and essential performance of medical beds.

The supplied specifications also list IEC 60601-1-11 and ANSI/AAMI 60601-1, 3rd Edition.

It provides dimensional and assessment recommendations intended to reduce entrapment risks within hospital-bed systems.

Applicable Invacare beds, compatible mattresses, and rails—when used together as a system and sold new and unused after August 1, 2007—meet the referenced guidance, subject to Invacare’s stated exclusions.

No. Patient size, movement, cognition, mattress compression, rail selection, and incompatible components can still create hazards. An individualized assessment remains necessary.

Package contents vary by listing and configuration. Confirm whether the mattress, rails, and other accessories are included before ordering.

No. Use a mattress with the correct dimensions, thickness, construction, and compatibility specified by Invacare.

Only rails and mounting hardware confirmed compatible with the G-Series should be used. Improper components can create dangerous gaps or entrapment zones.

No. Bed rails do not prevent every fall and can create climbing or entrapment risks. Their use should be based on a professional patient assessment.

Mattress keepers help maintain the mattress position and reduce sliding as the bed sections are adjusted.

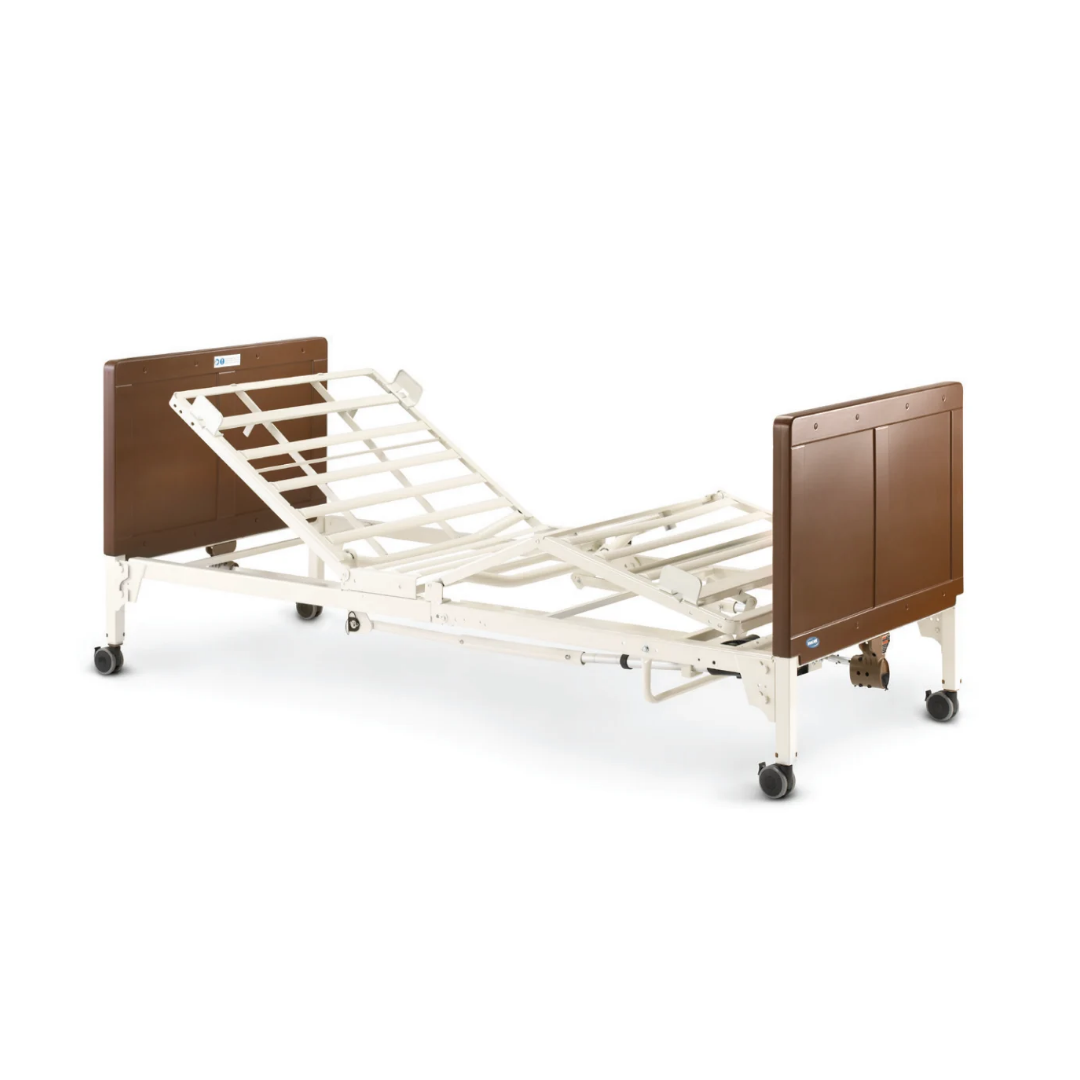

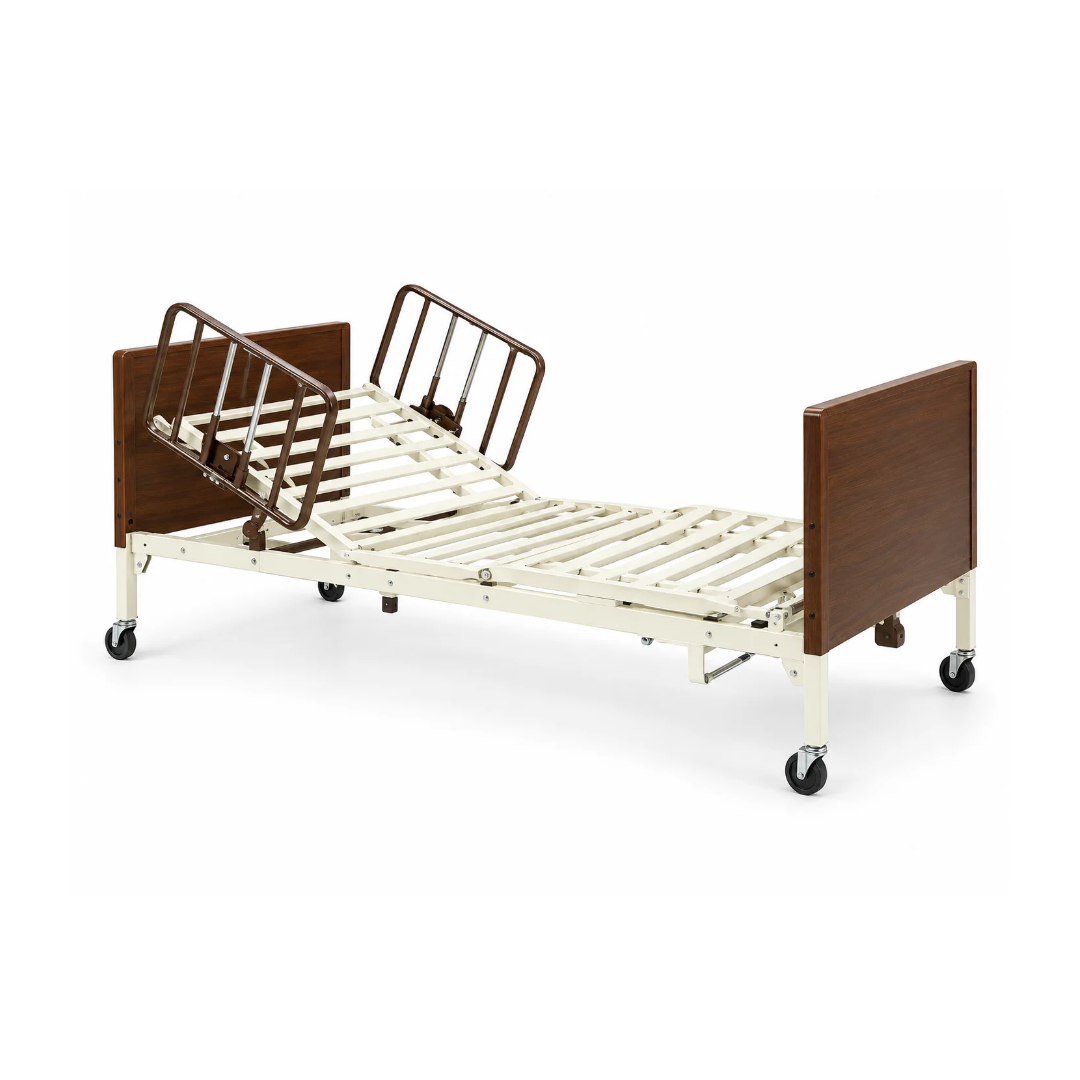

The slat deck is the supportive platform beneath the mattress. It is designed to distribute support, reduce mattress wear, and simplify cleaning.

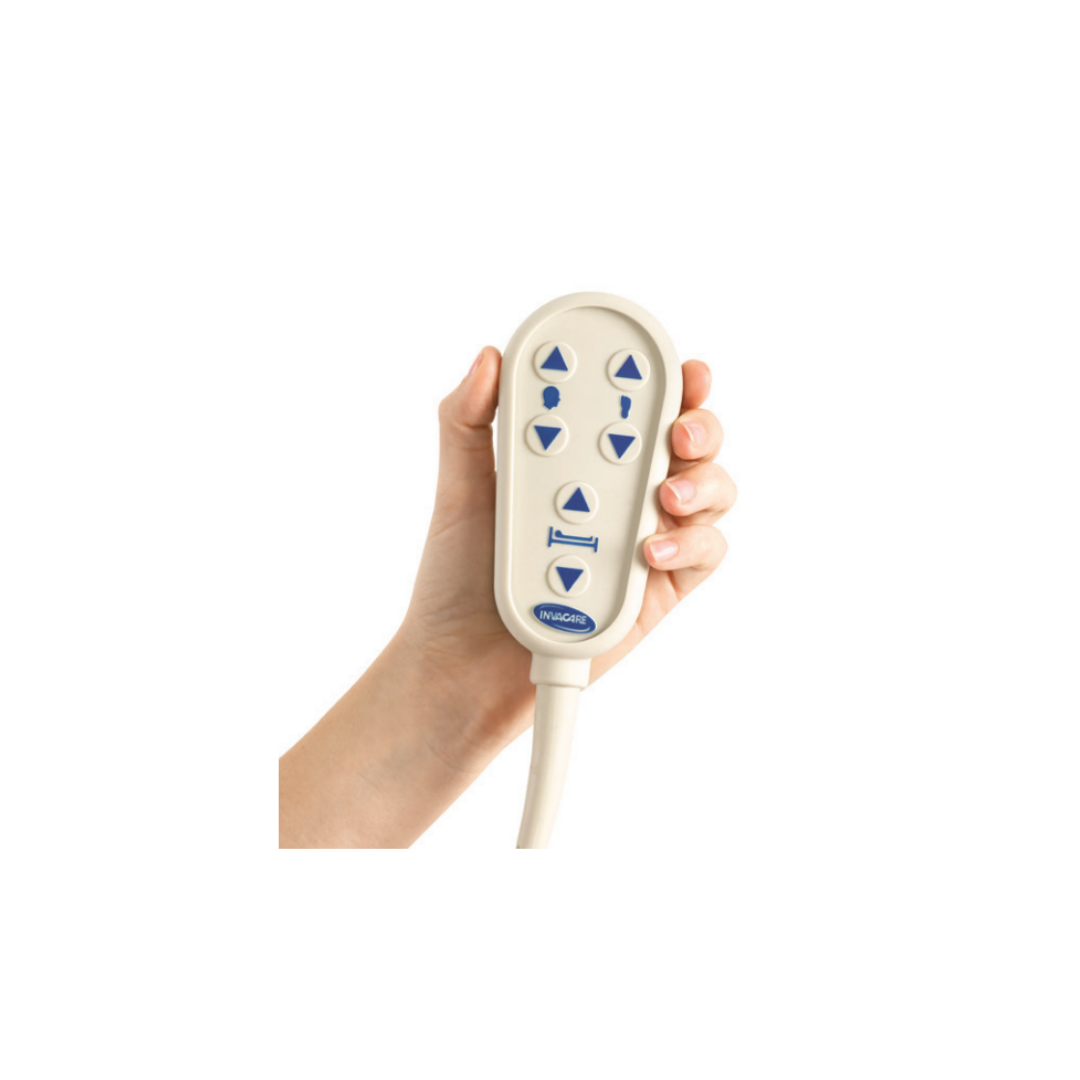

The bed uses an ergonomic hand pendant with fluid-resistant construction and extended strain relief.

Yes. It can connect on either side of the bed for convenient patient or caregiver access.

The specified electrical connections are designed to resist dust and powerful water jets under defined test conditions. It does not mean the entire bed can be submerged or pressure-washed.

The crank-through electronics allow the motors to be operated manually using the proper emergency crank procedure.

Keep it in an accessible location known to caregivers, following the manufacturer’s storage and emergency-use instructions.

Yes. The impact-resistant bed ends are designed to be interchangeable and easy to clean.

The 15-inch minimum height may support certain transfers and fall-risk management plans. It does not eliminate the possibility of falls or injury.

Raising the deck can provide a more ergonomic working height for personal care, repositioning, and other caregiver tasks.

Professional guidance is strongly recommended to determine the appropriate mattress, rail configuration, bed height, positioning, and transfer plan.

Clean the frame, deck, bed ends, pendant, and accessories according to Invacare’s instructions. Disconnect power when directed and do not use cleaning methods that may damage electrical components.

Inspect the power cord, pendant, motor connections, emergency crank, deck, frame, mattress keepers, bed ends, rails, casters, and mounting hardware.

The G50 is the head-section component. It measures approximately 36" W × 45" L × 8" H and weighs 47 lbs.

The G54 is the foot-section component. It measures approximately 36" W × 37.5" L × 8" H and weighs 57 lbs.

The G53 refers to the bed-end set. Its listed dimensions are approximately 39" W × 7" L × 33" H, with a weight of 54 lbs.

The listed warranty provides 2 years of mechanical coverage and 5 years on welds, subject to Invacare’s terms, exclusions, and proper use.

Mattresses, rails, motors, electronics, and accessories may have separate coverage. Review the warranty for each selected component.

Only if the surface is approved for use with the G-Series and does not create unsafe gaps or exceed the safe working load.

Maintain the clearances specified by Invacare so moving sections, cords, rails, and accessories cannot become trapped or damaged.

Yes. Correct assembly and inspection are essential for safe operation, electrical function, mattress fit, and rail compatibility.

Verify the patient’s weight and measurements, room dimensions, transfer needs, mattress and rail requirements, package contents, electrical access, and delivery or installation arrangements.
