Arc Rest
The Arc Rest provides essential upper body and arm support, helping patients maintain stability while bearing weight through both shoulders and feet. This encourages active participation during standing and transfer movements.
Low stock
Couldn't load pickup availability

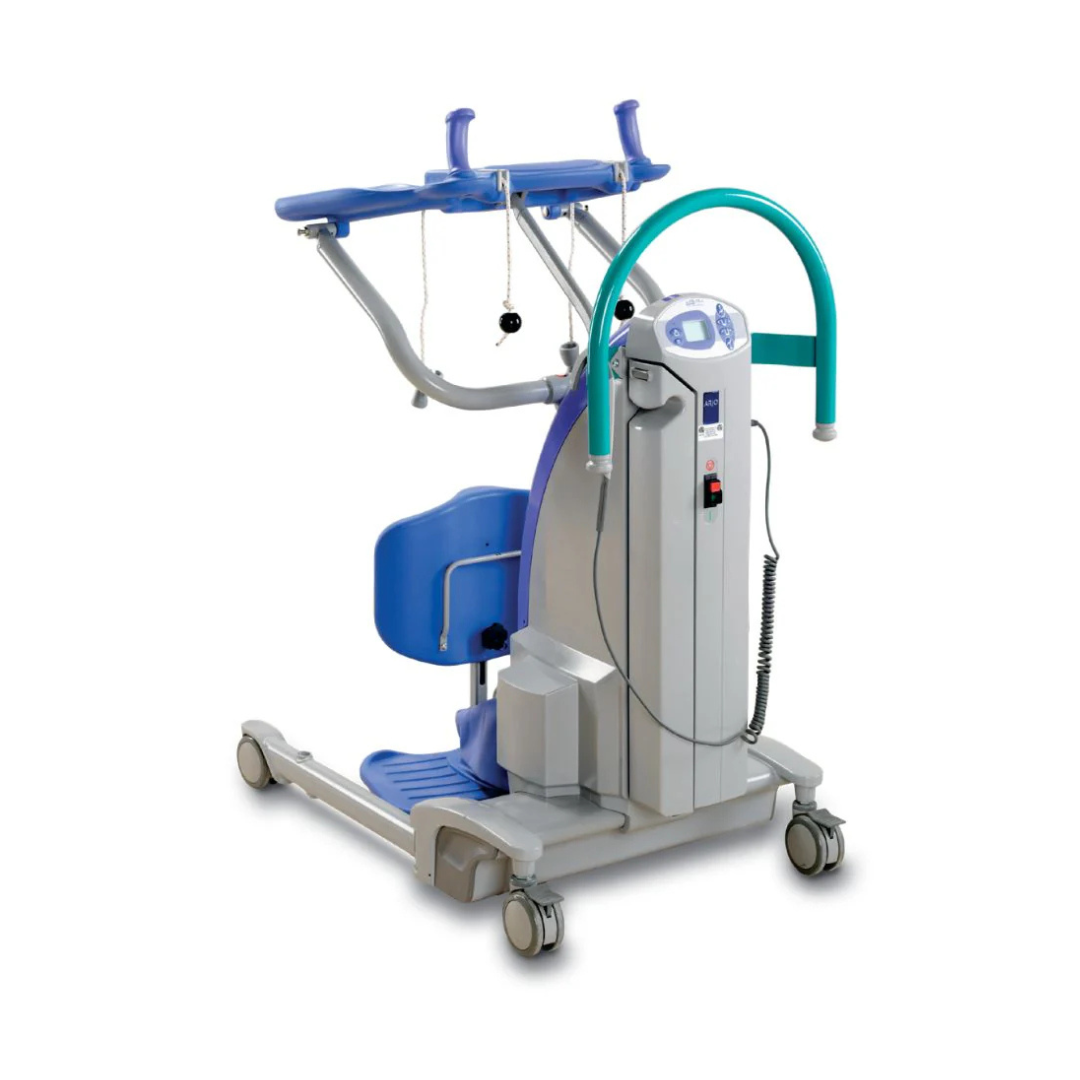

The Sara Plus® takes mobility assistance a step further with advanced features that actively promote patient mobility and independence. Designed to support balance, stepping, and walking exercises, it goes beyond standard sit-to-stand lifts by encouraging movement and engagement during care routines.

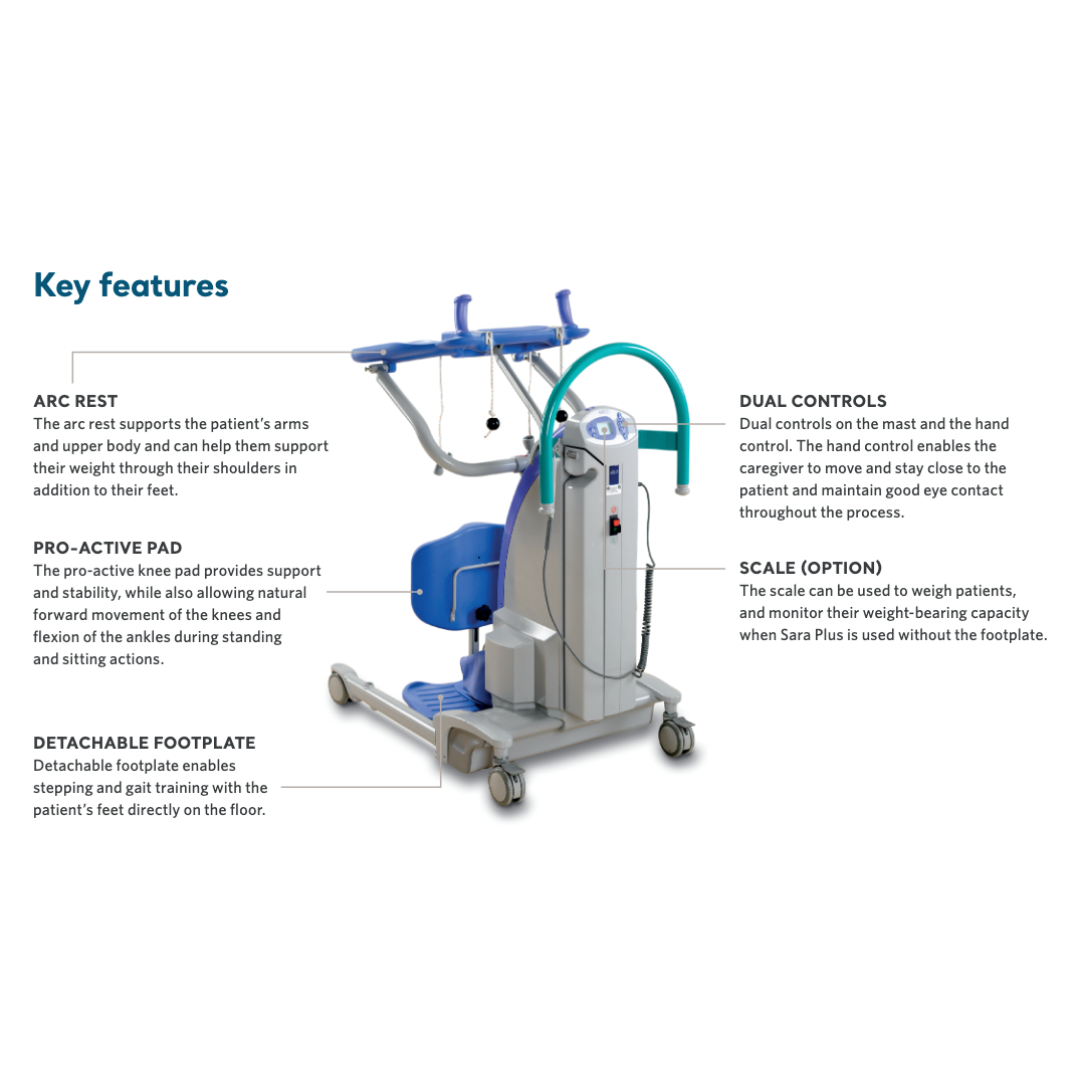

The Arc Rest provides essential upper body and arm support, helping patients maintain stability while bearing weight through both shoulders and feet. This encourages active participation during standing and transfer movements.
The Pro-Active Knee Pad offers secure support while allowing natural knee movement and ankle flexion during sitting and standing. This promotes smooth, ergonomic, and comfortable patient motion.
A removable footplate allows patients’ feet to rest directly on the floor, enabling stepping and gait training exercises that enhance balance, mobility, and lower-body strength.
Equipped with dual control options—one on the mast and one on the hand control—the Sara Plus allows caregivers to operate the lift while remaining close to the patient, ensuring better communication, reassurance, and safety.
The optional built-in scale provides accurate patient weight readings and supports monitoring of weight-bearing capability when used without the footplate—ideal for tracking mobility progress.
With its detachable footplate, the Sara Plus converts from a transfer aid into an active exercise system for balance, stepping, and gait training. Combined with the Arc Rest and supportive sling, it promotes safe, progressive mobility development.
The Arc Rest provides consistent upper body support throughout the lifting process, ensuring comfort, safety, and stability as patients transition to a standing position.
Designed for one-person operation, the Sara Plus enables a single caregiver to perform transfers, balance training, and assisted walking safely and efficiently, offering both cost-effectiveness and time savings.
The Sara Plus sling system ensures a secure fit around the Arc Rest for maximum safety and comfort. Multiple sling options are available — including standing, walking/transfer, and wipeable variants to suit different care environments.



| Specification | Details |
|---|---|
| General Dimensions | |
| Maximum Safe Working Load | 420 lbs |
| Lift Weight (Including Battery) | 173.5 lbs |
| Minimum Storage Height | 47 in |
| Minimum Lifting Height | 35 5/8 in |
| Maximum Lifting Height | 58 7/8 in |
| External Width (Legs Closed) | 25 3/8 in |
| External Width (Legs Open) | 44 in |
| Internal Width (Legs Closed) | 21 in |
| Internal Width (Legs Open) | 39 3/8 in |
| Leg Clearance (Floor to Top) | 4 1/5 in |
| Chassis Clearance (Floor to Bottom) | 1 1/5 in |
| Lift Total Length | 40 5/8 in |
| Turning Radius | 48 5/8 in |
| Electrical & Features | |
| Lifter Protection Class | IPX4 |
| Hand Control Protection Class | IPX7 |
| Battery | 24V 6Ah |
| Battery Charge Indicator | Yes |
| Service Meter (Displays Total Usage Time) | Yes |
| Emergency Stop & System Failure Override | Yes |
| Automatic Safety Cut-Out if Lowered on Obstacle | Yes |
| Low-Friction Castors (Rear Two with Brakes) | Yes |
Download The Specifications Sheet
| Specification | Sara Flex | Sara Stedy | Sara Stedy Compact | Sara Plus | Sara Walker |
|---|---|---|---|---|---|
| General Dimensions | |||||
| Maximum Safe Working Load | 440 lbs | 400 lbs | 400 lbs | 420 lbs | 300 lbs |
| Lift Weight (Including Battery) | 118 lbs | 64.8 lbs | 64.8 lbs | 173.5 lbs | 117 lbs |
| Minimum Storage Height | 45 ¾″ | 41 5⁄16″ | 37 13⁄16″ | 47″ | 45 7⁄8″ |
| Minimum Lifting Height | 39″ | N/A | N/A | 35 ⅝″ | N/A |
| Maximum Lifting Height | 59 ¾″ | N/A | N/A | 58 ⅞″ | N/A |
| External Width (Legs Closed) | 26″ | 19 5⁄16″ | 19 5⁄16″ | 25 7⁄16″ | 33 ⅛″ |
| External Width (Legs Open) | 40 ½″ | 34 ⅝″ | 34 ⅝″ | 44″ | N/A |
| Internal Width (Legs Closed) | 20 ⅞″ | 14 3⁄16″ | 14 3⁄16″ | 21″ | 27 5⁄16″ |
| Internal Width (Legs Open) | 35 ⅜″ | 29 ½″ | 29 ½″ | 39 7⁄16″ | N/A |
| Leg Clearance (Floor to Top) | 4 ¼″ | 3 15⁄16″ | 3 15⁄16″ | 4 ½″ | 6 ½″ |
| Chassis Clearance (Floor to Bottom) | 1″ | 1 3⁄16″ | 1 3⁄16″ | 1 3⁄16″ | 4 ⅞″ |
| Lift Total Length | 39 3⁄16″ | 36 3⁄16″ | 35″ | 40 ⅝″ | 41″ |
| Turning Radius | 47 ½″ | 40 15⁄16″ | 40 3⁄16″ | 48 ⅝″ | 52″ |
| General Features & Electrical Specifications | |||||
| Lift Protection Class | IP24 | N/A | N/A | IPX4 | IPX4 |
| Hand Control Protection Class | IPX7 | N/A | N/A | IPX7 | N/A |
| Battery Type | Rechargeable Sealed Lead Acid | N/A | N/A | Rechargeable Sealed Lead Acid | Rechargeable Sealed Lead Acid |
| Battery Capacity | 24V DC 4Ah | N/A | N/A | 24V DC 6Ah | 24V DC 4Ah |
| Battery Charge Indicator | Yes | N/A | N/A | Yes | Buzzer Sound Indicator |
| Integrated Scale | Optional | No | No | Optional | N/A |
| Scale Power Source | Uses Lift Battery | N/A | N/A | Uses Lift Battery | N/A |
| Car Extraction Capability | No | No | No | No | No |
| Approvals / Certifications | IEC 60601-1 / ISO 10535 | EN ISO 10535 | EN ISO 10535 | IEC 60601-1 / ISO 10535 | IEC 60601-1 / ISO 10535 |
| Maximum Sound Power Level | 50 dBA | N/A | N/A | 74 dBA | 65 dBA |
| Specification | Maxi Move | Maxi 500 | Maxi Twin | Maxi Twin Compact | Minstrel | Tenor |
|---|---|---|---|---|---|---|
| General Dimensions | ||||||
| Maximum Safe Working Load | 500 lbs | 500 lbs | 400 lbs | 350 lbs | 419 lbs | 704 lbs |
| Safe Working Load (Extended Jib) | 287 lbs | N/A | N/A | N/A | N/A | N/A |
| Lift Weight (Incl. Battery & Spreader Bar) | 154 lbs | 126 lbs | 126 lbs | 103 lbs | 123 lbs | 152 lbs |
| Maximum Lifting Height | 62″ | 73 ¼″ | 57 9⁄16″ | 54 ⅛″ | 78 ¾″ | 73 3⁄16″ |
| Minimum Lifting Height | 8 ¾″ | 25 ⅝″ | 9 1⁄16″ | 11 ⅜″ | 24 ½″ | 23 ⅝″ |
| Lifting Stroke | 53 ⅛″ | 47 ⅝″ | 48 ½″ | 42 ½″ | 54 ⅛″ | 49 ½″ |
| Minimum Storage Height | 55 ¼″ | 52″ | 54″ | 44 ¼″ | 52 ⅜″ | 57 ⅞″ |
| External Width (Legs Closed) | 28 ¼″ | 26 ¾″ | 29 ¾″ | 26″ | 24 ⅜″ | 29 ⅜″ |
| External Width (Legs Open) | 47 ⅛″ | 42 ½″ | 54″ | 43 ½″ | 46 ½″ | 49 ¼″ |
| Internal Width (Legs Closed) | 22 ¾″ | 21 ⅝″ | 24 ⅞″ | 20 ½″ | 21 ½″ | 24 ½″ |
| Internal Width (Legs Open) | 42 ¼″ | 37 ⅜″ | 48 ½″ | 38″ | 42 ½″ | 45 ⅝″ |
| Leg Clearance (Floor to Top of Legs) | 4 ½″ (std) | 4″ (low) | 2 ¼″ (extra low) | 4 ¾″ | 4 ½″ | 4 3⁄32″ |
| Chassis Clearance (Floor to Bottom) | 1″ | 1 ⅛″ | 1 ¼″ | 1 ¼″ | 1 ¾″ | 13⁄16″ |
| Lift Total Length | 44″ | 44 ⅞″ | 51 ⅛″ | 43″ | 50 ¼″ | 58 ½″ |
| Turning Diameter | 48″ | 52 ⅜″ | 56 ⅝″ | 51 ½″ | 55 15⁄16″ | 65″ |
| General Features & Electrical Specifications | ||||||
| Lift Protection Class | IPX4 | IP24 | IP24 | IP24 | IPX4 | IPX4 |
| Hand Control Protection Class | IPX7 | IPX7 | IPX7 | IPX7 | IPX7 | IPX7 |
| Battery | 24V 4Ah | 24V 4Ah | 24V 2.5Ah NiMH | 24V 2.5Ah NiMH | 24V 4Ah | 24V 4Ah |
| Battery Charge Indicator | Yes | Yes | Yes | Yes | Yes | Yes |
| Service Meter (Usage Time) | Yes | Yes | N/A | N/A | Yes | Yes |
| Emergency Stop / Override | Yes | Yes | Yes | Yes | Yes | Yes |
| Automatic Safety Cut-Out | Yes | Yes | Yes | Yes | Yes | Yes |
| Low Friction Castors w/ Brakes | Yes | Yes | Yes | Yes | Yes | Yes |
| Maximum Sound Power Level | 61.9 dBA | 50 dBA | 49 dBA | 49 dBA | 53 dBA | 71 dBA |
| Floor Pickup Capability | Yes | Yes | Yes | Yes | Yes | Yes |
| Car Extraction | No | No | No | Yes | No | No |
| Approvals / Certifications | IEC 60601-1 / ISO 10535 | IEC 60601-1 / ISO 10535 | IEC 60601-1 / ISO 10535 | IEC 60601-1 / ISO 10535 | IEC 60601-1 / ISO 10535 | IEC 60601-1 / ISO 10535 |
