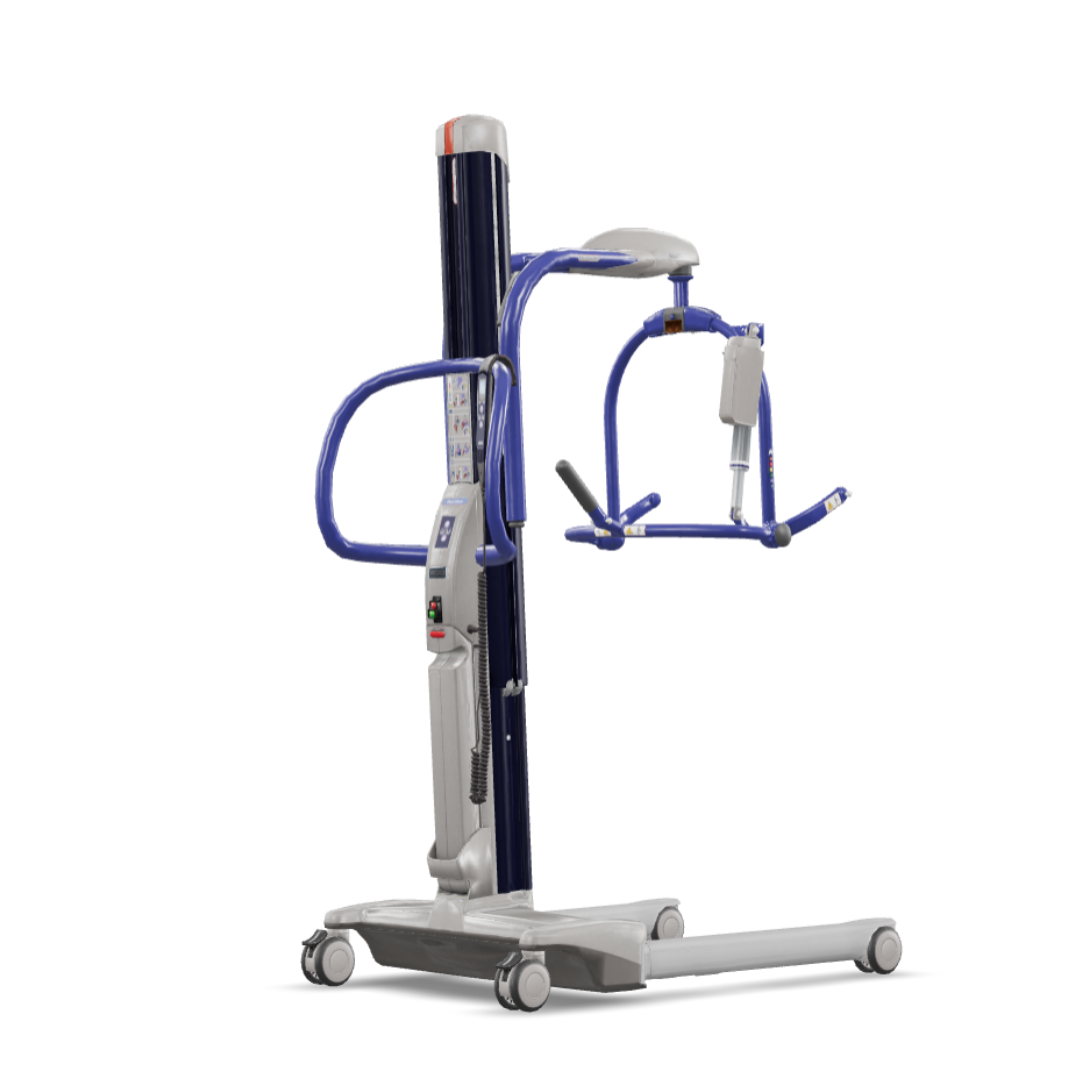

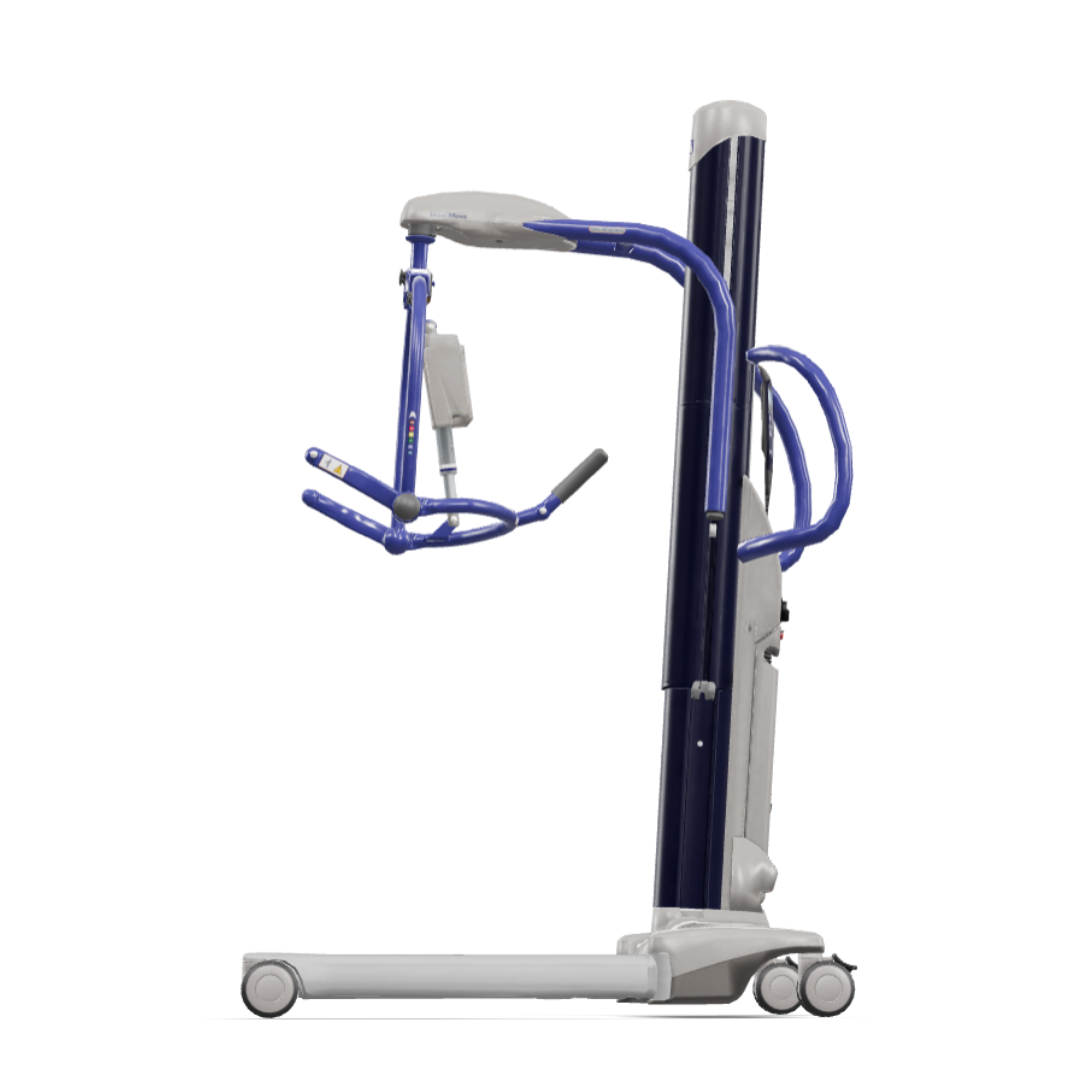

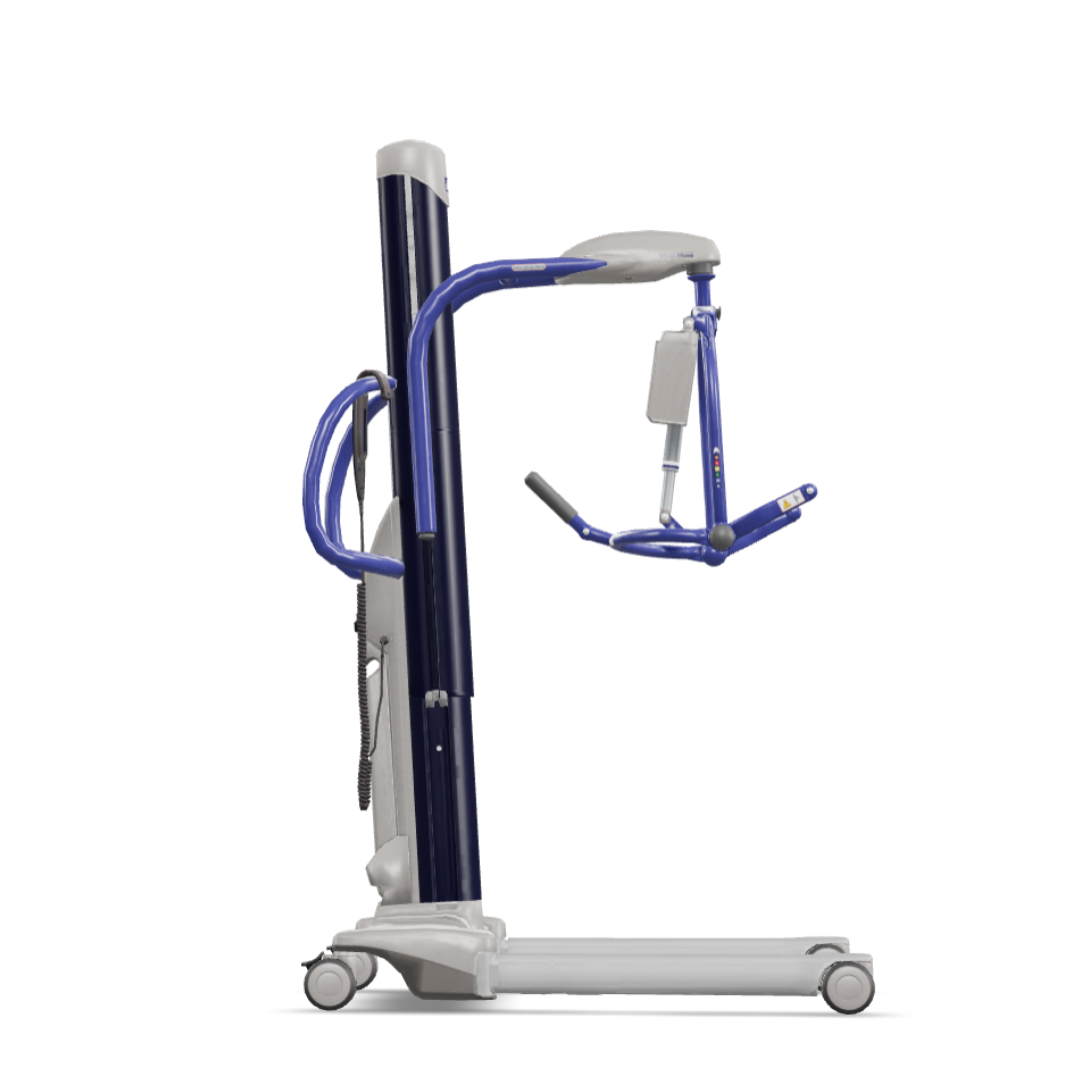

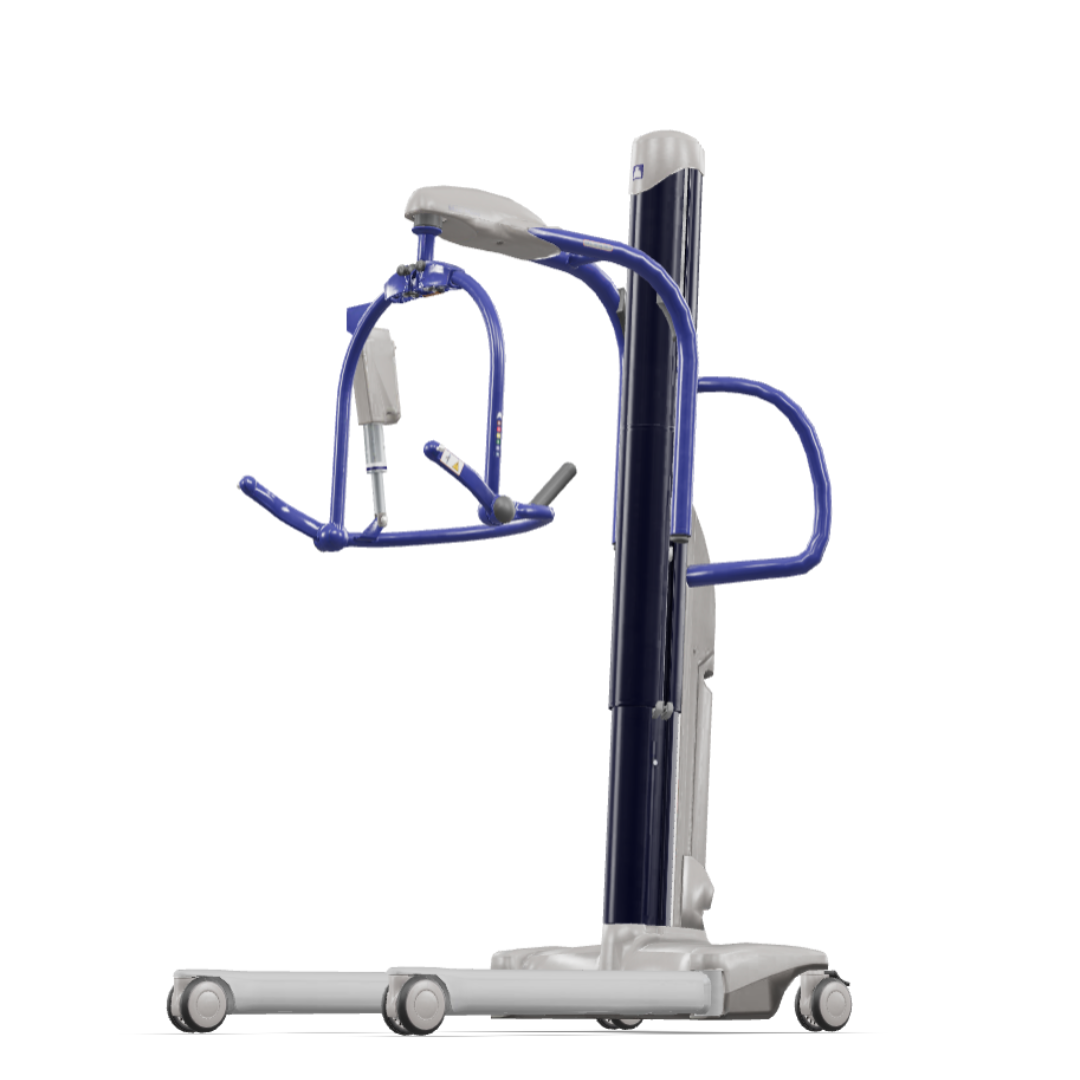

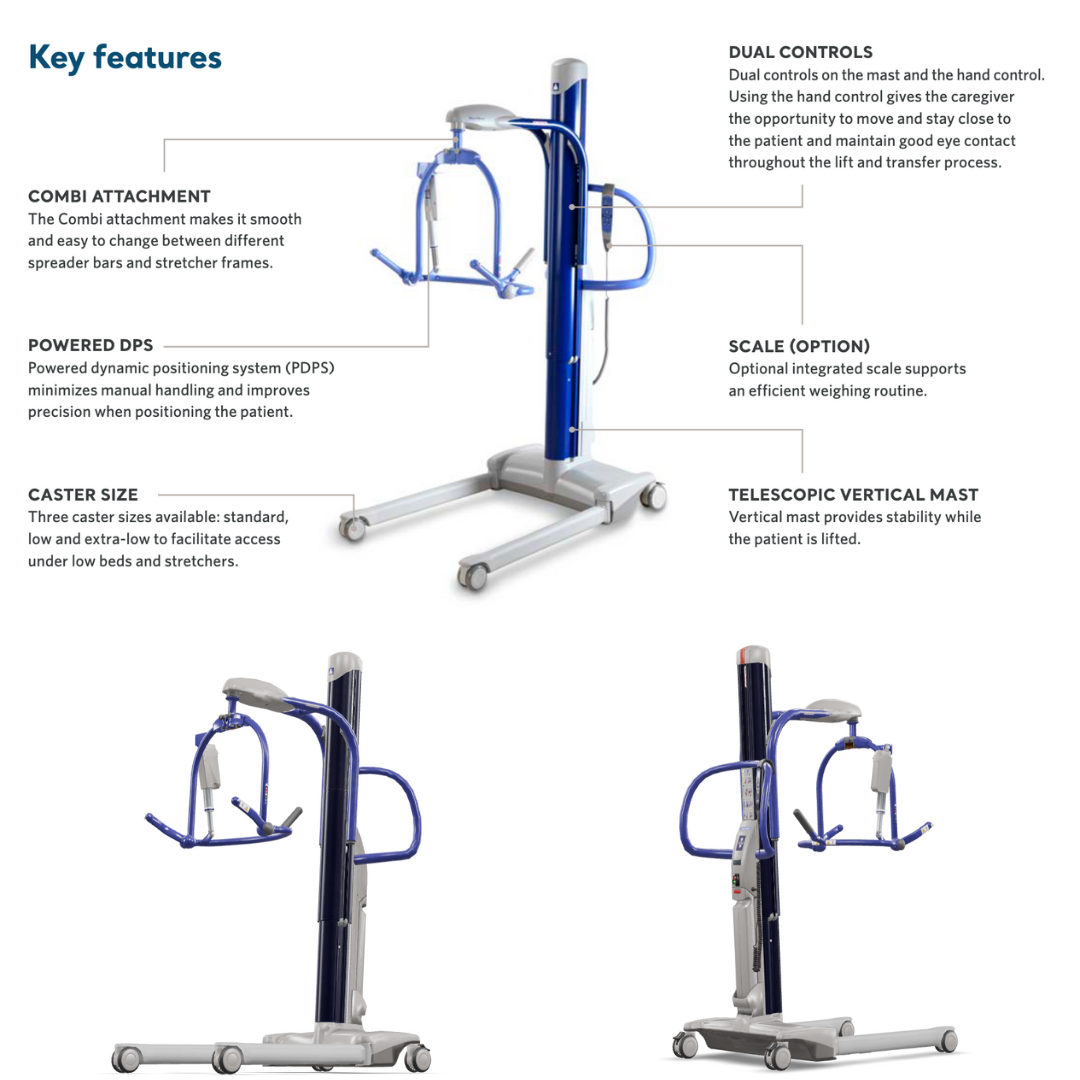

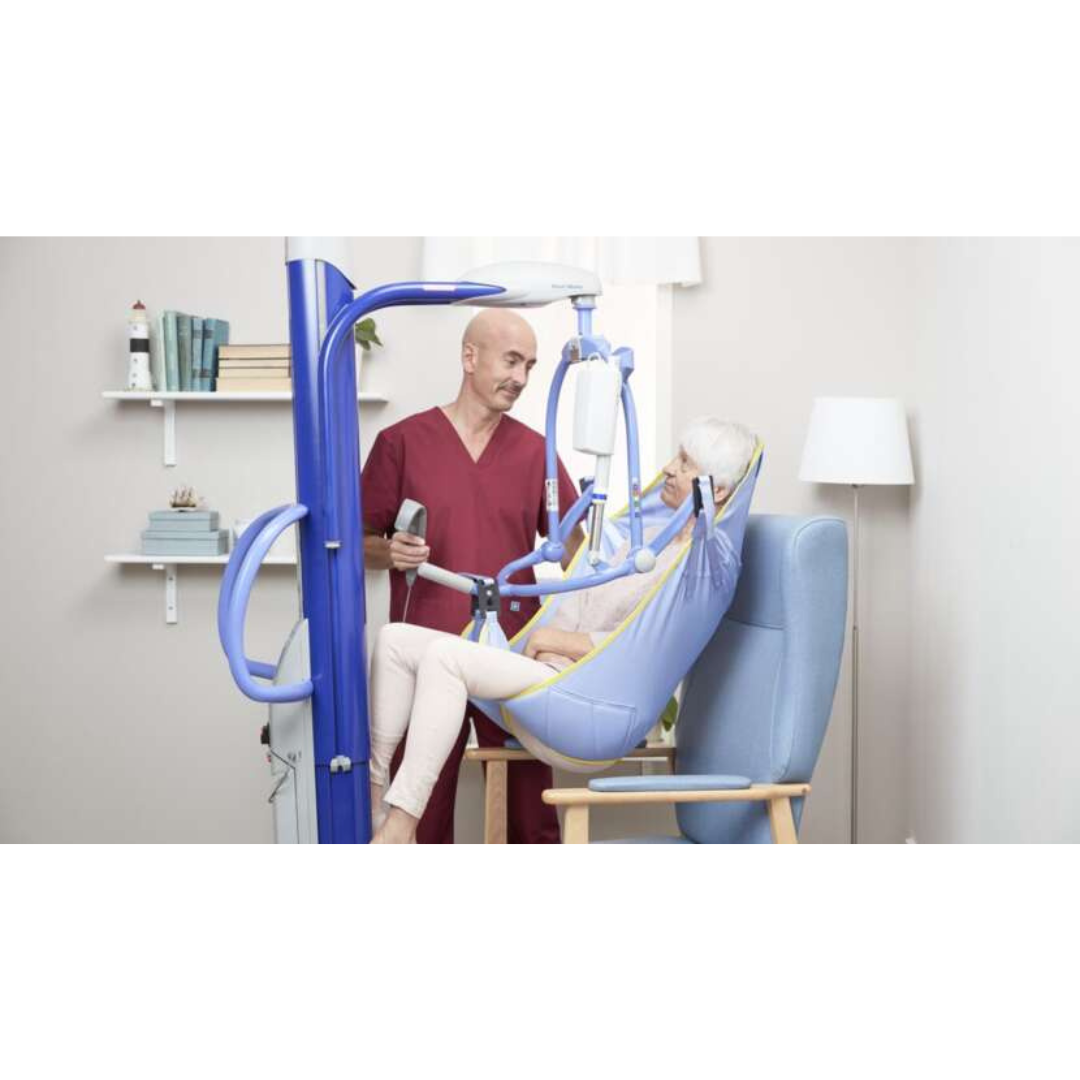

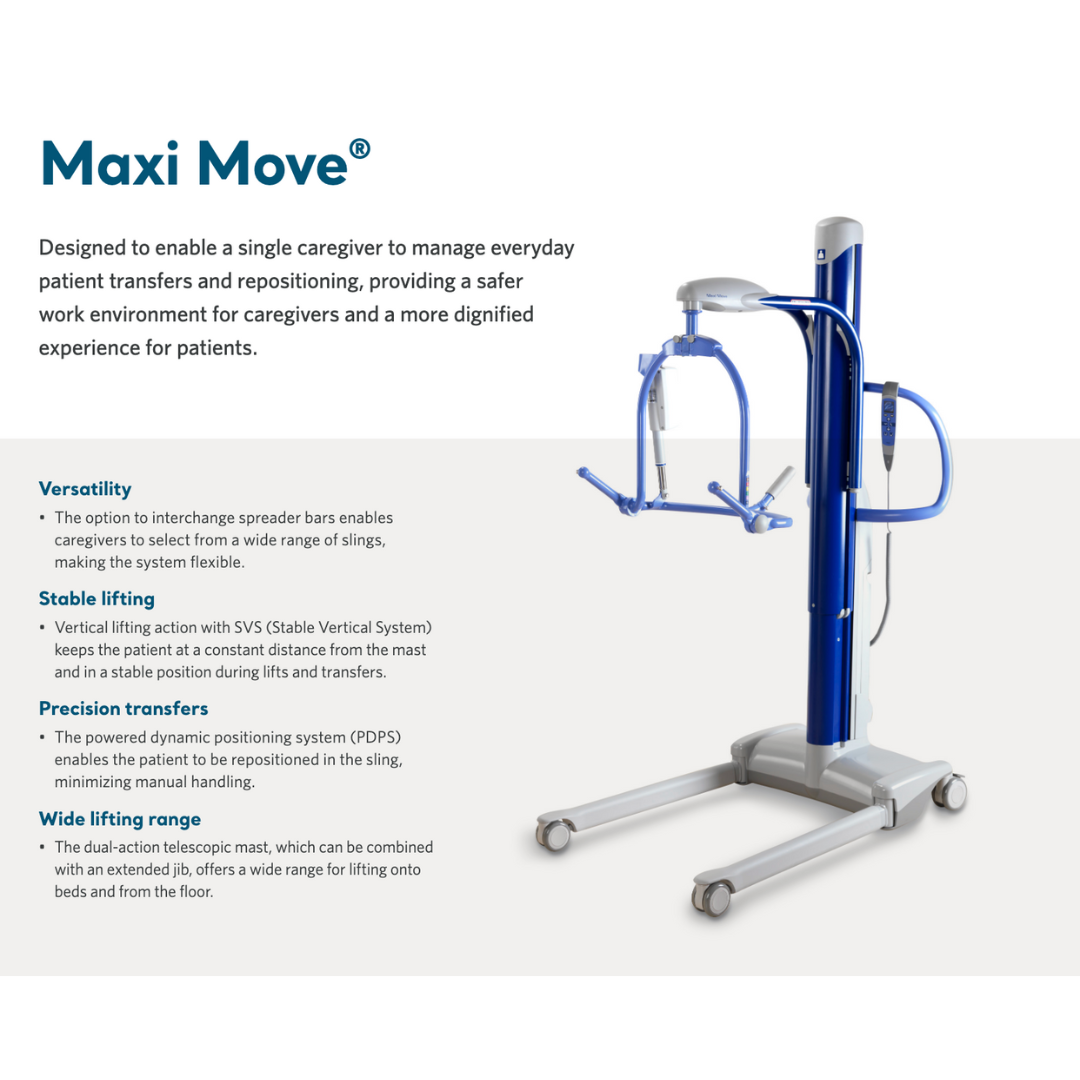

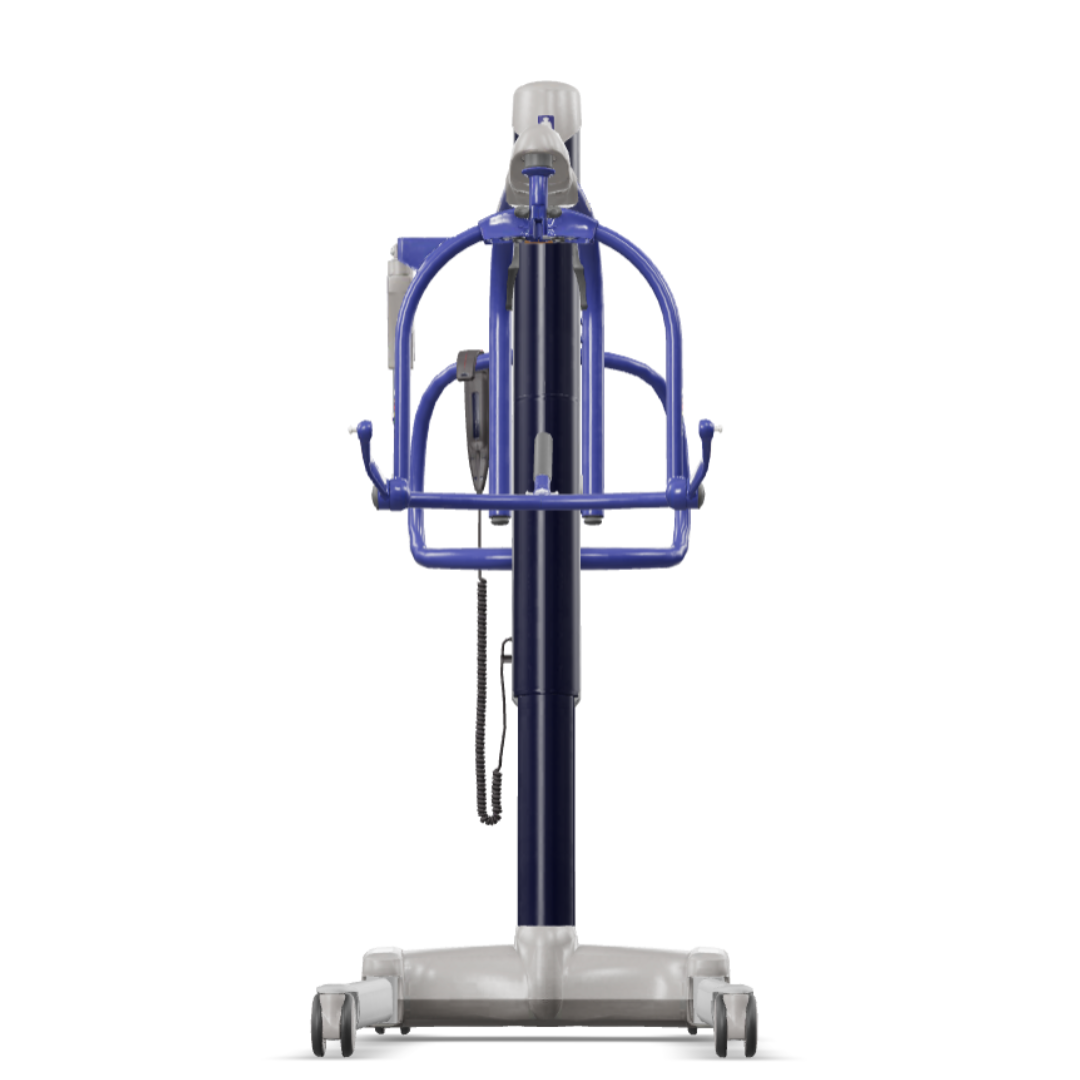

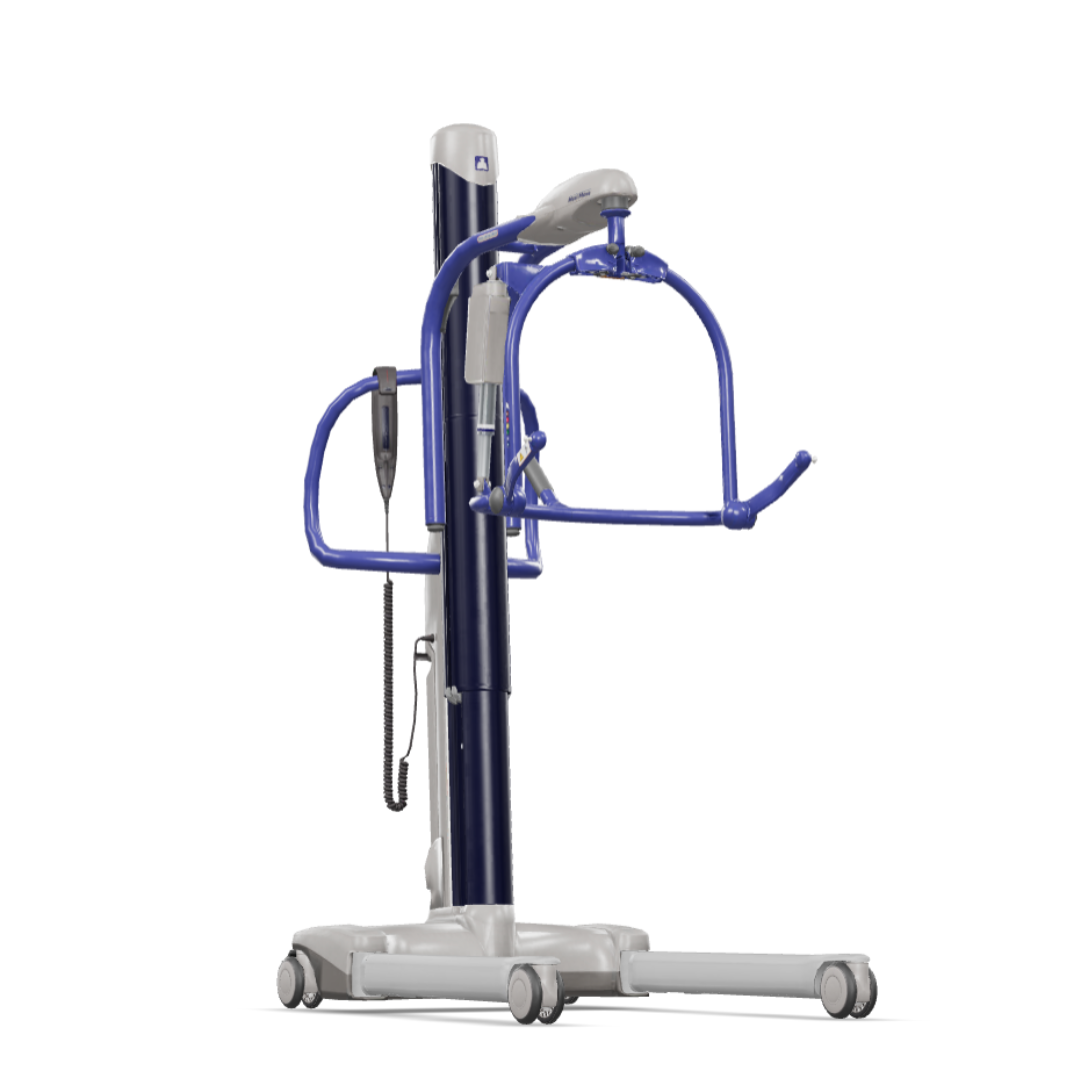

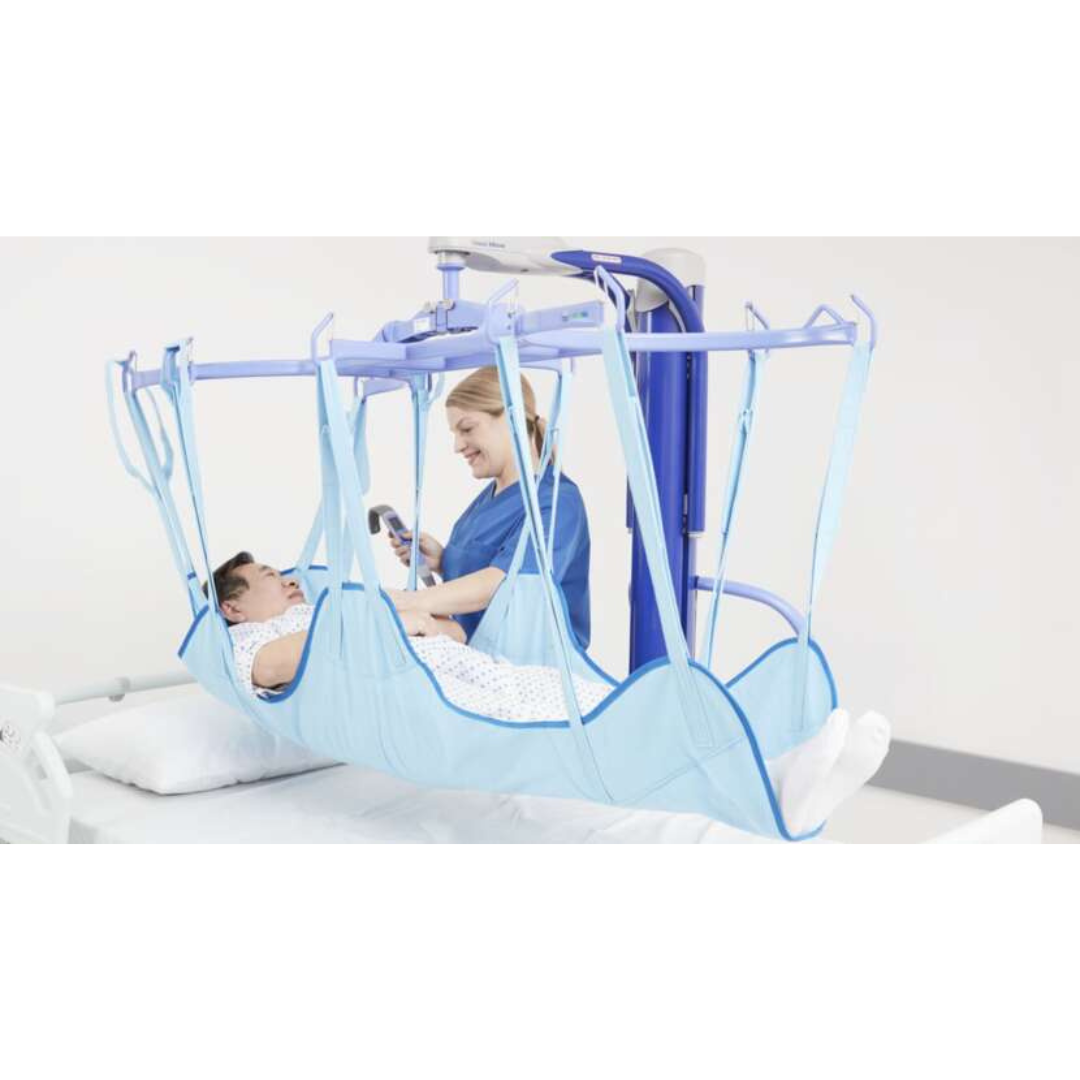

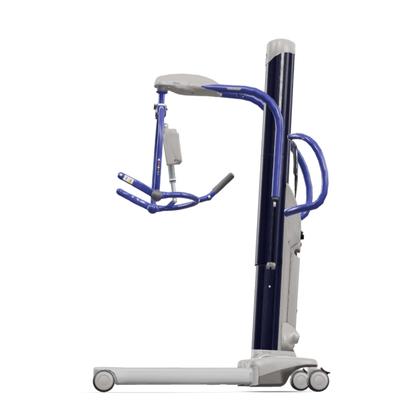

ARJO Maxi Move Electric Floor Lifter & All-Purpose Patient Lift

$9,349.00
$9,349.00 $12,699.00
Sale Sold out
This product’s estimated delivery is 4–7 days.

Low stock

Part Number: KMCSXN-D
View Product Details

Sara Standing & Rising Aids Comparison Chart

Specification Sara Flex Sara Stedy Sara Stedy Compact Sara Plus Sara Walker
General Dimensions
Maximum Safe Working Load440 lbs400 lbs400 lbs420 lbs300 lbs
Lift Weight (Including Battery)118 lbs64.8 lbs64.8 lbs173.5 lbs117 lbs
Minimum Storage Height45 ¾″41 5⁄16″37 13⁄16″47″45 7⁄8″
Minimum Lifting Height39″N/AN/A35 ⅝″N/A
Maximum Lifting Height59 ¾″N/AN/A58 ⅞″N/A
External Width (Legs Closed)26″19 5⁄16″19 5⁄16″25 7⁄16″33 ⅛″
External Width (Legs Open)40 ½″34 ⅝″34 ⅝″44″N/A
Internal Width (Legs Closed)20 ⅞″14 3⁄16″14 3⁄16″21″27 5⁄16″
Internal Width (Legs Open)35 ⅜″29 ½″29 ½″39 7⁄16″N/A
Leg Clearance (Floor to Top)4 ¼″3 15⁄16″3 15⁄16″4 ½″6 ½″
Chassis Clearance (Floor to Bottom)1″1 3⁄16″1 3⁄16″1 3⁄16″4 ⅞″
Lift Total Length39 3⁄16″36 3⁄16″35″40 ⅝″41″
Turning Radius47 ½″40 15⁄16″40 3⁄16″48 ⅝″52″
General Features & Electrical Specifications
Lift Protection ClassIP24N/AN/AIPX4IPX4
Hand Control Protection ClassIPX7N/AN/AIPX7N/A
Battery TypeRechargeable Sealed Lead AcidN/AN/ARechargeable Sealed Lead AcidRechargeable Sealed Lead Acid
Battery Capacity24V DC 4AhN/AN/A24V DC 6Ah24V DC 4Ah
Battery Charge IndicatorYesN/AN/AYesBuzzer Sound Indicator
Integrated ScaleOptionalNoNoOptionalN/A
Scale Power SourceUses Lift BatteryN/AN/AUses Lift BatteryN/A
Car Extraction CapabilityNoNoNoNoNo
Approvals / CertificationsIEC 60601-1 / ISO 10535EN ISO 10535EN ISO 10535IEC 60601-1 / ISO 10535IEC 60601-1 / ISO 10535
Maximum Sound Power Level50 dBAN/AN/A74 dBA65 dBA

Passive Floor Lifts Comparison Chart

Specification Maxi Move Maxi 500 Maxi Twin Maxi Twin Compact Minstrel Tenor
General Dimensions
Maximum Safe Working Load500 lbs500 lbs400 lbs350 lbs419 lbs704 lbs
Safe Working Load (Extended Jib)287 lbsN/AN/AN/AN/AN/A
Lift Weight (Incl. Battery & Spreader Bar)154 lbs126 lbs126 lbs103 lbs123 lbs152 lbs
Maximum Lifting Height62″73 ¼″57 9⁄16″54 ⅛″78 ¾″73 3⁄16″
Minimum Lifting Height8 ¾″25 ⅝″9 1⁄16″11 ⅜″24 ½″23 ⅝″
Lifting Stroke53 ⅛″47 ⅝″48 ½″42 ½″54 ⅛″49 ½″
Minimum Storage Height55 ¼″52″54″44 ¼″52 ⅜″57 ⅞″
External Width (Legs Closed)28 ¼″26 ¾″29 ¾″26″24 ⅜″29 ⅜″
External Width (Legs Open)47 ⅛″42 ½″54″43 ½″46 ½″49 ¼″
Internal Width (Legs Closed)22 ¾″21 ⅝″24 ⅞″20 ½″21 ½″24 ½″
Internal Width (Legs Open)42 ¼″37 ⅜″48 ½″38″42 ½″45 ⅝″
Leg Clearance (Floor to Top of Legs)4 ½″ (std)4″ (low)2 ¼″ (extra low)4 ¾″4 ½″4 3⁄32″
Chassis Clearance (Floor to Bottom)1″1 ⅛″1 ¼″1 ¼″1 ¾″13⁄16″
Lift Total Length44″44 ⅞″51 ⅛″43″50 ¼″58 ½″
Turning Diameter48″52 ⅜″56 ⅝″51 ½″55 15⁄16″65″
General Features & Electrical Specifications
Lift Protection ClassIPX4IP24IP24IP24IPX4IPX4
Hand Control Protection ClassIPX7IPX7IPX7IPX7IPX7IPX7
Battery24V 4Ah24V 4Ah24V 2.5Ah NiMH24V 2.5Ah NiMH24V 4Ah24V 4Ah
Battery Charge IndicatorYesYesYesYesYesYes
Service Meter (Usage Time)YesYesN/AN/AYesYes
Emergency Stop / OverrideYesYesYesYesYesYes
Automatic Safety Cut-OutYesYesYesYesYesYes
Low Friction Castors w/ BrakesYesYesYesYesYesYes
Maximum Sound Power Level61.9 dBA50 dBA49 dBA49 dBA53 dBA71 dBA
Floor Pickup CapabilityYesYesYesYesYesYes
Car ExtractionNoNoNoYesNoNo
Approvals / CertificationsIEC 60601-1 / ISO 10535IEC 60601-1 / ISO 10535IEC 60601-1 / ISO 10535IEC 60601-1 / ISO 10535IEC 60601-1 / ISO 10535IEC 60601-1 / ISO 10535
