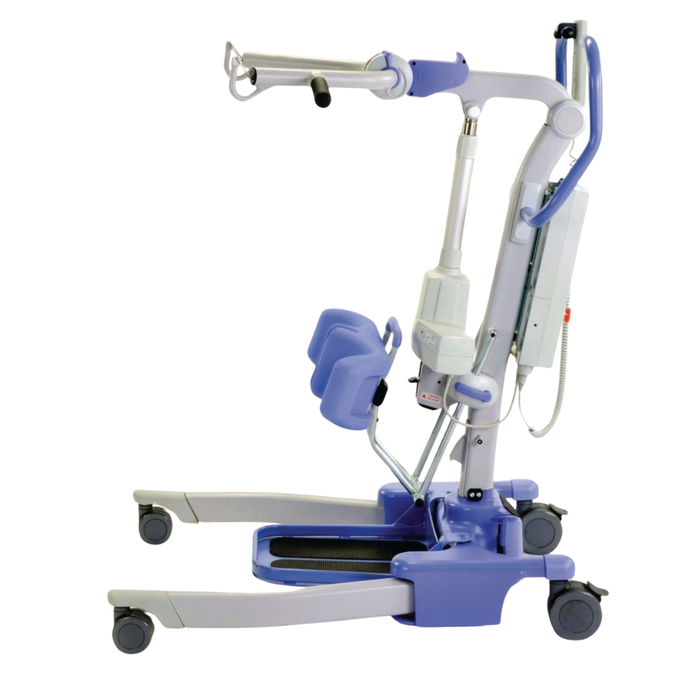

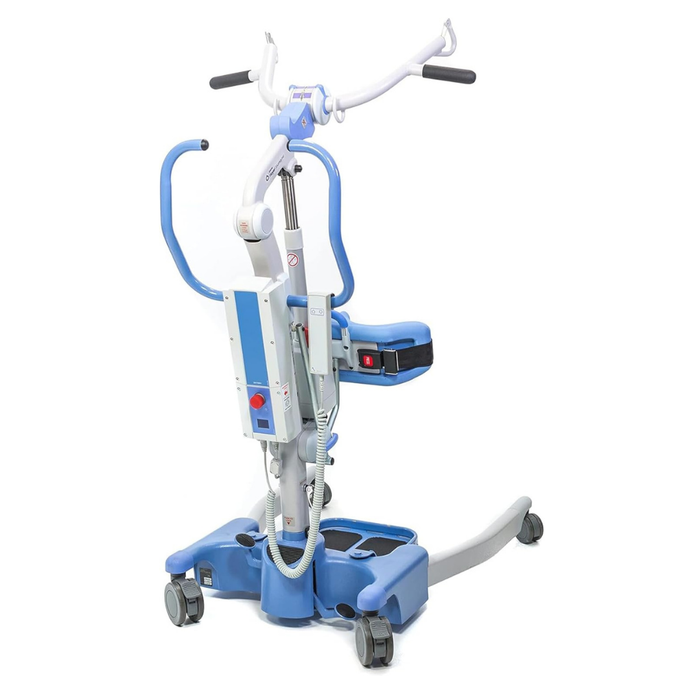

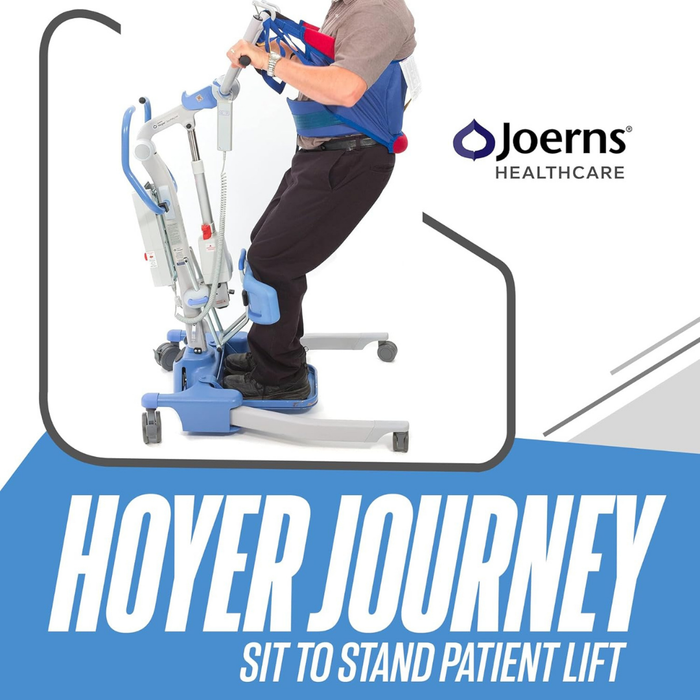

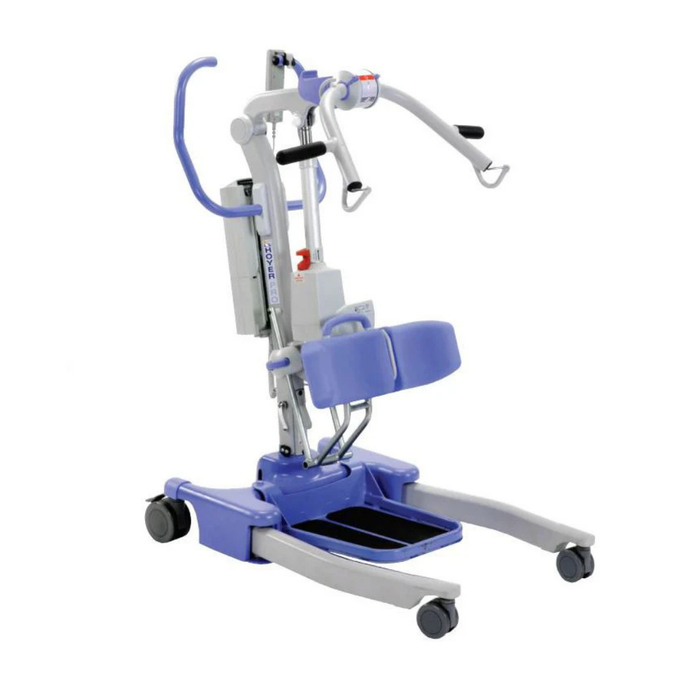

Joerns Hoyer Journey® Sit-To-Stand Folding Electric Patient Lift

The Journey® lift is an ultra-compact, portable folding stand aid designed for exceptional functionality and convenience. Lightweight and easy to maneuver, it’s ideal for navigating tight spaces and folds quickly for storage or transport. Featuring the first adjustable sling attachment cradle on the market, it accommodates a wide range of patient heights and body types—making it a versatile solution for diverse care settings. Thoughtfully engineered, the Journey lift prioritizes both caregiver efficiency and patient comfort, ensuring a safe and supportive experience for all.

Key Features:

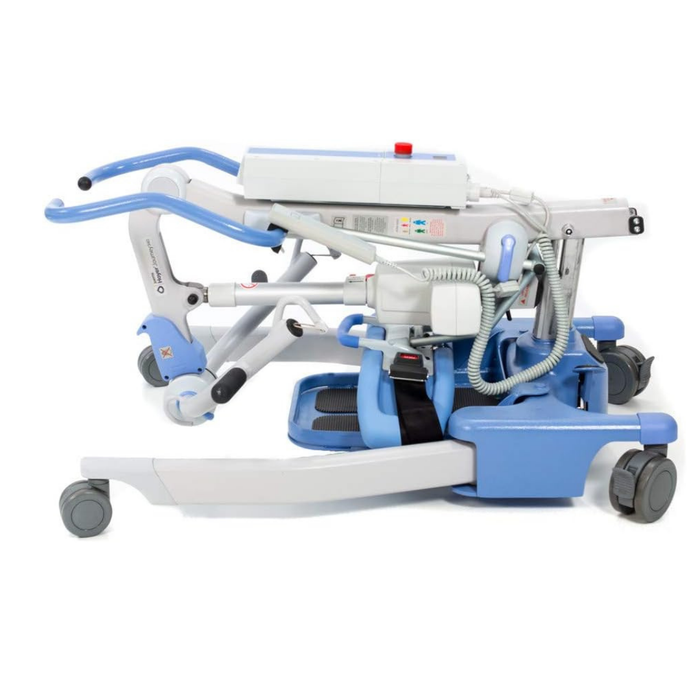

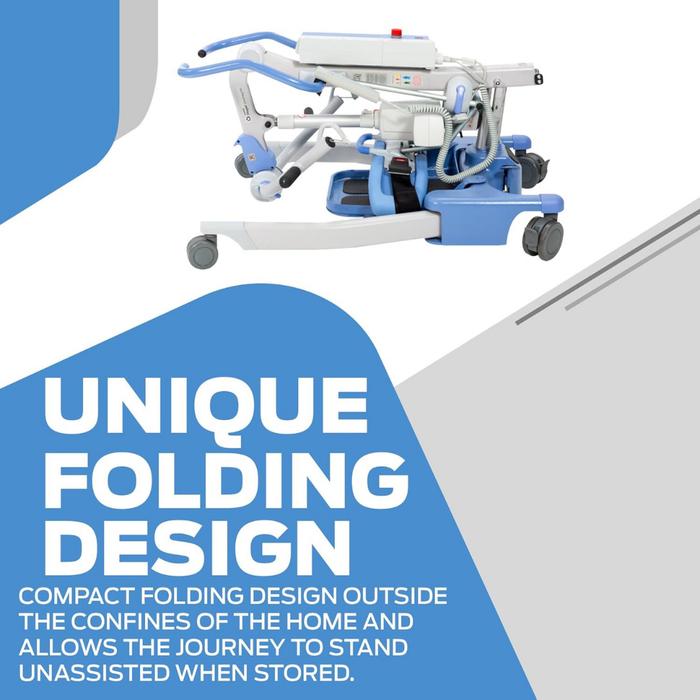

• Tool-Free Folding Design: Easily folds for compact storage and hassle-free transport.

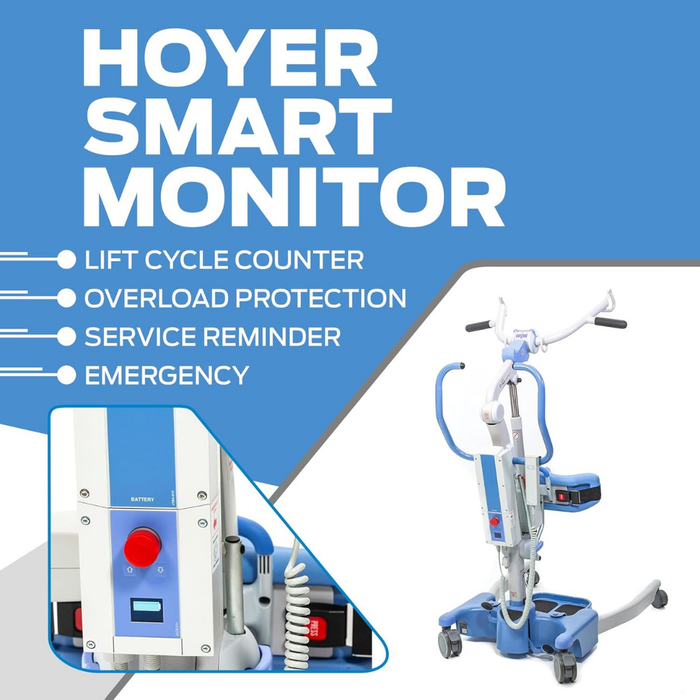

• Smart Monitor Technology: Promotes proper usage and extends lift lifespan through real-time feedback.

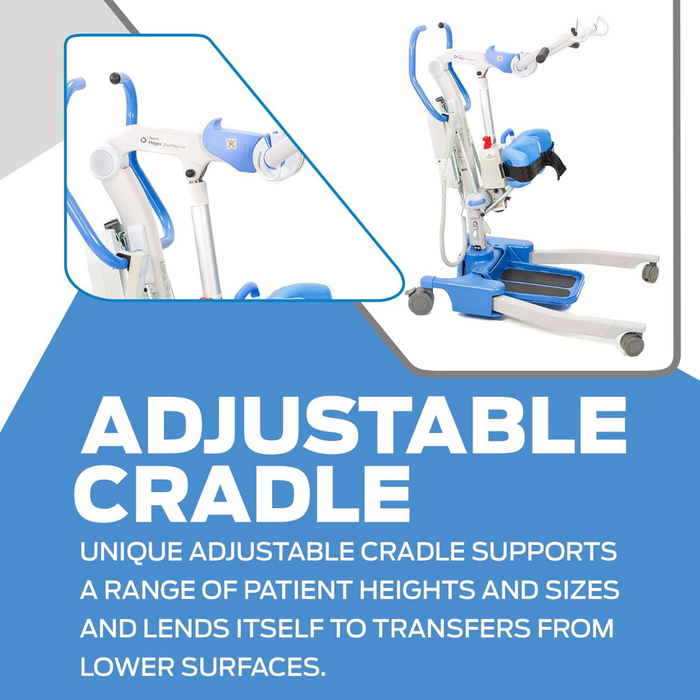

• Adjustable Cradle: Accommodates users of varying heights for greater versatility and comfort.

• Intuitive Push Pad: Helps caregivers initiate movement with minimal effort.

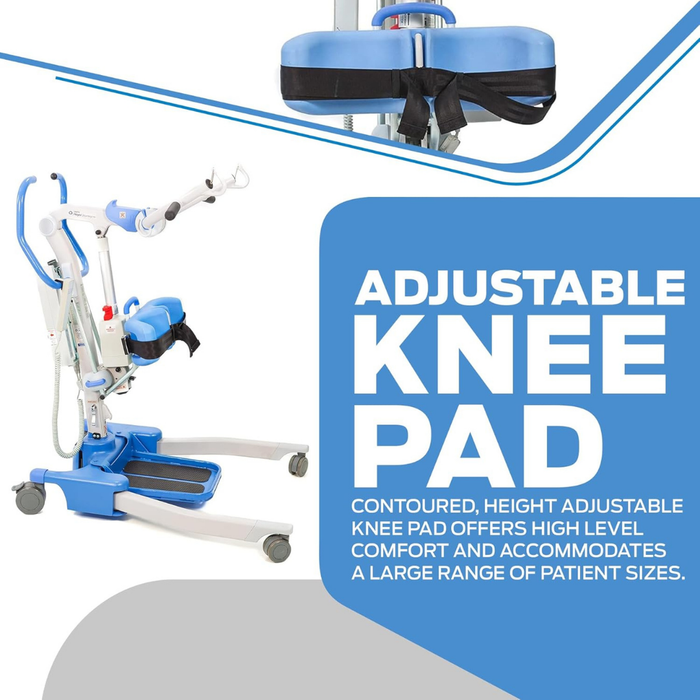

• Fully Adjustable Kneepad: Features infinite settings for customized support and positioning.

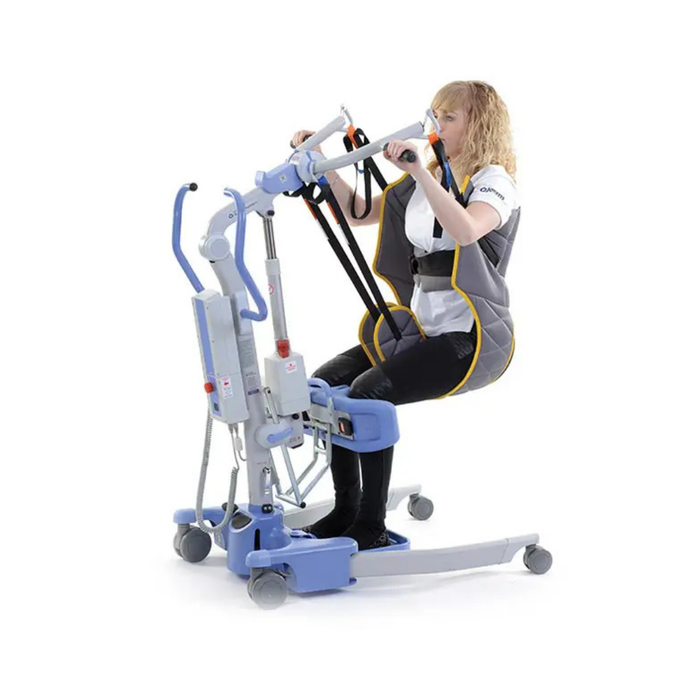

• Multiple sling options are sold separately


Additional Specs:

• Safe Working Load: 340 lbs

• Maximum Height to Attachment Point: 60.2 in

• Legs (Open – Inside Dimension): 34.5 in

• Legs (Closed – Outside Dimension): 27 in

• Overall Leg Height: 4.3 in

• Folded Dimensions: Refer to user manual for details

• Power System: Includes two (2) batteries and an offboard charger

• Base Adjustment: Foot pedal-operated base opening

• Standards Compliance: Tested to EN ISO 10535, the global benchmark for patient lifts

Specifications

• Safe Working Load: 341 lbs / 155 kg

• Maximum Overall Length: 39.4 in / 1000 mm

• Minimum Overall Length: 36.8 in / 935 mm

• Maximum Overall Height: 63.0 in / 1600 mm

• Minimum Overall Height: 44.5 in / 1130 mm

• Maximum Height to Attachment Point: 60.2 in / 1530 mm

• Minimum Height to Attachment Point: 28.4 in / 720 mm

• Turning Radius: 45.1 in / 1145 mm

• Safety Standard: Tested to EN ISO 10535, the global standard for patient lifts

Sling Guide

Videos

Downloads

Download The User Manual

Warranty

Warranty Coverage

This warranty applies to HoyerPro® Lifts only. It does not cover other models such as HML400, HPL700, HPL700WSC, HPL402, C-HLA, and their variations.

• Mechanical & Electrical Components: Covered for two years from the date of delivery under normal use and service.

• Aluminum Structural Components & Welds: Covered for the lifetime of the product from the delivery date.*

  *Subject to standard warranty exclusions below.

Exclusions

This warranty does not cover:

• Damage due to improper environmental conditions

• Failure to maintain the product per user/service instructions

• Unauthorized modifications, repairs, or alterations

Parts Coverage

• Wear Items (e.g., batteries, casters, hydraulic pumps): Covered for 90 days from date of delivery

• Warranty replacement parts: Covered until the expiration of the product’s original warranty period

• Return of parts for inspection is required upon request (customer expense). Credit issued upon inspection approval.

Service Support

• Most service issues can be resolved by the facility’s Maintenance Department with guidance from Joerns Healthcare’s Product Service Team.

• Parts are available and can be shipped next-day air (shipping charges apply).

• If an on-site technician is needed, Joerns Healthcare may dispatch one at its discretion. Only our Product Service Department may authorize service calls.

This warranty is extended to the original purchaser of the equipment.
